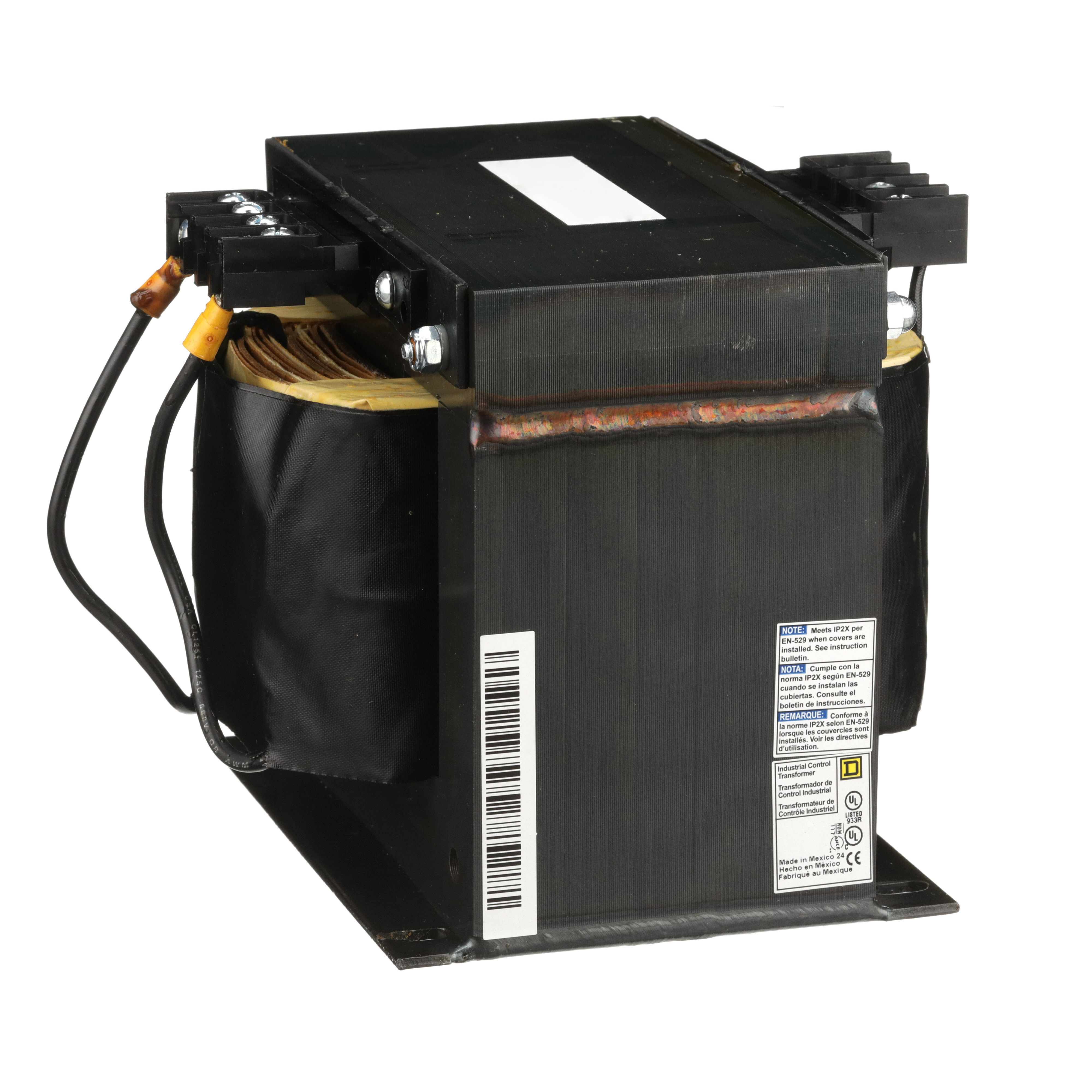

Square D™ 9070T2000D15 TRFMR CONTROL 2000
SKU791040
MFGR #9070T2000D15
Your Cost: $1,955.85/ea
Square D 9070T2000D15 TRFMR CONTROL 2000VA 240/480V-24/120V,1-Phase,180 deg.C,2000VA,24/120V,240x480V,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Square D 9070T2000D15 TRFMR CONTROL 2000VA 240/480V-24/120V,1-Phase,180 deg.C,2000VA,24/120V,240x480V,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
Alternate Catalog Number 9070T2000D15 Application FSC2 ARRA Compliant N Buy American Compliant N Catalog Number 9070T2000D15 Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 7.06 in W x 7.17 in D x 6.17 in H Enclosure NOT RATED (OPEN DEVICE) Enclosure Type Open EU RoHS Indicator Y Gross Weight Per Pack 49.3000 lb Gross Weight per Pack Metric 22.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 27.9400 in Height [Metric] 27.9400 cm Insulation Class 115 Item Group 16201 KVA Rating 2000 VA,2000 VA UL-2000 VA CSA-2000 VA NOM-1500 VA CE Length 36.0430 in Length [Metric] 36.0430 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452711&lang=en-us Mounting Panel Mounting Type Panel Returnable N Series 9070 Standard CSA FILE LR37055 GUIDE 184-N-90-CE-UL LISTED FILE E61239 Temperature Rating 115 °C Type Type T UNSPSC 39121002 UPC 11 78590160768 UPC 12 785901607687 Warranty Description Contractual Warranty:10 Years Width 28.5750 in Width [Metric] 28.5750 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 50/60 Hz Phase 1 pH Power Rating 2000 VA Primary Voltage 230/460 VAC Secondary Voltage 24/120 VAC FSC2 INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes Copper winding
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9070T2000D15 |
| Application | FSC2 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9070T2000D15 |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7.06 in W x 7.17 in D x 6.17 in H |
| Enclosure | NOT RATED (OPEN DEVICE) |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 49.3000 lb |
| Gross Weight per Pack Metric | 22.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 27.9400 in |
| Height [Metric] | 27.9400 cm |
| Insulation Class | 115 |
| Item Group | 16201 |
| KVA Rating | 2000 VA,2000 VA UL-2000 VA CSA-2000 VA NOM-1500 VA CE |
| Length | 36.0430 in |
| Length [Metric] | 36.0430 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=452711&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | N |
| Series | 9070 |
| Standard | CSA FILE LR37055 GUIDE 184-N-90-CE-UL LISTED FILE E61239 |
| Temperature Rating | 115 °C |
| Type | Type T |
| UNSPSC | 39121002 |
| UPC 11 | 78590160768 |
| UPC 12 | 785901607687 |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 28.5750 in |
| Width [Metric] | 28.5750 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 2000 VA |
| Primary Voltage | 230/460 VAC |
| Secondary Voltage | 24/120 VAC |
| FSC2 |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes |
| Copper winding |
