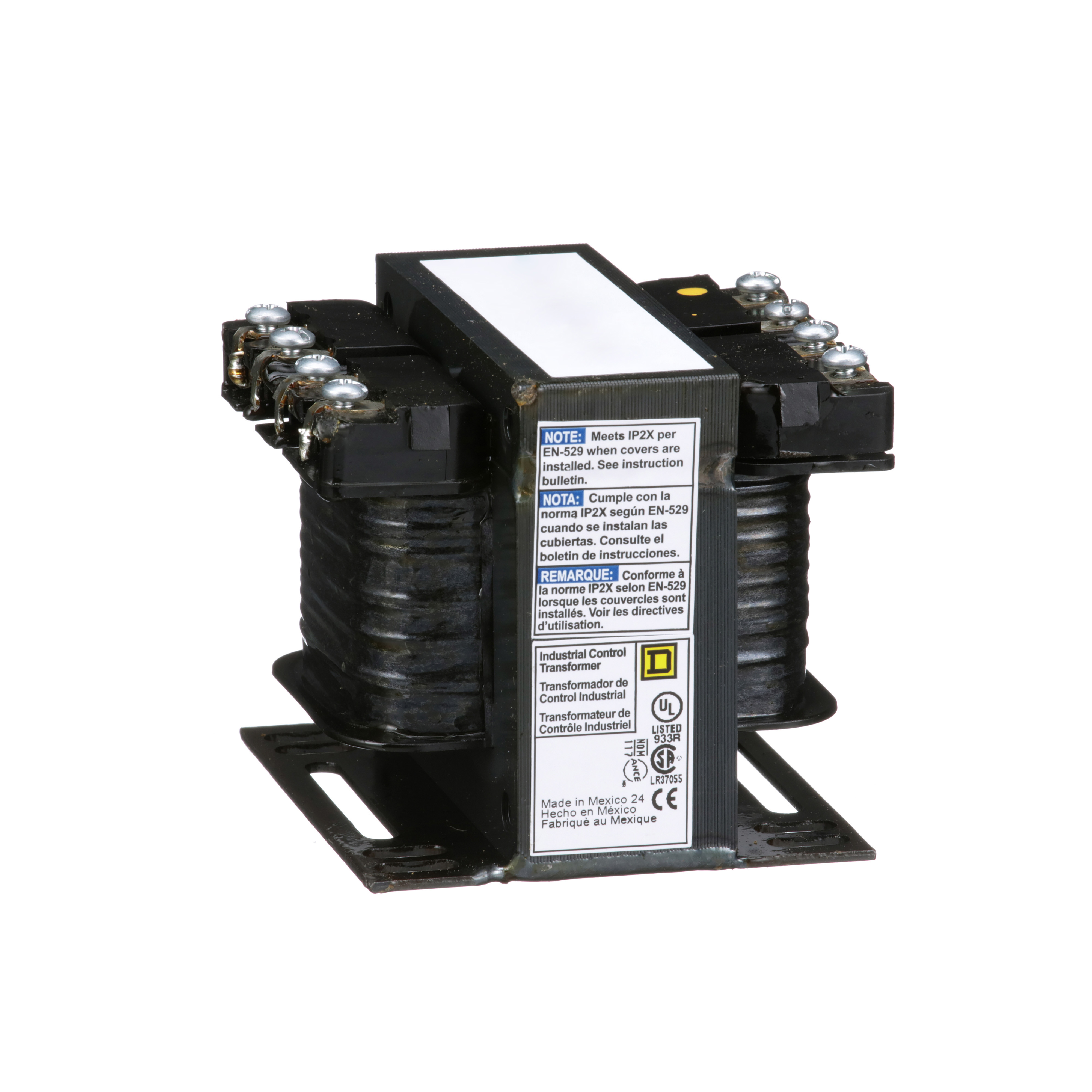

Square D™ 9070T100D33 Type T Open Style Control Transformer, 415 VAC Primary, 115/230 VAC Secondary, 100 VA, 50/60 Hz
Control Transformers
348641
MFG #: 9070T100D33
Square D™
249.00000
/ ea
Square D 9070T100D33 XFMR CONTROL 100VA MULTIPLE VOLTAGES,1-Phase,100VA,105 Degrees C,115/230V,380/400/415V,55 Degrees C,Copper,Industrial Control Transformer,Open,Panel,Screw Clamp,Specifically designed to handle high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes,UL Listed, CSA, CE Marked
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8082143360Den&ext=webp(360 Degree View URL)
- Brochure URL - f361bd753dada4338ce3860cc8214a3391b93bb8.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_029c12af1a703576ffe19f403f1492d2c42bc2427b3f41968acaab12e1057c40.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=5846.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_R1LX5W8EN3ZTVP4B.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_IP5O170BWUXVNHC6.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_5HFWBRTQLNXSD207.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_7E1FTBY2Q5IZ4KGN.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_27YQPAGEDNW53ZHV.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_G7WF1ZK6AVIHSB9J.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/c35mQsPEA58(Video)
- Applications
- Features
| SPECIFICALLY DESIGNED TO HANDLE HIGH INRUSH ASSOCIATED WITH CONTACTORS AND RELAYS FOR APPLICATIONS SUCH AS CONVEYOR SYSTEMS, PAINT LINES, PUNCH PRESSES OR OVERHEAD CRANES |
| INDUSTRIAL CONTROL TRANSFORMER,COPPER WINDING,SCREW CLAMP TERMINALS |
| Designed with low impedance windings for excellent voltage regulation |
| Can accommodate the high inrush current associated with contactor, starters, solenoid and relays |
| Comes with unmatched design innovations for top performance |
| Manufactured using the most advanced insulating material and is best choice if size and cost are of concern |
| Copper winding |
| 380/400/415 VAC primary voltage rating |
