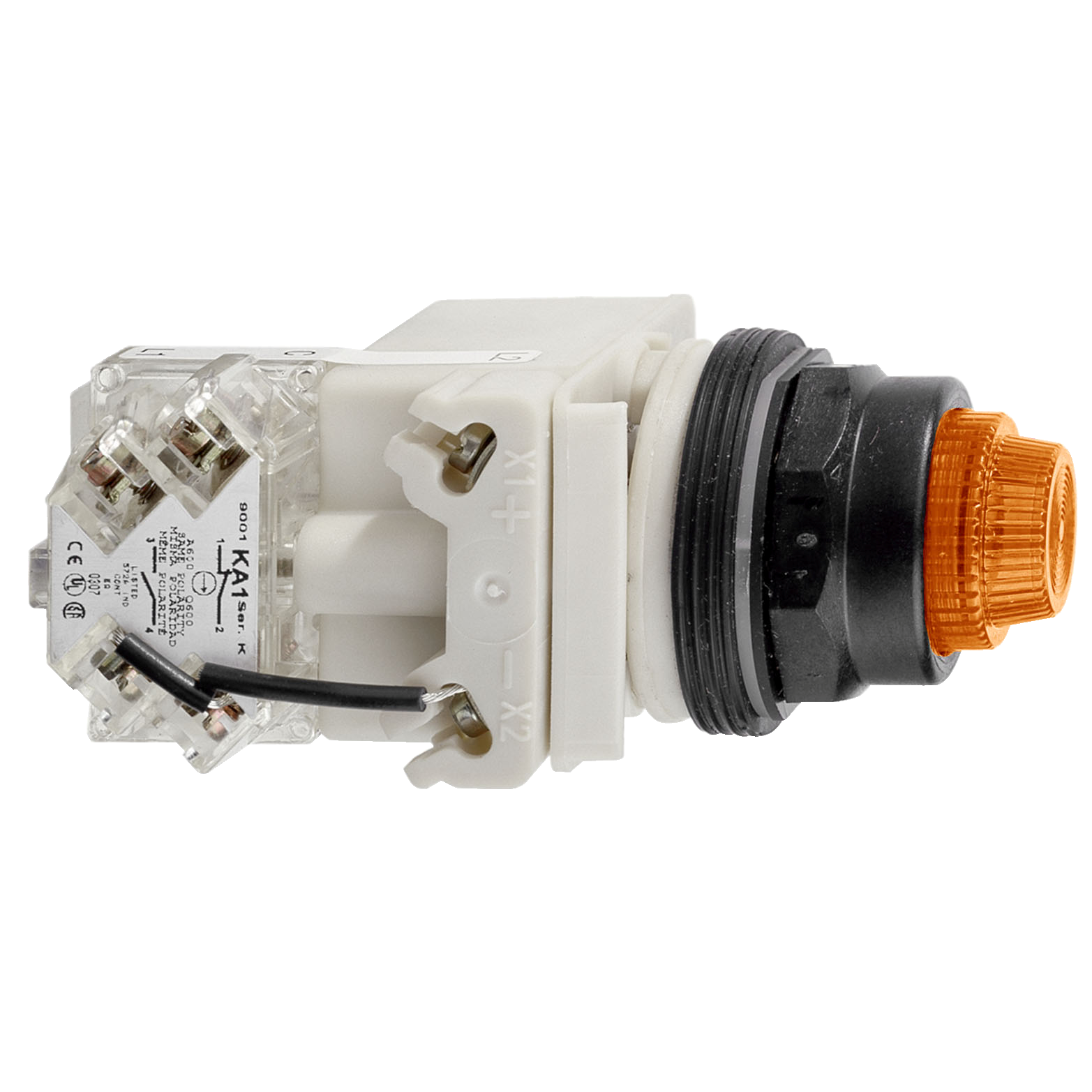

Square D™ 9001SKT35LYA31 PILOT LIGHT 28V
Pilot Lights
PDW~6441823
MFG #: 9001SKT35LYA31
Square D™
197.00000
/ ea
Schneider Electric,PILOT LIGHT 28V 30MM SK +OPTIONS,30mm,Amber,Black Plastic,Harmony,LED (Yellow) 24/28V,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pilot Light,Push-To-Test,Round,Signalling,UL listed,CSA,CE
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=9001BR1001_30mmPushButtons.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_12298800a20ab14d251012dfd03b272c64e6f12448248e11314caf8654fb215f.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001SKT35LYA31_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=65013-002-51.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- ROHS Compliance URL - Schneider_Electric_9001SKT35LYA31_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - files?p_enDocType=End of life manual&p_File_Name=ENVEOLI121109EN_V0.pdf(Service Manual URL)
- Spec Sheet URL - 9001SKT35LYA31(Spec Sheet URL)
- Tech Drawing URL - sales?sn=9001SKT35LYA31(Tech Drawing URL)
- Applications
- Features
| SIGNALLING |
| IP66 CONFORMING TO IEC 60529 |
| This Schneider electric Harmony™ 9001SK push-to-test illuminated amber pilot light with integral LED and plastic fresnel is supplied with 24 VAC/VDC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Energy efficient, long life LED lamps |
| Full size and shallow depth light modules |
