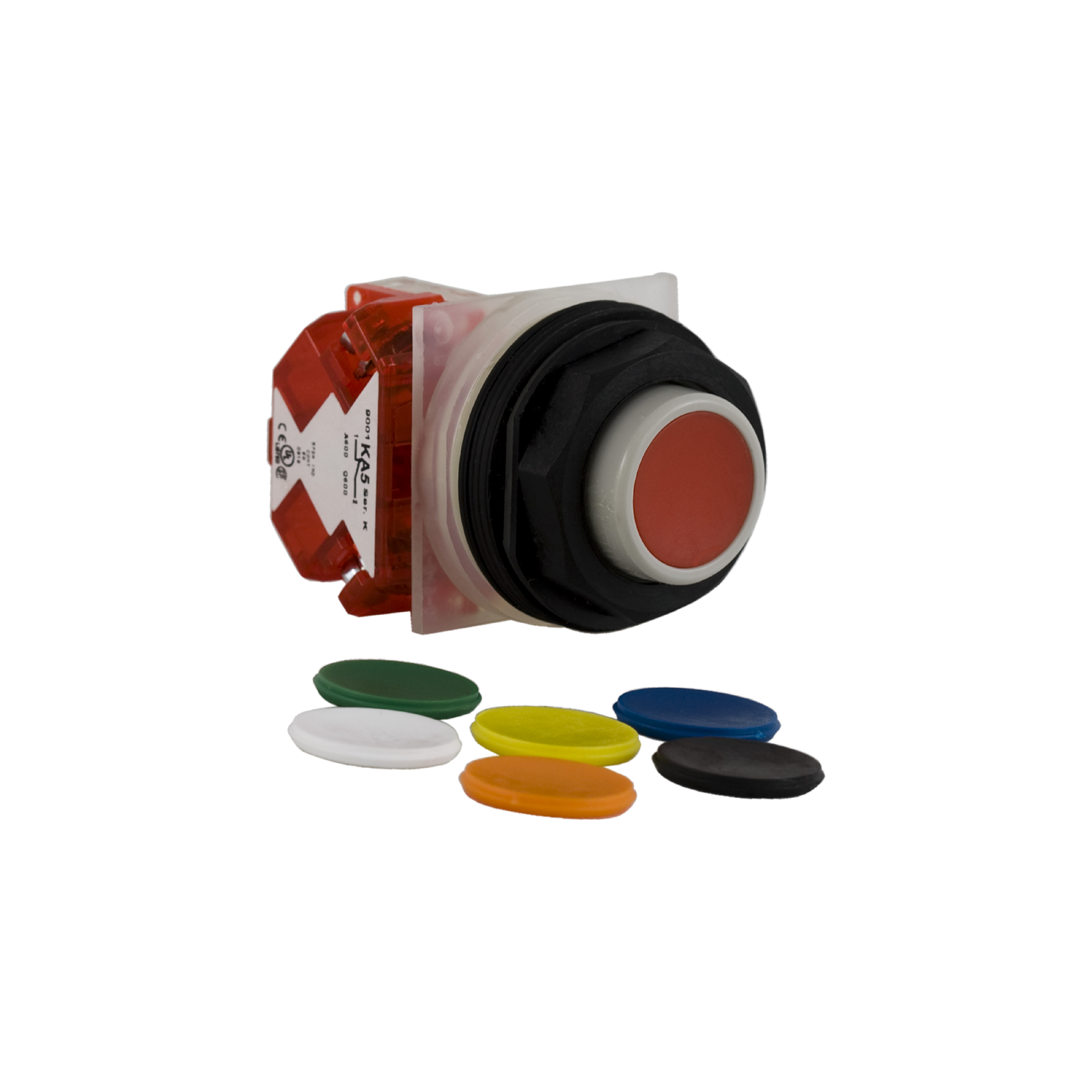

Square D™ 9001SKR3UH6 PUSHBUTTON 600VAC 1
SKUPDW~6441436
MFGR #9001SKR3UH6
Your Cost: $64.59/ea
List: Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Action Standard Actuator 7 colours choice projecting; spring return Alternate Catalog Number 9001SKR3UH6 Amperage Rating 10 A ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number 9001SKR3UH6 Connection Screw Clamp Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure NEMA 1/2/3/3R/4/4X/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 15.47 Gross Volume per Pack Metric 253.44 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0007 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509065 Height 4.8300 in Height [Metric] 4.8300 cm Item Group 21429 Length 9.4000 in Length [Metric] 9.4000 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=496329&lang=en-us Mounting Panel Mounting Type Panel Returnable Y Series 9001SK Standard IP66,UL 508-EN/IEC 60947-1-JIS C 4520-EN/IEC 60947-5-1-JIS C 852-CSA C22.2 NO 14-EN/IEC 60947-5-4 Sub Brand 9001SK Substitute Product Catalog Number 9001KA5 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked UNSPSC 39122216 UPC 11 78590104277 UPC 12 785901042778 Voltage Rating 600 V Warranty Description Contractual Warranty:18 months Width 5.5900 in Width [Metric] 5.5900 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1NC Contact Type Slow Break Operator Type Spring Return Size 30 mm WITHOUT GUARD Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations Without guard
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | 7 colours choice projecting; spring return |
| Alternate Catalog Number | 9001SKR3UH6 |
| Amperage Rating | 10 A |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKR3UH6 |
| Connection | Screw Clamp |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 15.47 |
| Gross Volume per Pack Metric | 253.44 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0007 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 4.8300 in |
| Height [Metric] | 4.8300 cm |
| Item Group | 21429 |
| Length | 9.4000 in |
| Length [Metric] | 9.4000 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=496329&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | Y |
| Series | 9001SK |
| Standard | IP66,UL 508-EN/IEC 60947-1-JIS C 4520-EN/IEC 60947-5-1-JIS C 852-CSA C22.2 NO 14-EN/IEC 60947-5-4 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| UNSPSC | 39122216 |
| UPC 11 | 78590104277 |
| UPC 12 | 785901042778 |
| Voltage Rating | 600 V |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.5900 in |
| Width [Metric] | 5.5900 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NC |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 30 mm |
| WITHOUT GUARD |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
| Without guard |
