Square Dā¢

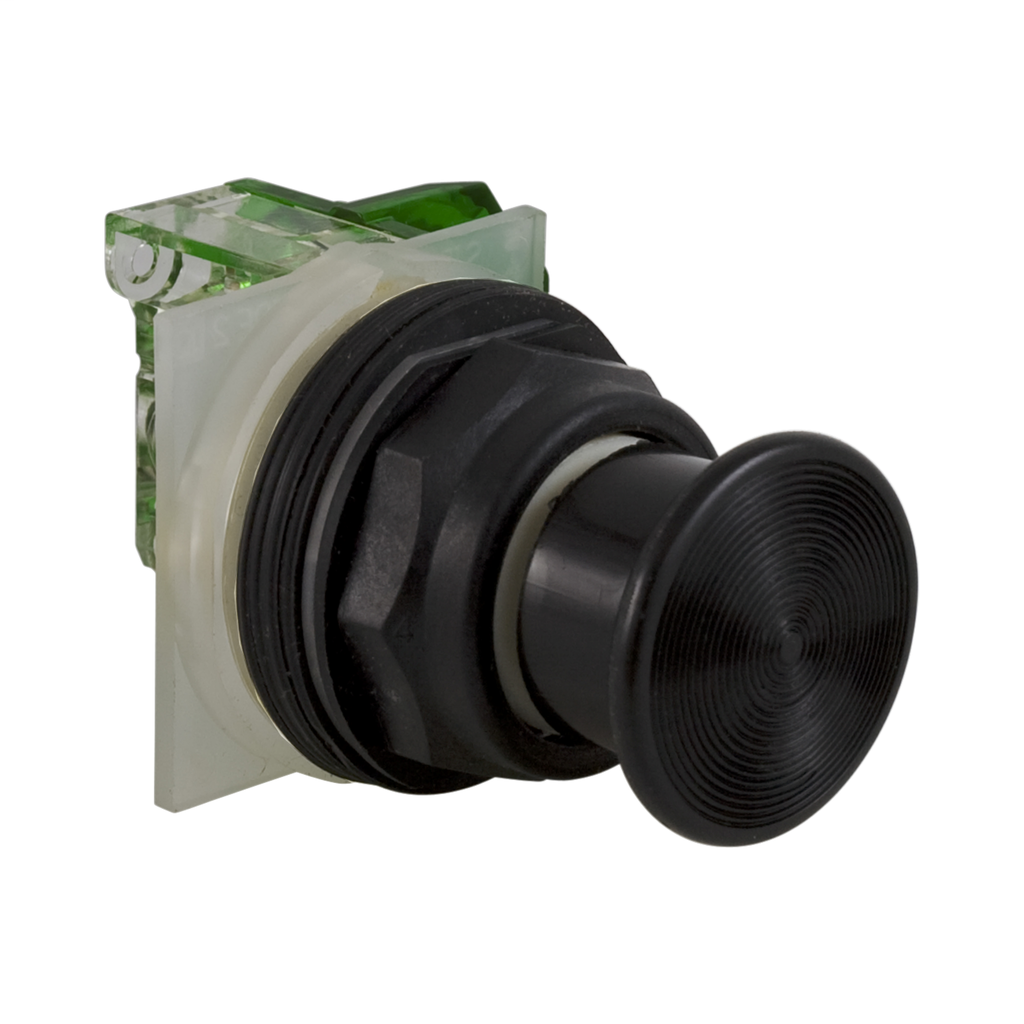

Square Dā¢ 9001SKR24BH5 PUSHBUTTON 600VAC
Custom_Product_Images_Illustration
Square Dā¢
Square Dā¢ 9001SKR24BH5 PUSHBUTTON 600VAC
SKUPDW~6441397
MFGR #9001SKR24BH5
$/ea
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,30 mm,black plastic,unmarked,momentary
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,30 mm,black plastic,unmarked,momentary
Action Standard Actuator BLACK MUSHROOM ĆĖ 35 MM,SPRING RETURN ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number 9001SKR24BH5 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure NEMA 1/2/3/3R/4/4X/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Environmental Conditions -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Harmonization Tariff Schedule Code 8536509065 Item Group 21429 Mounting Type Panel Returnable Y Series 9001SK Standard IP66,JIS C 4520-JIS C 852-CSA C22.2 NO 14-UL 508-EN/IEC 60947-1-EN/IEC 60947-5-1-EN/IEC 60947-5-4 Sub Brand 9001SK Substitute Product Catalog Number 9001KA5 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked UNSPSC 39122216 UPC 11 78590149546 UPC 12 785901495468 Stock Status NONSTOCK Brand Square Dā¢ Manufacturer Schneider Electric Color Black Contact Configuration 1NO Contact Type Slow Break Operator Type Spring Return Size 30 mm SCREW-IN WITH SET SCREW SECURITY Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | BLACK MUSHROOM ĆĖ 35 MM,SPRING RETURN |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKR24BH5 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
| Environmental Conditions | -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Harmonization Tariff Schedule Code | 8536509065 |
| Item Group | 21429 |
| Mounting Type | Panel |
| Returnable | Y |
| Series | 9001SK |
| Standard | IP66,JIS C 4520-JIS C 852-CSA C22.2 NO 14-UL 508-EN/IEC 60947-1-EN/IEC 60947-5-1-EN/IEC 60947-5-4 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA5 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Mechanically Interlocked |
| UNSPSC | 39122216 |
| UPC 11 | 78590149546 |
| UPC 12 | 785901495468 |
| Stock Status | NONSTOCK |
| Brand | Square Dā¢ |
| Manufacturer | Schneider Electric |
| Color | Black |
| Contact Configuration | 1NO |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 30 mm |
| SCREW-IN WITH SET SCREW SECURITY |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
