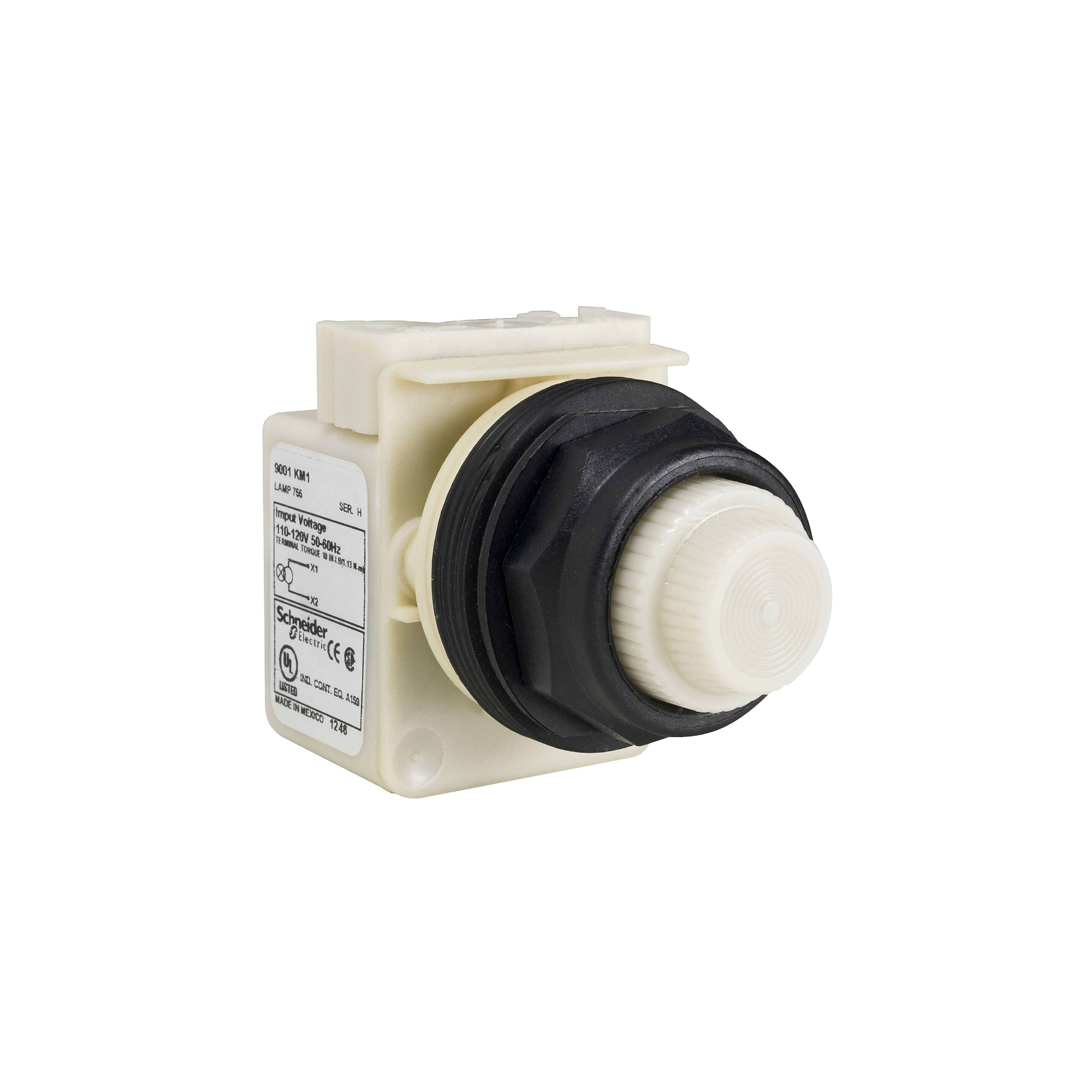

Square D™ 9001SKP7W31 PILOT LIGHT 240VAC
SKUPDW~6441300
MFGR #9001SKP7W31
Price Not Available
Schneider Electric,PILOT LIGHT 240VAC 30MM SK +OPTIONS,30mm,9001SK,BA 9s,Harmony 9001SK,NEMA 12-NEMA 1-NEMA 2-NEMA 3-NEMA 13-NEMA 4X-NEMA 4-NEMA 3R,Panel,UL,CSA,CE,White,complete pilot light,incandescent,plastic,round
Schneider Electric,PILOT LIGHT 240VAC 30MM SK +OPTIONS,30mm,9001SK,BA 9s,Harmony 9001SK,NEMA 12-NEMA 1-NEMA 2-NEMA 3-NEMA 13-NEMA 4X-NEMA 4-NEMA 3R,Panel,UL,CSA,CE,White,complete pilot light,incandescent,plastic,round
Alternate Catalog Number 9001SKP7W31 Application 9001SK ARRA Compliant N Base BA 9s Base Type BA9s Bezel|Housing Black Plastic Buy American Compliant N Catalog Number 9001SKP7W31 Color White Connection Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 Country of Origin MX Currency USD Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Finish Plastic Fixture Type Incandescent Gross Weight Per Pack 1.7100 lb Gross Weight per Pack Metric 171.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8531809026 Height 5.0800 in Height [Metric] 5.0800 cm Illumination Type incandescent Item Group 21429 Lamp Type Incandescent Length 8.8900 in Length [Metric] 8.8900 cm Lens Color White Lens Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=495463&lang=en-us Mounting Panel Operating Temperature -25-70 A°C Returnable N Series 9001SK Shape Round Size 30 mm Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C8201-5-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508-JIS C 852-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C8201-1,UL 508-NEMA,CLASS II IEC 61140 Style Style 9 Sub Brand 9001SK Substitute Product Catalog Number 9001KA2 Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Standard Transformer UNSPSC 39121534 UPC 11 78590184377 UPC 12 785901843771 Warranty Description Contractual Warranty:18 months Width 5.0800 in Width [Metric] 5.0800 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Lens Type Fresnel Mounting Type Panel Voltage Rating 220 to 240 VAC Wattage 2 VA 9001SK IP66 CONFORMING TO IEC 60529 This Schneider electric Harmony™ 9001SK white pilot light with transformer and plastic fresnel is supplied with 240 VAC It fits in a 30 mm hole Without legend plates Fingersafe™ contact blocks and light modules for improved safety Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory Low cost incandescent lamps Proven technology Full size and shallow depth light modules
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9001SKP7W31 |
| Application | 9001SK |
| ARRA Compliant | N |
| Base | BA 9s |
| Base Type | BA9s |
| Bezel|Housing | Black Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKP7W31 |
| Color | White |
| Connection | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Finish | Plastic |
| Fixture Type | Incandescent |
| Gross Weight Per Pack | 1.7100 lb |
| Gross Weight per Pack Metric | 171.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8531809026 |
| Height | 5.0800 in |
| Height [Metric] | 5.0800 cm |
| Illumination Type | incandescent |
| Item Group | 21429 |
| Lamp Type | Incandescent |
| Length | 8.8900 in |
| Length [Metric] | 8.8900 cm |
| Lens Color | White |
| Lens Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=495463&lang=en-us |
| Mounting | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | 9001SK |
| Shape | Round |
| Size | 30 mm |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C8201-5-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508-JIS C 852-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C8201-1,UL 508-NEMA,CLASS II IEC 61140 |
| Style | Style 9 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA2 |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Standard Transformer |
| UNSPSC | 39121534 |
| UPC 11 | 78590184377 |
| UPC 12 | 785901843771 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.0800 in |
| Width [Metric] | 5.0800 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Lens Type | Fresnel |
| Mounting Type | Panel |
| Voltage Rating | 220 to 240 VAC |
| Wattage | 2 VA |
| 9001SK |
| IP66 CONFORMING TO IEC 60529 |
| This Schneider electric Harmony™ 9001SK white pilot light with transformer and plastic fresnel is supplied with 240 VAC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Low cost incandescent lamps |
| Proven technology |
| Full size and shallow depth light modules |
