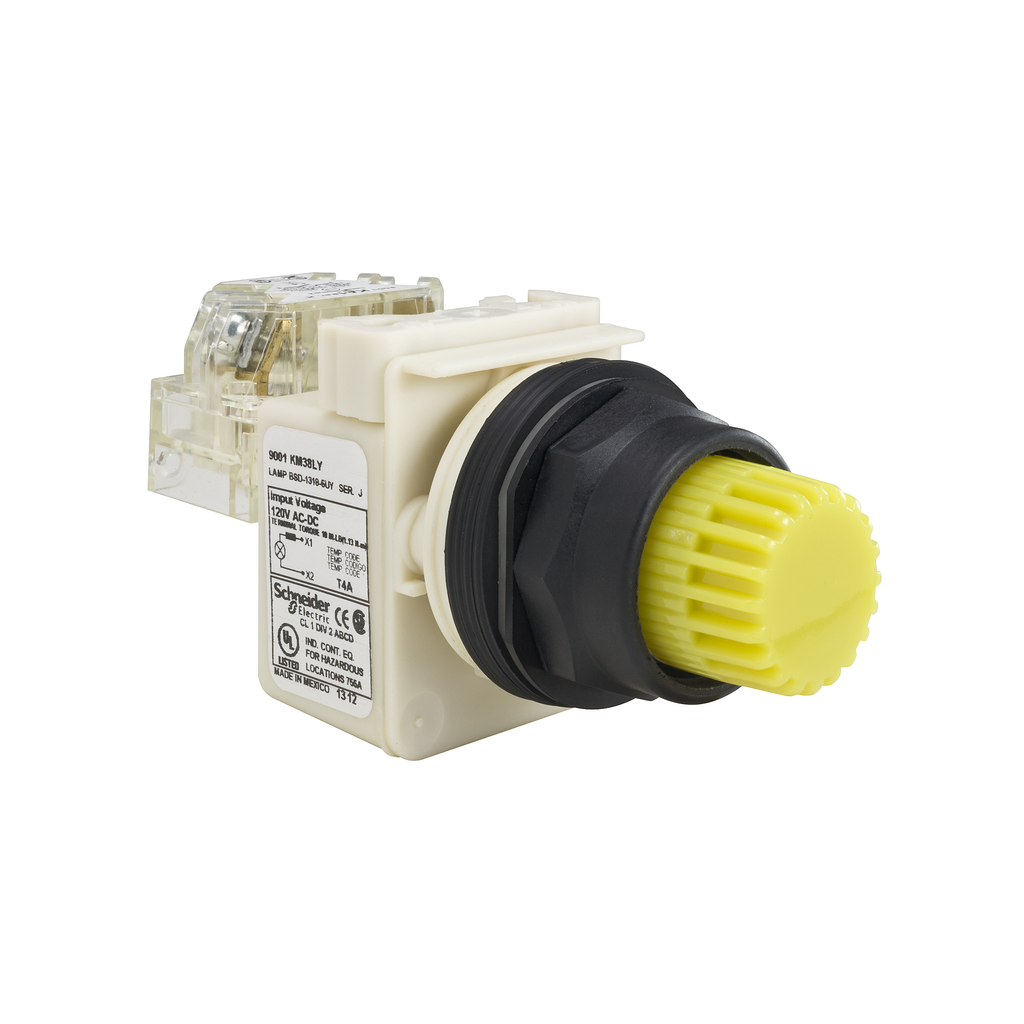

Square D™ 9001SK2L38LYYH13 PUSHBUTTON 600
SKUPDW~6442103
MFGR #9001SK2L38LYYH13
Price Not Available
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Action Standard Actuator SPRING RETURN,YELLOW PROJECTING Amperage Rating 0.55 A 125 V, DC-13, A600-Q600 NEMA ARRA Compliant N Buy American Compliant N Catalog Number 9001SK2L38LYYH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 Contact Rating AC15 - DC13 Country of Origin MX Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Harmonization Tariff Schedule Code 8536509065 Indicator BA 9S Insulation 250 V 3)EN/IEC 60947-1 Item Group 21429 Mounting Panel Operating Temperature -25-70 A°C Returnable Y Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-1-JIS C 852-UL 508-JIS C 4520-EN/IEC 60947-5-4-EN/IEC 60947-5-1-CSA C22.2 NO 14,IP66 IEC 60529,UL 508-NEMA Sub Brand HARMONY Substitute Product Catalog Number 9001KA5 Type Illuminated push-button UNSPSC 39122216 UPC 11 78590169692 UPC 12 785901696926 Voltage Rating 120 VAC//VDC Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1 C/O Size 30 mm WITHOUT GUARD
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | SPRING RETURN,YELLOW PROJECTING |
| Amperage Rating | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9001SK2L38LYYH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² EN/IEC 60947-1 |
| Contact Rating | AC15 - DC13 |
| Country of Origin | MX |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Harmonization Tariff Schedule Code | 8536509065 |
| Indicator | BA 9S |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 21429 |
| Mounting | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-1-JIS C 852-UL 508-JIS C 4520-EN/IEC 60947-5-4-EN/IEC 60947-5-1-CSA C22.2 NO 14,IP66 IEC 60529,UL 508-NEMA |
| Sub Brand | HARMONY |
| Substitute Product Catalog Number | 9001KA5 |
| Type | Illuminated push-button |
| UNSPSC | 39122216 |
| UPC 11 | 78590169692 |
| UPC 12 | 785901696926 |
| Voltage Rating | 120 VAC//VDC |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 C/O |
| Size | 30 mm |
| WITHOUT GUARD |
