Square D™
Square D™ 9001SK2L1G20 PUSHBUTTON OPERATO
Custom_Product_Images_Illustration
Square D™
Square D™ 9001SK2L1G20 PUSHBUTTON OPERATO
SKUPDW~6442044
MFGR #9001SK2L1G20
Your Cost: $149.71/ea
List: Schneider Electric,PUSHBUTTON OPERATOR 30MM SK +OPTIONS,30 mm,600V,BA 9s,Harmony 9001SK,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,No Contact Blocks,Panel,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),plastic,push-button,push-button,spring return
Schneider Electric,PUSHBUTTON OPERATOR 30MM SK +OPTIONS,30 mm,600V,BA 9s,Harmony 9001SK,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,No Contact Blocks,Panel,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),plastic,push-button,push-button,spring return
Action SPRING RETURN Actuator GREEN MUSHROOM Ø 35 MM, UNMARKED,SPRING RETURN ARRA Compliant N Bezel|Housing Black Plastic Buy American Compliant N Catalog Number 9001SK2L1G20 Country of Origin MX Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X Enclosure Type NEMA 1/2/3/3R/4/4X/6/12/13/IP66 Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Harmonization Tariff Schedule Code 8531809026 Indicator BA 9S Item Group 21429 Lamp Type Integral LED/Incandescent Mounting Panel Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Series 9001SK Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA LR25490 CLASS 3211 03-UL LISTED FILE E78403 CCN NKCR-NEMA-UL 508,EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 852-EN/IEC 60947-5-4-EN/IEC 60947-1-UL 508-JIS C 4520,IP66 IEC 60529 Sub Brand 9001SK Substitute Product Catalog Number 9001KA5 Temperature Rating -13 to 158 °F Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Transformer UNSPSC 39122216 UPC 11 78590141558 UPC 12 785901415589 Voltage Rating 600 VAC Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Green Contact Configuration SPDT Contact Mode Momentary Operator Type Mushroom Head/Spring Return Size 30 mm SCREW-IN WITH SET SCREW SECURITY This Schneider electric Harmony™ 9001SK modular illuminated green pushbutton operates with spring return mechanism It has a double insulated plastic bezel and is supplied with 120 VAC integral LED It has a 35 mm mushroom head and fits in a 30 mm hole Without contact block Without guard
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SPRING RETURN |
| Actuator | GREEN MUSHROOM Ø 35 MM, UNMARKED,SPRING RETURN |
| ARRA Compliant | N |
| Bezel|Housing | Black Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SK2L1G20 |
| Country of Origin | MX |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Harmonization Tariff Schedule Code | 8531809026 |
| Indicator | BA 9S |
| Item Group | 21429 |
| Lamp Type | Integral LED/Incandescent |
| Mounting | Panel |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001SK |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA LR25490 CLASS 3211 03-UL LISTED FILE E78403 CCN NKCR-NEMA-UL 508,EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 852-EN/IEC 60947-5-4-EN/IEC 60947-1-UL 508-JIS C 4520,IP66 IEC 60529 |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA5 |
| Temperature Rating | -13 to 158 °F |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Transformer |
| UNSPSC | 39122216 |
| UPC 11 | 78590141558 |
| UPC 12 | 785901415589 |
| Voltage Rating | 600 VAC |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Green |
| Contact Configuration | SPDT |
| Contact Mode | Momentary |
| Operator Type | Mushroom Head/Spring Return |
| Size | 30 mm |
| SCREW-IN WITH SET SCREW SECURITY |

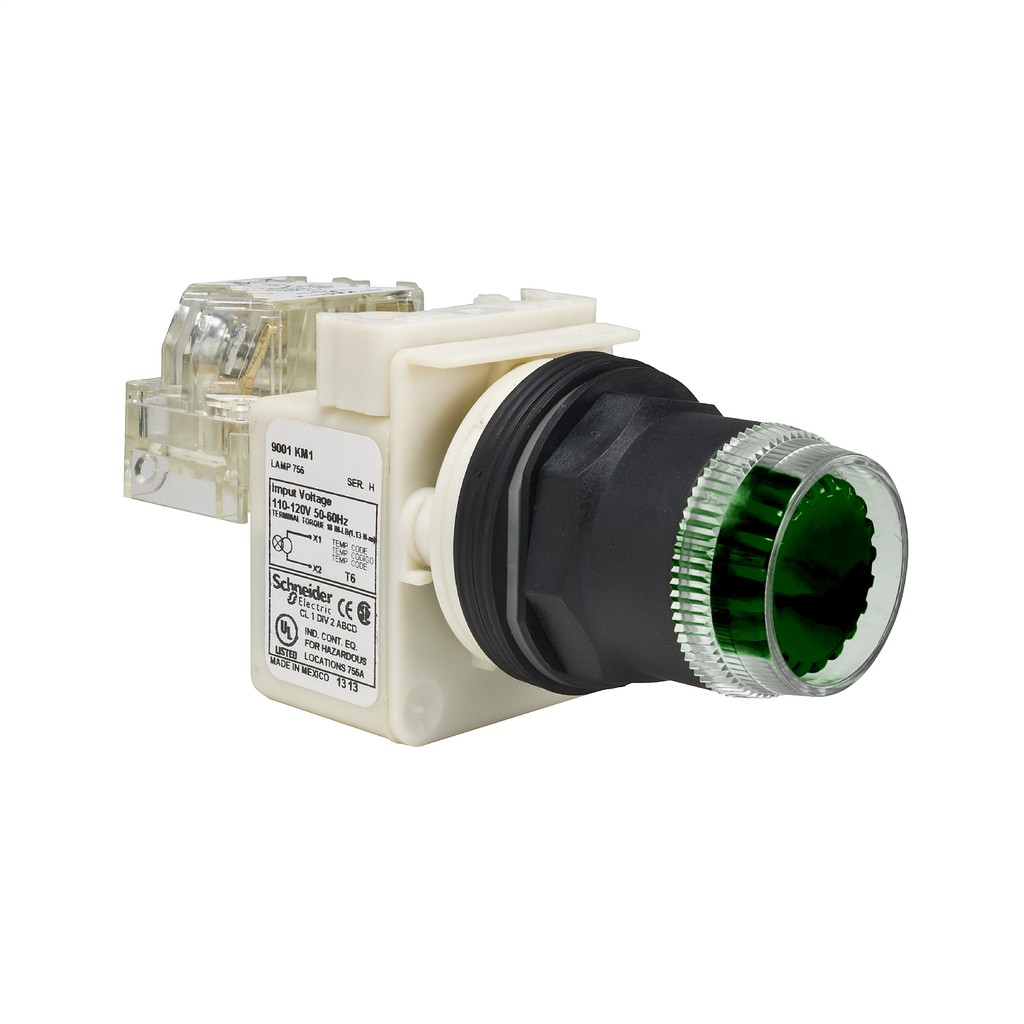

| This Schneider electric Harmony™ 9001SK modular illuminated green pushbutton operates with spring return mechanism |
| It has a double insulated plastic bezel and is supplied with 120 VAC integral LED |
| It has a 35 mm mushroom head and fits in a 30 mm hole |
| Without contact block |
| Without guard |
