Square D™

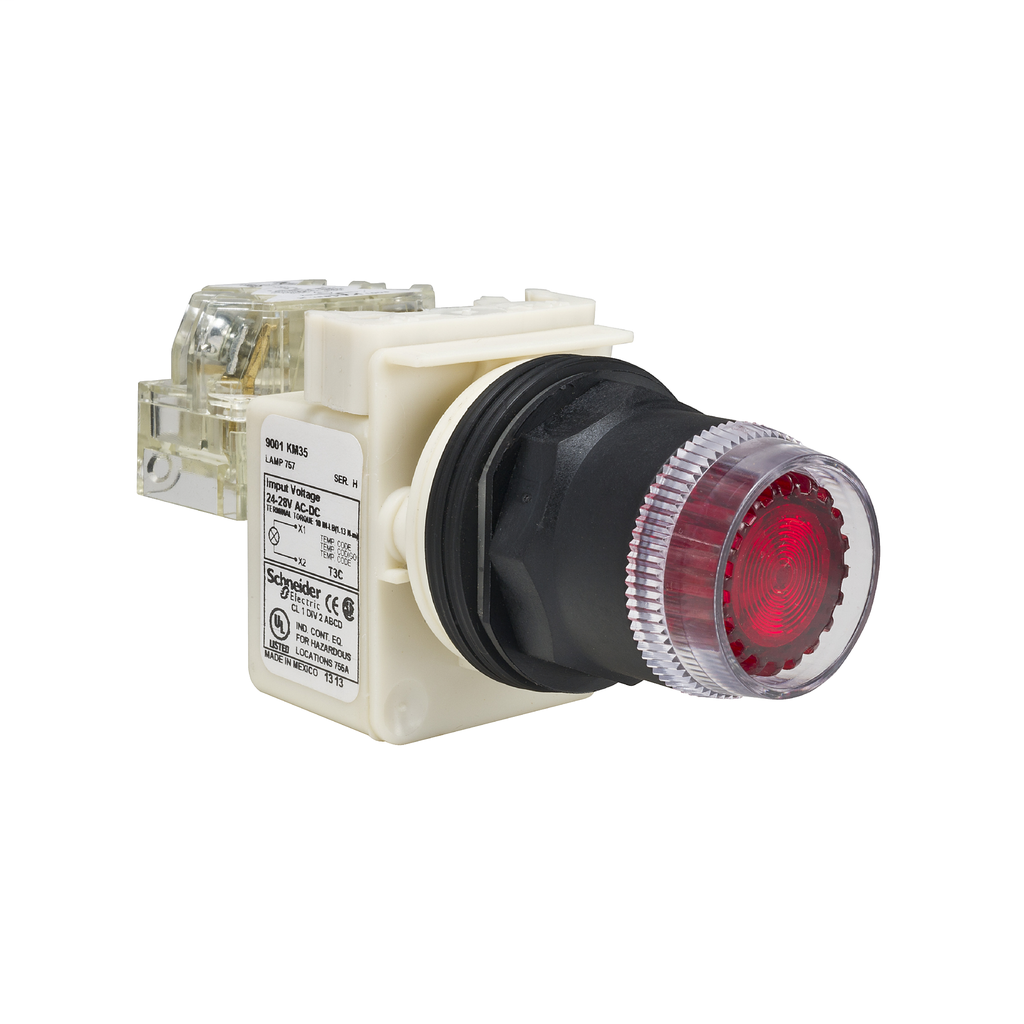

Square D™ 9001SK1L1RH6 PUSHBUTTON 600VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 9001SK1L1RH6 PUSHBUTTON 600VAC
SKUPDW~6441926
MFGR #9001SK1L1RH6
$/ea
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight,Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Schneider Electric,PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS,1 NC,10A,30 mm,600V,AC15 - DC13,Harmony,Illuminated,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight,Dust tight,Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,momentary
Actuator Flush ARRA Compliant N Bezel|Housing Black Plastic Buy American Compliant N Catalog Number 9001SK1L1RH6 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure Type NEMA 1/2/3/3R/4/4X/6/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.4000 lb Harmonization Tariff Schedule Code 8536509035 Item Group 21429 Lamp Type BA9S Incandescent Mounting Type Panel Returnable Y Series 9001SK Terminal Type Screw/Clamp Type Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Transformer Unmarked UNSPSC 39122216 UPC 11 78590154828 UPC 12 785901548287 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Red Contact Configuration 1NC Contact Type Slow Break Operator Type Full Guard Button/Spring Return Size 30 mm FULL GUARD IN PLASTIC This Schneider electric Harmony™ 9001SK modular illuminated flush red pushbutton is supplied with a full guard It has a plastic bezel and is supplied with a 110 VAC transformer It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | Flush |
| ARRA Compliant | N |
| Bezel|Housing | Black Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SK1L1RH6 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/6/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.4000 lb |
| Harmonization Tariff Schedule Code | 8536509035 |
| Item Group | 21429 |
| Lamp Type | BA9S Incandescent |
| Mounting Type | Panel |
| Returnable | Y |
| Series | 9001SK |
| Terminal Type | Screw/Clamp |
| Type | Type SK Corrosion-Resistant Dusttight/Oiltight/Watertight Heavy Duty Transformer Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 78590154828 |
| UPC 12 | 785901548287 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Red |
| Contact Configuration | 1NC |
| Contact Type | Slow Break |
| Operator Type | Full Guard Button/Spring Return |
| Size | 30 mm |
| FULL GUARD IN PLASTIC |
| This Schneider electric Harmony™ 9001SK modular illuminated flush red pushbutton is supplied with a full guard |
| It has a plastic bezel and is supplied with a 110 VAC transformer |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
