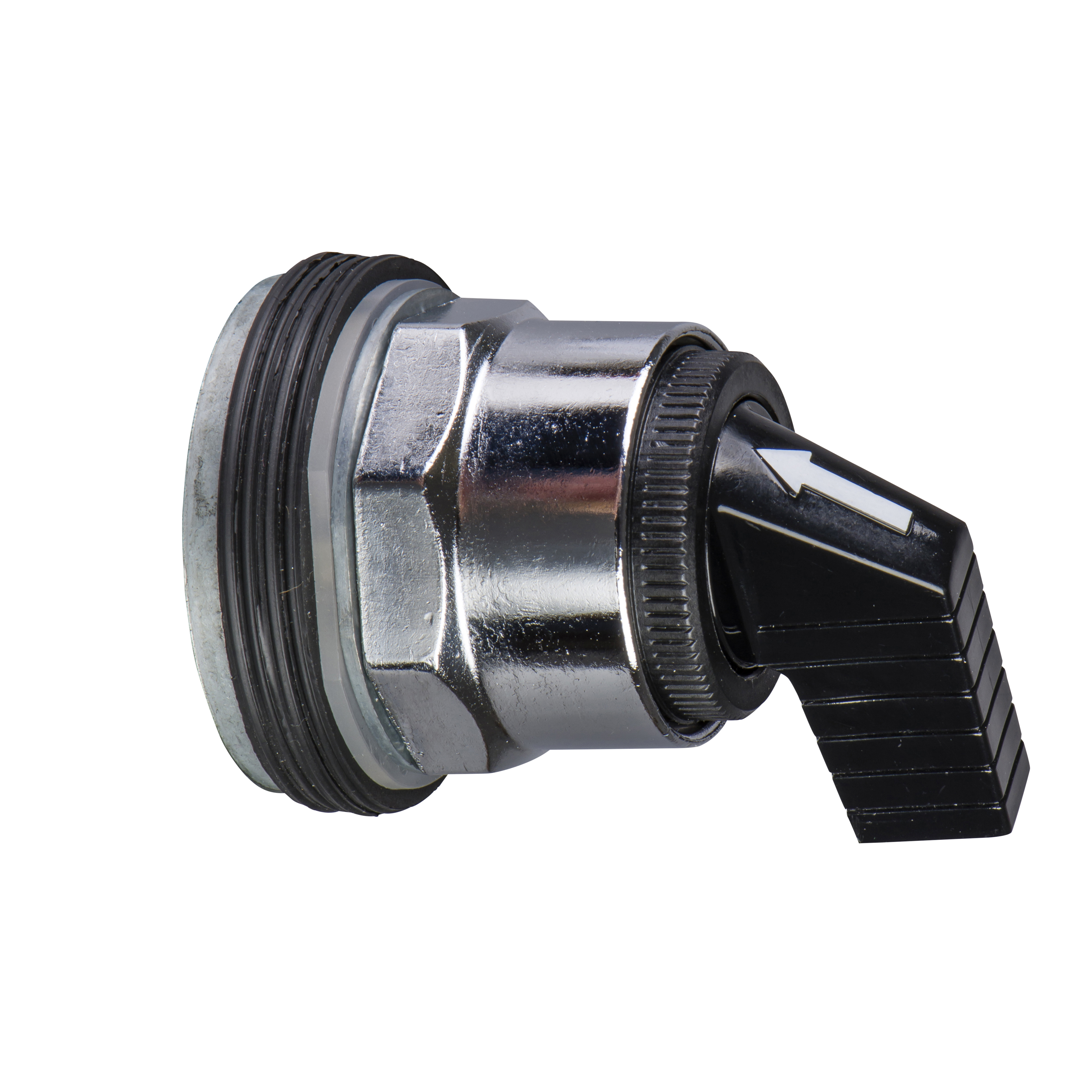

Square D™ 9001KS63FBH13 SELECTOR SWITCH 6
SKUPDW~6439611
MFGR #9001KS63FBH13
Price Not Available
Schneider Electric,SELECTOR SWITCH 600VAC 10A 30MM T-K,30 mm,chromium plated metal,spring return left to centre
Schneider Electric,SELECTOR SWITCH 600VAC 10A 30MM T-K,30 mm,chromium plated metal,spring return left to centre
Action SPRING RETURN (LEFT TO CENTRE) Actuator 3 POSITIONS,BLACK LONG HANDLE,LEFT TO CENTRE SPRING RETURN Application 9001KA1 SIDE 2 ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Cam Code C Catalog Number 9001KS63FBH13 Connection SCREW-CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Connection Type Screw Clamp Contact Mode Momentary/Maintained/Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Enclosure NEMA 1/2/3/3R/4/6/12/13 Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator N Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Item Group 21426 Mounting Type Panel Number of Positions 3 Returnable N Series 9001K Standard UL LISTED FILE E42259 CCN NKCR-CE-CSA LR24590 CLASS 3211 03 Sub Brand K Terminal Type Screw/Clamp Throw 70 deg/Left-Center-Right Type Type T-K Dusttight/Oiltight/Watertight Heavy Duty Round UNSPSC 39122216 UPC 11 785901035459 UPC 12 785901035459 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Black Contact Configuration 1CO Contact Type Slow Break Operator Type Long Handle/Standard Knob/Spring Return Size 30 mm 9001KA1 SIDE 2 CHROMIUM PLATED METAL,SELECTOR SWITCH This robust range offers long term reliability in heavy duty industrial applications and extreme environments Simple and easy installation reduces commissioning time Flexible, compact and modular, it enables you to build the right operator to meet your requirements Integrated earth ground connection (no ground wires required) Easy installation with octagonal ring nut
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SPRING RETURN (LEFT TO CENTRE) |
| Actuator | 3 POSITIONS,BLACK LONG HANDLE,LEFT TO CENTRE SPRING RETURN |
| Application | 9001KA1 SIDE 2 |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Cam Code | C |
| Catalog Number | 9001KS63FBH13 |
| Connection | SCREW-CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Connection Type | Screw Clamp |
| Contact Mode | Momentary/Maintained/Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Enclosure | NEMA 1/2/3/3R/4/6/12/13 |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Item Group | 21426 |
| Mounting Type | Panel |
| Number of Positions | 3 |
| Returnable | N |
| Series | 9001K |
| Standard | UL LISTED FILE E42259 CCN NKCR-CE-CSA LR24590 CLASS 3211 03 |
| Sub Brand | K |
| Terminal Type | Screw/Clamp |
| Throw | 70 deg/Left-Center-Right |
| Type | Type T-K Dusttight/Oiltight/Watertight Heavy Duty Round |
| UNSPSC | 39122216 |
| UPC 11 | 785901035459 |
| UPC 12 | 785901035459 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Black |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Operator Type | Long Handle/Standard Knob/Spring Return |
| Size | 30 mm |
| 9001KA1 SIDE 2 |
| CHROMIUM PLATED METAL,SELECTOR SWITCH |
| This robust range offers long term reliability in heavy duty industrial applications and extreme environments |
| Simple and easy installation reduces commissioning time |
| Flexible, compact and modular, it enables you to build the right operator to meet your requirements |
| Integrated earth ground connection (no ground wires required) |
| Easy installation with octagonal ring nut |
