Square D™ 9001KP7L9 PILOT LIGHT 240VAC 30
SKUPDW~8058231
MFGR #9001KP7L9
Call For Price
List: Schneider Electric,PILOT LIGHT 240VAC 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 4-NEMA 6-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 12-NEMA 1,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,incandescent,round
Schneider Electric,PILOT LIGHT 240VAC 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 4-NEMA 6-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 12-NEMA 1,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,incandescent,round
Alternate Catalog Number 9001KP7L9 Application 9001K ARRA Compliant N Base BA 9s Base Type BA9s Bezel|Housing Polished Chrome Metal/Thermoplastic Polyester Buy American Compliant N Catalog Number 9001KP7L9 Color Blue Connection Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 Country of Origin MX Currency USD Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Finish Chromium Plated Metal Fixture Type Incandescent Gross Weight Per Pack 2.2680 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8531809026 Height 4.5720 CM Height [Metric] 4.5720 cm Illumination Type incandescent Item Group 21426 Lamp Type Incandescent Length 9.1440 CM Length [Metric] 9.1440 cm Lens Color Blue Lens Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471425&lang=en-us Mounting Panel Operating Temperature -25-70 A°C Returnable N Series 9001K Shape Round Size 30 mm Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-4-JIS C 852-JIS C8201-5-1-EN/IEC 60947-5-1-EN/IEC 60947-1-UL 508-JIS C8201-1,IP66 IEC 60529,UL 508-NEMA Style Style 9 Sub Brand 9001K Substitute Product Catalog Number 9001KA3 Terminal Type Screw/Clamp Type Type K Standard Transformer UNSPSC 39121534 UPC 11 78590195298 UPC 12 785901952985 Warranty Description Contractual Warranty:18 months Width 5.0000 CM Width [Metric] 5.3340 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Lens Type Domed Mounting Type Panel Voltage Rating 220 to 240 VAC Wattage 2 VA 9001K IP66 CONFORMING TO IEC 60529 This Schneider electric Harmony™ 9001K blue pilot light with transformer and plastic dome is supplied with 240 VAC It fits in a 30 mm hole Without legend plates Fingersafe™ contact blocks and light modules for improved safety Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory Low cost incandescent lamps Proven technology Full size and shallow depth light modules
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9001KP7L9 |
| Application | 9001K |
| ARRA Compliant | N |
| Base | BA 9s |
| Base Type | BA9s |
| Bezel|Housing | Polished Chrome Metal/Thermoplastic Polyester |
| Buy American Compliant | N |
| Catalog Number | 9001KP7L9 |
| Color | Blue |
| Connection | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Finish | Chromium Plated Metal |
| Fixture Type | Incandescent |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8531809026 |
| Height | 4.5720 CM |
| Height [Metric] | 4.5720 cm |
| Illumination Type | incandescent |
| Item Group | 21426 |
| Lamp Type | Incandescent |
| Length | 9.1440 CM |
| Length [Metric] | 9.1440 cm |
| Lens Color | Blue |
| Lens Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471425&lang=en-us |
| Mounting | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | 9001K |
| Shape | Round |
| Size | 30 mm |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-4-JIS C 852-JIS C8201-5-1-EN/IEC 60947-5-1-EN/IEC 60947-1-UL 508-JIS C8201-1,IP66 IEC 60529,UL 508-NEMA |
| Style | Style 9 |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA3 |
| Terminal Type | Screw/Clamp |
| Type | Type K Standard Transformer |
| UNSPSC | 39121534 |
| UPC 11 | 78590195298 |
| UPC 12 | 785901952985 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.0000 CM |
| Width [Metric] | 5.3340 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Lens Type | Domed |
| Mounting Type | Panel |
| Voltage Rating | 220 to 240 VAC |
| Wattage | 2 VA |
| 9001K |
| IP66 CONFORMING TO IEC 60529 |

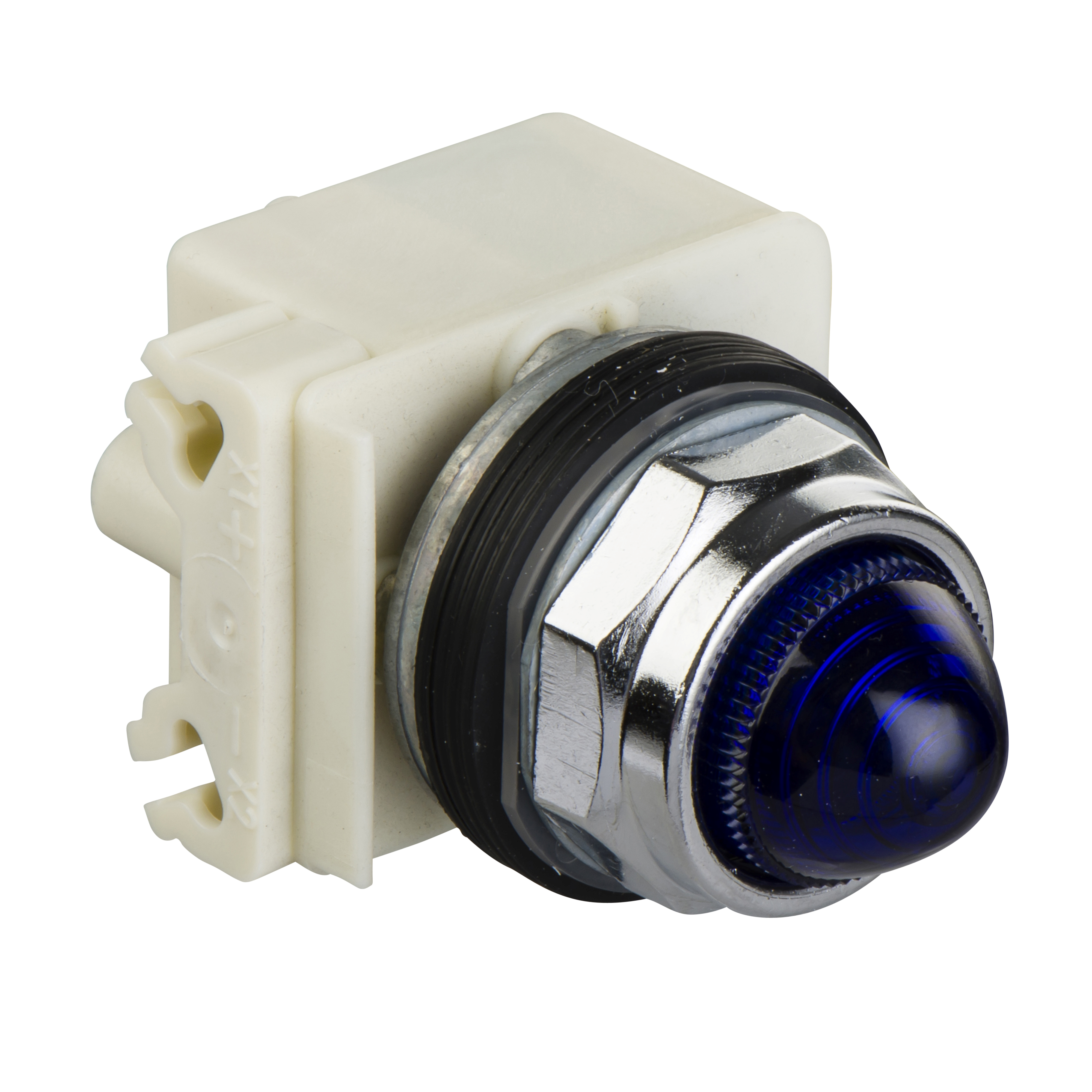

| This Schneider electric Harmony™ 9001K blue pilot light with transformer and plastic dome is supplied with 240 VAC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Low cost incandescent lamps |
| Proven technology |
| Full size and shallow depth light modules |
