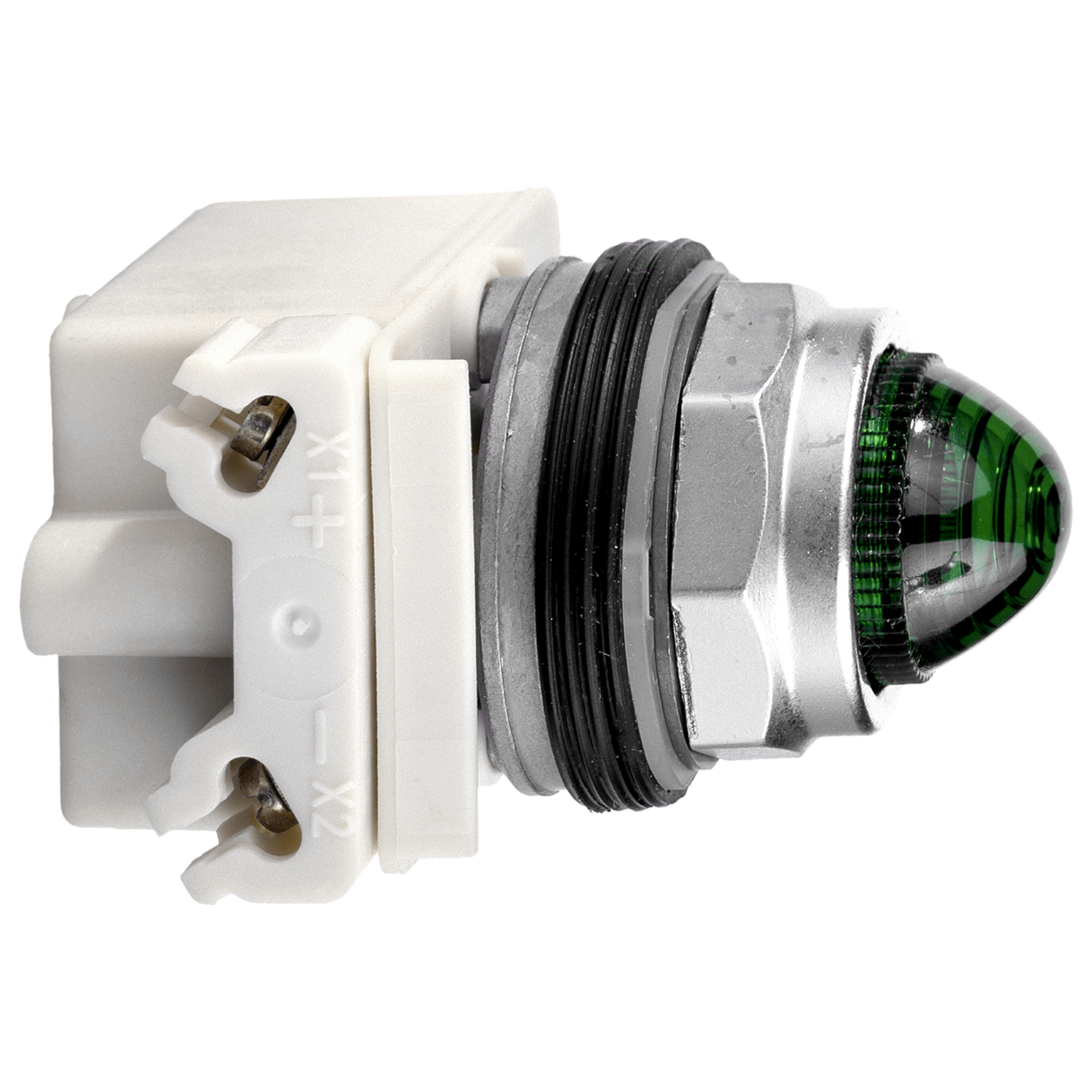

Square D™ 9001KP6G9 PILOT LIGHT 30MM TYPE
SKUPDW~6438576
MFGR #9001KP6G9
Your Cost: $160.28/ea
Schneider Electric,PILOT LIGHT 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 4-NEMA 6-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 12-NEMA 1,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,incandescent,round
Schneider Electric,PILOT LIGHT 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 4-NEMA 6-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 12-NEMA 1,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,incandescent,round
Application 9001K ARRA Compliant N Base BA 9s Base Type BA9s Bezel|Housing Polished Chrome Metal/Thermoplastic Polyester Buy American Compliant N Catalog Number 9001KP6G9 Color Green Country of Origin MX Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator N Finish Chromium Plated Metal Fixture Type Incandescent Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Item Group 21426 Lamp Type Incandescent Lens Color Green Lens Material Plastic Mounting Panel Operating Temperature -25-70 A°C Returnable N Series 9001K Shape Round Size 30 mm Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 852-EN/IEC 60947-5-4-CSA C22.2 NO 14-EN/IEC 60947-5-1-EN/IEC 60947-1-JIS C8201-5-1-UL 508-JIS C8201-1,UL 508-NEMA Style Style 9 Sub Brand 9001K Terminal Type Screw/Clamp Type Type K Standard Transformer UNSPSC 39121534 UPC 11 785901615378 UPC 12 785901615378 Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Lens Type Domed Mounting Type Panel Voltage Rating 550 to 600 VAC Wattage 2.5 VA 9001K IP66 CONFORMING TO IEC 60529 This Schneider electric Harmony™ 9001K green pilot light with transformer and plastic dome is supplied with 550 to 600 VAC It fits in a 30 mm hole Without legend plates Fingersafe™ contact blocks and light modules for improved safety Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory Low cost incandescent lamps Proven technology Full size and shallow depth light modules
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | 9001K |
| ARRA Compliant | N |
| Base | BA 9s |
| Base Type | BA9s |
| Bezel|Housing | Polished Chrome Metal/Thermoplastic Polyester |
| Buy American Compliant | N |
| Catalog Number | 9001KP6G9 |
| Color | Green |
| Country of Origin | MX |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | N |
| Finish | Chromium Plated Metal |
| Fixture Type | Incandescent |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Item Group | 21426 |
| Lamp Type | Incandescent |
| Lens Color | Green |
| Lens Material | Plastic |
| Mounting | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | 9001K |
| Shape | Round |
| Size | 30 mm |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,JIS C 852-EN/IEC 60947-5-4-CSA C22.2 NO 14-EN/IEC 60947-5-1-EN/IEC 60947-1-JIS C8201-5-1-UL 508-JIS C8201-1,UL 508-NEMA |
| Style | Style 9 |
| Sub Brand | 9001K |
| Terminal Type | Screw/Clamp |
| Type | Type K Standard Transformer |
| UNSPSC | 39121534 |
| UPC 11 | 785901615378 |
| UPC 12 | 785901615378 |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Lens Type | Domed |
| Mounting Type | Panel |
| Voltage Rating | 550 to 600 VAC |
| Wattage | 2.5 VA |
| 9001K |
| IP66 CONFORMING TO IEC 60529 |
| This Schneider electric Harmony™ 9001K green pilot light with transformer and plastic dome is supplied with 550 to 600 VAC |
| It fits in a 30 mm hole |
| Without legend plates |
| Fingersafe™ contact blocks and light modules for improved safety |
| Interchangeable light modules, contact blocks, color caps, pilot light lenses and mushroom heads reduce inventory |
| Low cost incandescent lamps |
| Proven technology |
| Full size and shallow depth light modules |
