Square D™

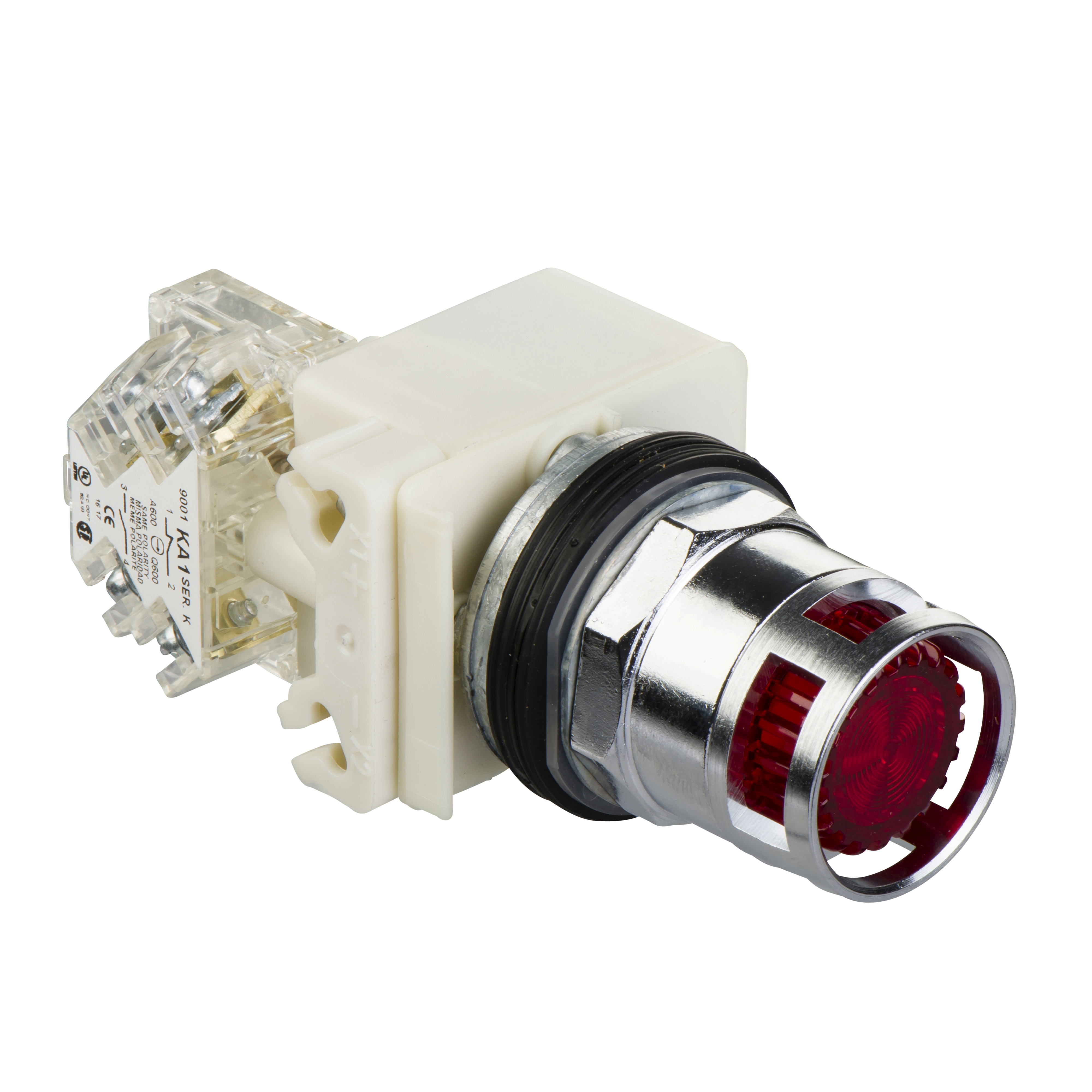

Square D™ 9001K3L7RH13 PUSH BUTTON 600VAC 10A 30MM T-K
Custom_Product_Images_Illustration
Square D™
Square D™ 9001K3L7RH13 PUSH BUTTON 600VAC 10A 30MM T-K
SKUPDW~11652046
MFGR #9001K3L7RH13
Your Cost: $162.02/ea
List: Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,230 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Schneider Electric,PUSH BUTTON 600VAC 10A 30MM T-K,230 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Action Standard Actuator RED FLUSH, UNMARKED,SPRING RETURN Alternate Catalog Number 9001K3L7RH13 Amperage Rating 3 A 240 V, AC-15, A600-Q600 NEMA ARRA Compliant N Buy American Compliant N Catalog Number 9001K3L7RH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 2.3622 in Height [Metric] 6.2000 cm Illumination Type incandescent Indicator BA 9S,INCANDESCENT Insulation 250 V 3)IEC 60947-1 Item Group 21426 Length 4.7244 in Length [Metric] 11.8010 cm Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680788&lang=en-us Operating Temperature -25-70 A°C Returnable N Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-UL 508-JIS C 4520-EN/IEC 60947-1-CSA C22.2 NO 14-EN/IEC 60947-5-4-JIS C 852,IP66 IEC 60529,NEMA-UL 508 Sub Brand 9001K Substitute Product Catalog Number 9001KA2 Type Illuminated push-button UNSPSC 39122216 UPC 11 47569000058 Voltage Rating 220...240 V AC Warranty Description Contractual Warranty:18 months Width 1.9685 in Width [Metric] 4.8010 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1 C/O Size 1.18 in EXTENDED METALLIC GUARD
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | RED FLUSH, UNMARKED,SPRING RETURN |
| Alternate Catalog Number | 9001K3L7RH13 |
| Amperage Rating | 3 A 240 V, AC-15, A600-Q600 NEMA |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9001K3L7RH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 2.3622 in |
| Height [Metric] | 6.2000 cm |
| Illumination Type | incandescent |
| Indicator | BA 9S,INCANDESCENT |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Length | 4.7244 in |
| Length [Metric] | 11.8010 cm |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680788&lang=en-us |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-UL 508-JIS C 4520-EN/IEC 60947-1-CSA C22.2 NO 14-EN/IEC 60947-5-4-JIS C 852,IP66 IEC 60529,NEMA-UL 508 |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA2 |
| Type | Illuminated push-button |
| UNSPSC | 39122216 |
| UPC 11 | 47569000058 |
| Voltage Rating | 220...240 V AC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.9685 in |
| Width [Metric] | 4.8010 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 C/O |
| Size | 1.18 in |
| EXTENDED METALLIC GUARD |
