Square D™

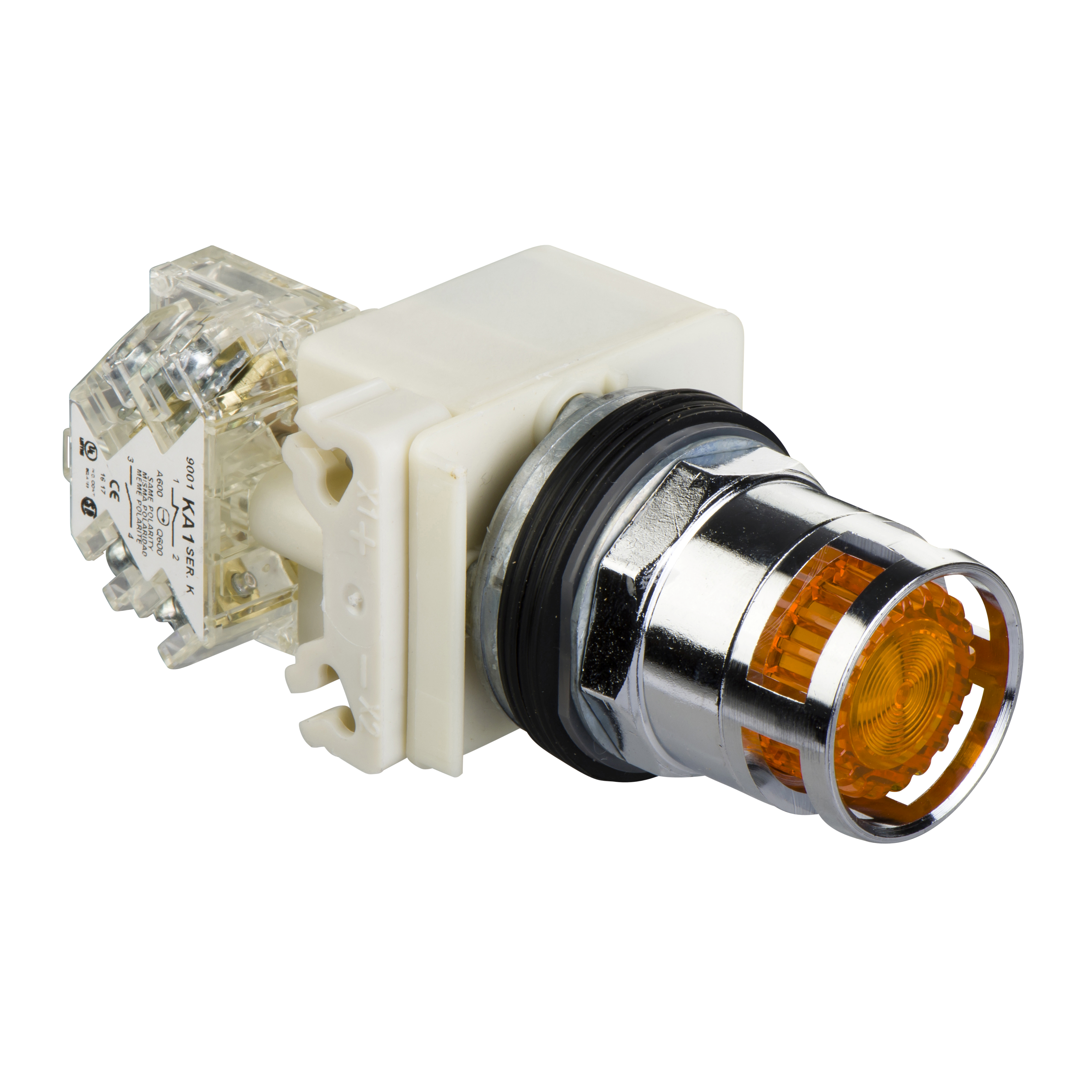

Square D™ 9001K3L7AH13 AMBER 240V 30MM PUSH BUTTON W T-K
Custom_Product_Images_Illustration
Square D™
Square D™ 9001K3L7AH13 AMBER 240V 30MM PUSH BUTTON W T-K
SKUPDW~11652007
MFGR #9001K3L7AH13
Your Cost: $363.00/ea
Schneider Electric,AMBER 240V 30MM PUSH BUTTON W T-K,230 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Schneider Electric,AMBER 240V 30MM PUSH BUTTON W T-K,230 V AC/DC,30 mm,BA 9s,incandescent,Harmony 9001K,chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Action Standard Actuator AMBER FLUSH, UNMARKED,SPRING RETURN Alternate Catalog Number 9001K3L7AH13 Amperage Rating 3 A 240 V, AC-15, A600-Q600 NEMA ARRA Compliant N Buy American Compliant N Catalog Number 9001K3L7AH13 Connection SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 EU RoHS Indicator Y Gross Weight Per Pack 0.5000 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509033 Height 1.9685 in Height [Metric] 4.5720 cm Illumination Type incandescent Indicator BA 9S,INCANDESCENT Insulation 250 V 3)IEC 60947-1 Item Group 21426 Length 3.5433 in Length [Metric] 9.1440 cm Material Chromium plated metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680796&lang=en-us Operating Temperature -25-70 A°C Returnable N Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-4-JIS C 4520-JIS C 852-CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508-EN/IEC 60947-1,IP66 IEC 60529,UL 508-NEMA Sub Brand 9001K Substitute Product Catalog Number 9001KA1 Type ILLUMINATED PUSH-BUTTON UNSPSC 39122216 Voltage Rating 220...240 V AC Warranty Description Contractual Warranty:18 months Width 1.9685 in Width [Metric] 5.3340 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Contact Configuration 1 C/O Size 1.18 in EXTENDED METALLIC GUARD
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | Standard |
| Actuator | AMBER FLUSH, UNMARKED,SPRING RETURN |
| Alternate Catalog Number | 9001K3L7AH13 |
| Amperage Rating | 3 A 240 V, AC-15, A600-Q600 NEMA |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9001K3L7AH13 |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.5000 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509033 |
| Height | 1.9685 in |
| Height [Metric] | 4.5720 cm |
| Illumination Type | incandescent |
| Indicator | BA 9S,INCANDESCENT |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Length | 3.5433 in |
| Length [Metric] | 9.1440 cm |
| Material | Chromium plated metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680796&lang=en-us |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-4-JIS C 4520-JIS C 852-CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508-EN/IEC 60947-1,IP66 IEC 60529,UL 508-NEMA |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA1 |
| Type | ILLUMINATED PUSH-BUTTON |
| UNSPSC | 39122216 |
| Voltage Rating | 220...240 V AC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.9685 in |
| Width [Metric] | 5.3340 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 C/O |
| Size | 1.18 in |
| EXTENDED METALLIC GUARD |
