Square D™

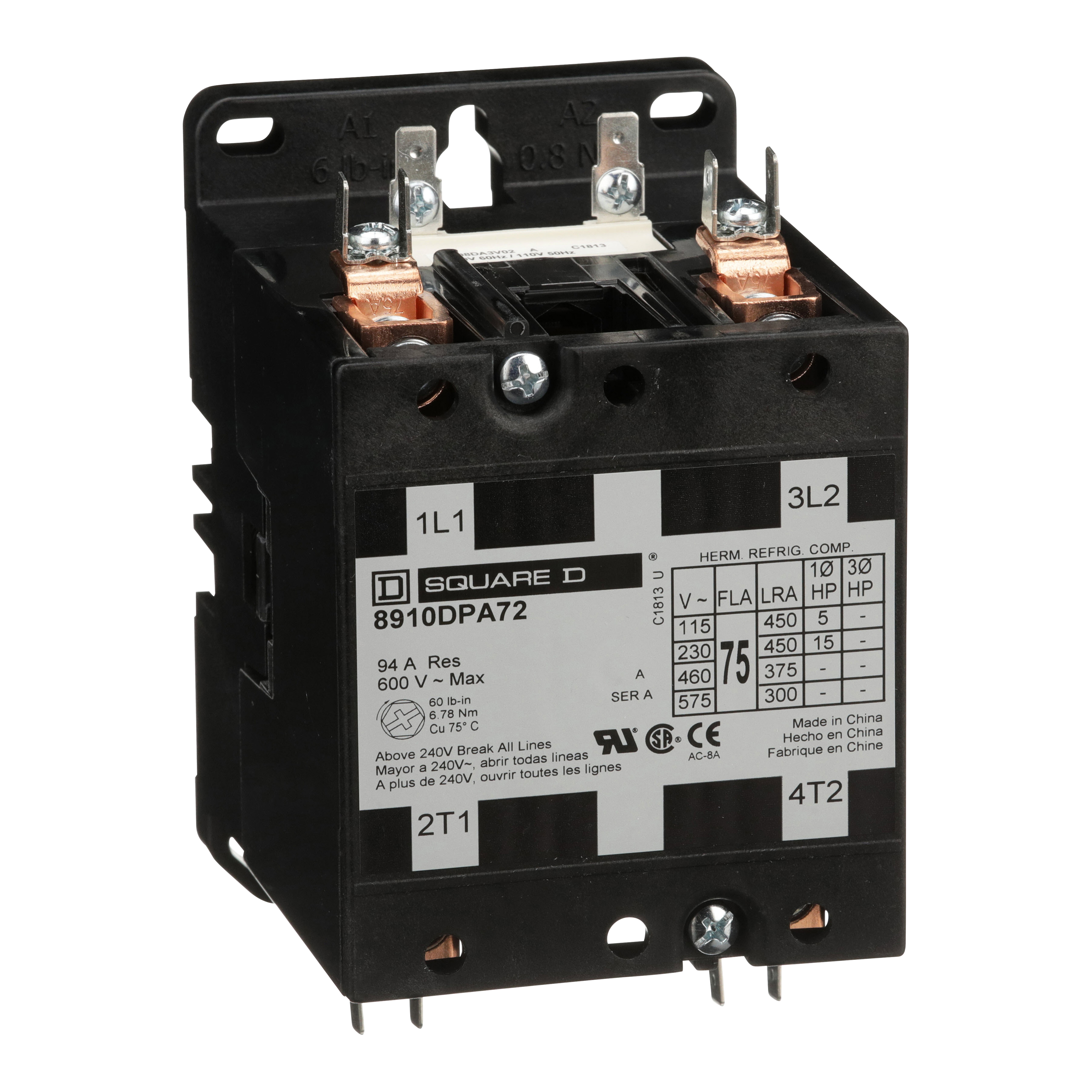

Square D™ 8910DPA72V02 CONTACTOR 600VAC 7
Custom_Product_Images_Illustration
Square D™
Square D™ 8910DPA72V02 CONTACTOR 600VAC 7
SKU215410
MFGR #8910DPA72V02
Your Cost: $270.00/ea
List: Square D 8910DPA72V02 CONTACTOR 600VAC 75AMP DPA +OPTIONS,1-Phase,110 V AC 50 Hz-120 V AC 60 Hz,2 NO,2P,DPA,Definite Purpose Contactor,Ideal for heating, air conditioning, refrigeration, data processing and food service equipment.,Panel,Quick Connect/Binder Head Screw,UL Recognized - CSA Certified - CE Marked
Square D 8910DPA72V02 CONTACTOR 600VAC 75AMP DPA +OPTIONS,1-Phase,110 V AC 50 Hz-120 V AC 60 Hz,2 NO,2P,DPA,Definite Purpose Contactor,Ideal for heating, air conditioning, refrigeration, data processing and food service equipment.,Panel,Quick Connect/Binder Head Screw,UL Recognized - CSA Certified - CE Marked
Alternate Catalog Number 8910DPA72V02 Application IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8910DPA72V02 Coil Power Rating 5 hp at 115 VAC 1 ph/15 hp at 230 VAC 1 ph Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz Connection QUICK CONNECT TERMINALS-BOX LUGS Connection Type Binding Head Screw Contact Configuration 2NO Contact Rating 75 A Country of Origin CN Currency USD Dimensions 2.37 in W x 2.9 in D x 3.25 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 238.70 Gross Volume per Pack Metric 3911.58 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.4400 lb Gross Weight per Pack Metric 1.56 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 6.2992 in Height [Metric] 15.7480 cm Item Group 21347 Length 7.0866 in Length [Metric] 17.7800 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=560893&lang=en-us Maximum Load Current 75 A Mounting Panel Mounting Type Panel Number Of Poles 2 Operating Cycles 500 cpm Operating Temperature 32 to 149 Phase 1 Returnable N Series 8910 Size 2P Standard UL RECOGNIZED-CSA Standards ARRA CompliantBAA CompliantCE CertifiedCSA File LR25490 Class 3211-04ECCN EAR99RoHS CompliantUL File E3190 CCN NLDX2PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Stock Status NONSTOCK Sub Brand DPA Substitute Product Catalog Number 9999D11 Terminal Type Quick Connect/Binder Head Screw Type Type DPA UNSPSC 39121529 UPC 11 78590111834 UPC 12 785901118343 Warranty Description Contractual Warranty:18 months Wattage 3.7 kW at 115 V 1 ph/11 kW at 230 V 1 ph/18.5 kW at 230 V 3 ph/30 KW at 460/575 V 3 ph Width 5.5118 in Width [Metric] 13.9700 cm IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. 5-5 HP 115 V AC, 1 PHASE-15-15 HP 230 V AC, 1 PHASE Quick connect terminals and binder head screws allow for easy wiring Box lugs are standard on contactors 40 A and larger An exclusive DIN track mounting option may reduce installation costs Coils can be changed quickly, without a tool, on the type DPA, 50 to 90 A contactors Auxiliary contact modules snap on either side of the type DPA contactors Compact design Industry standard mounting Double break contacts Low coil VA Straight-through wiring 500000 mechanical operations 100000 electrical operations on type DP and 200000 on type DPA, SYD Continuous duty cycle Low cost 600 VAC system voltage Quick connect terminals box lugs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8910DPA72V02 |
| Application | IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8910DPA72V02 |
| Coil Power Rating | 5 hp at 115 VAC 1 ph/15 hp at 230 VAC 1 ph |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz |
| Connection | QUICK CONNECT TERMINALS-BOX LUGS |
| Connection Type | Binding Head Screw |
| Contact Configuration | 2NO |
| Contact Rating | 75 A |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 2.37 in W x 2.9 in D x 3.25 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 238.70 |
| Gross Volume per Pack Metric | 3911.58 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.4400 lb |
| Gross Weight per Pack Metric | 1.56 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 6.2992 in |
| Height [Metric] | 15.7480 cm |
| Item Group | 21347 |
| Length | 7.0866 in |
| Length [Metric] | 17.7800 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=560893&lang=en-us |
| Maximum Load Current | 75 A |
| Mounting | Panel |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Operating Cycles | 500 cpm |
| Operating Temperature | 32 to 149 |
| Phase | 1 |
| Returnable | N |
| Series | 8910 |
| Size | 2P |
| Standard | UL RECOGNIZED-CSA |
| Standards | ARRA CompliantBAA CompliantCE CertifiedCSA File LR25490 Class 3211-04ECCN EAR99RoHS CompliantUL File E3190 CCN NLDX2PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | DPA |
| Substitute Product Catalog Number | 9999D11 |
| Terminal Type | Quick Connect/Binder Head Screw |
| Type | Type DPA |
| UNSPSC | 39121529 |
| UPC 11 | 78590111834 |
| UPC 12 | 785901118343 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 3.7 kW at 115 V 1 ph/11 kW at 230 V 1 ph/18.5 kW at 230 V 3 ph/30 KW at 460/575 V 3 ph |
| Width | 5.5118 in |
| Width [Metric] | 13.9700 cm |
| IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. |
| 5-5 HP 115 V AC, 1 PHASE-15-15 HP 230 V AC, 1 PHASE |
| Quick connect terminals and binder head screws allow for easy wiring |
| Box lugs are standard on contactors 40 A and larger |
| An exclusive DIN track mounting option may reduce installation costs |
| Coils can be changed quickly, without a tool, on the type DPA, 50 to 90 A contactors |
| Auxiliary contact modules snap on either side of the type DPA contactors |
| Compact design |
| Industry standard mounting |
| Double break contacts |
| Low coil VA |
| Straight-through wiring |
| 500000 mechanical operations |
| 100000 electrical operations on type DP and 200000 on type DPA, SYD |
| Continuous duty cycle |
| Low cost |
| 600 VAC system voltage |
| Quick connect terminals box lugs |
