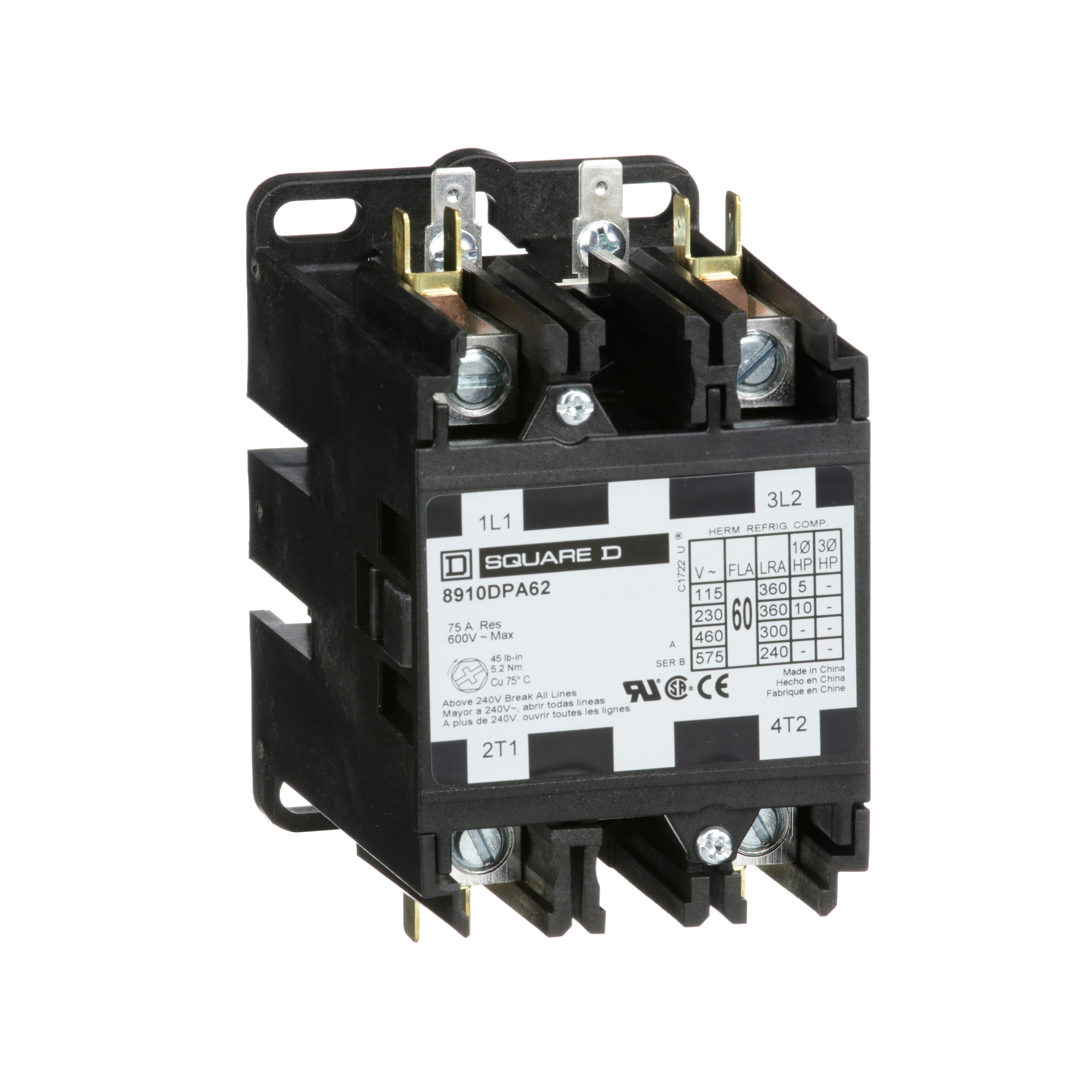

Square D™ 8910DPA62V09 CONTACTOR 600VAC 6
Contactors
96411
MFG #: 8910DPA62V09
Square D™
238.25000
/ ea
Square D 8910DPA62V09 CONTACTOR 600VAC 60AMP DPA +OPTIONS,1-Phase,2 NO,220 V AC 50 Hz-208...240 V AC 60 Hz,2P,DPA,Definite Purpose Contactor,Ideal for heating, air conditioning, refrigeration, data processing and food service equipment.,Panel,Quick Connect/Binder Head Screw,UL Recognized - CSA Certified - CE Marked
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8009266360Den&ext=webp(360 Degree View URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Catalog URL - Square_D_8965DPR34V02Y243_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0310401-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Full Eng Drawing URL - Square_D_8910DPA52V02_Technical_Drawing.pdf(Full Eng Drawing URL)
- Install Instructions 1 URL - 11003_NDHKIZGT5CUEQYXA.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_8910DPA62V09_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_YS5V3IRN2QEM0X61.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_5RTS4B9K1EONCJVY.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_ZXLPI8BAEHOY7W1C.dwg(Tech Drawing URL)
- Applications
- Features
| IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT. |
| 5-5 HP 115 V AC, 1 PHASE-10-10 HP 230 V AC, 1 PHASE |
| Quick connect terminals and binder head screws allow for easy wiring |
| Box lugs are standard on contactors 40 A and larger |
| An exclusive DIN track mounting option may reduce installation costs |
| Coils can be changed quickly, without a tool, on the type DPA, 50 to 90 A contactors |
| Auxiliary contact modules snap on either side of the type DPA contactors |
| Compact design |
| Industry standard mounting |
| Double break contacts |
| Low coil VA |
| Straight-through wiring |
| 500000 mechanical operations |
| 100000 electrical operations on type DP and 200000 on type DPA, SYD |
| Continuous duty cycle |
| Low cost |
| 600 VAC system voltage |
| Quick connect terminals box lugs |
