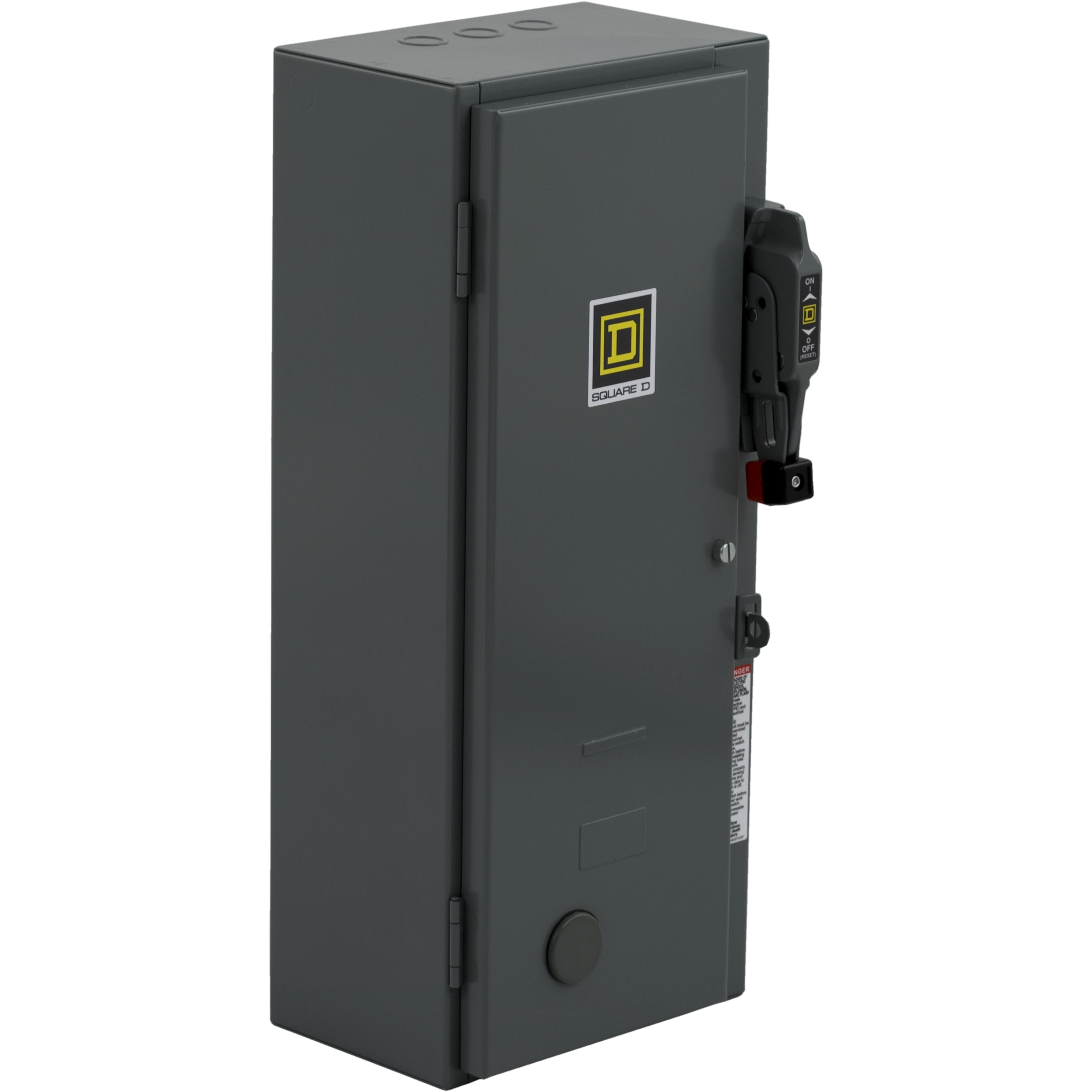

Square D™ 8903SMG60V02 COMBO LIGHTING CON
SKU811423
MFGR #8903SMG60V02
Your Cost: $1,550.05/ea
Square D 8903SMG60V02 COMBO LIGHTING CONTACTOR 600VAC 30A NE,120Vac60Hz - 110Vac50Hz,3-Pole,Electrically Held,Electrically Held Lighting Contactor,Lugs,UL Listed - CSA Certified
Square D 8903SMG60V02 COMBO LIGHTING CONTACTOR 600VAC 30A NE,120Vac60Hz - 110Vac50Hz,3-Pole,Electrically Held,Electrically Held Lighting Contactor,Lugs,UL Listed - CSA Certified
Application ELECTRICALLY HELD ARRA Compliant C Brand Square D™ Buy American Compliant C Catalog Number 8903SMG60V02 Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC Connection LUGS Connection Type Lug Contact Configuration Without Contact Rating 30 A Country of Origin MX Dimensions 241 mm W x 213 mm D x 572 mm H Enclosure Type NEMA 1 EU RoHS Indicator U Finish Painted Frequency Rating 50/60 Hz Gross Weight Per Pack 27.8500 lb Gross Weight per Pack Metric 12.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Indicator Without pilot light Item Group 21325 Manufacturer Schneider Electric Material Sheet Steel Mounting Type Surface Number Of Poles 3 Operating Cycles 10000 cpm Operating Temperature 0 to 40 Returnable N Series 8903 Size 213 MM,241 MM,572 MM Standard UL LISTED FILE E16151 CCN NRNT Stock Status NONSTOCK Sub Brand S Terminal Type Screw/Clamp Type Combination Electrically Held Type S UNSPSC 39121529 UPC 11 78590148292 UPC 12 785901482925 Wattage 10.3 kW at 200 V/11.9 kW at 230 V/19.7 kW at 380 V/23.9 kW at 460 V/30 kW at 575 V ELECTRICALLY HELD COMMON CONTROL CIRCUIT,NONE Factory wired controls and clearly marked termination points NEMA 1 general purpose enclosure 600 VAC system voltage Screw clamp terminal Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | ELECTRICALLY HELD |
| ARRA Compliant | C |
| Brand | Square D™ |
| Buy American Compliant | C |
| Catalog Number | 8903SMG60V02 |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz VAC |
| Connection | LUGS |
| Connection Type | Lug |
| Contact Configuration | Without |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Dimensions | 241 mm W x 213 mm D x 572 mm H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | U |
| Finish | Painted |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 27.8500 lb |
| Gross Weight per Pack Metric | 12.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Indicator | Without pilot light |
| Item Group | 21325 |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Cycles | 10000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 213 MM,241 MM,572 MM |
| Standard | UL LISTED FILE E16151 CCN NRNT |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Terminal Type | Screw/Clamp |
| Type | Combination Electrically Held Type S |
| UNSPSC | 39121529 |
| UPC 11 | 78590148292 |
| UPC 12 | 785901482925 |
| Wattage | 10.3 kW at 200 V/11.9 kW at 230 V/19.7 kW at 380 V/23.9 kW at 460 V/30 kW at 575 V |
| ELECTRICALLY HELD |
| COMMON CONTROL CIRCUIT,NONE |
| Factory wired controls and clearly marked termination points |
| NEMA 1 general purpose enclosure |
| 600 VAC system voltage |
| Screw clamp terminal |
| Without indicator |
