Square D™

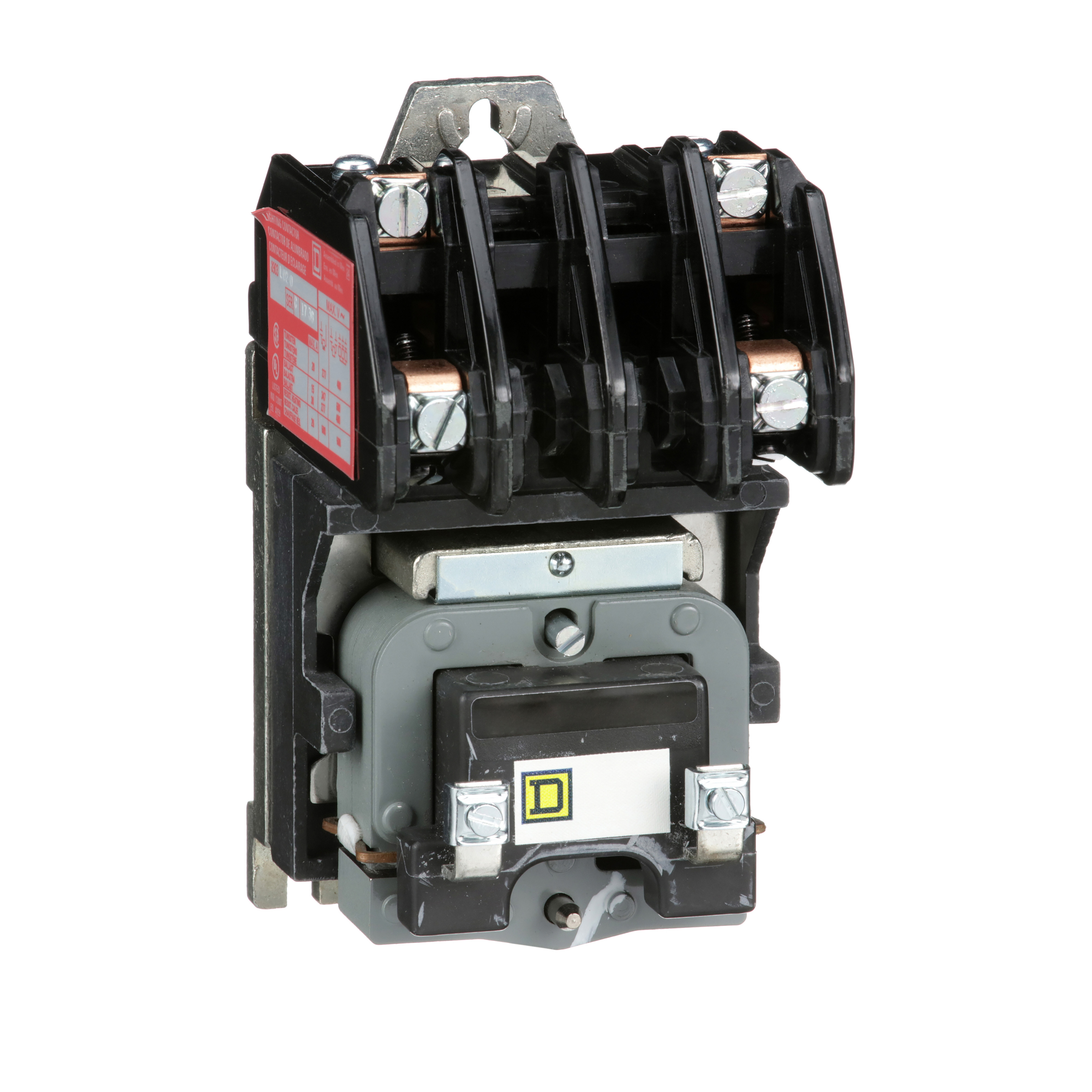

Square D™ 8903LO20V04 LIGHTING CONTACTOR
Custom_Product_Images_Illustration
Square D™
Square D™ 8903LO20V04 LIGHTING CONTACTOR
SKU289619
MFGR #8903LO20V04
Your Cost: $378.60/ea
List: Square D 8903LO20V04 LIGHTING CONTACTOR 600VAC 30A L,2 NO,277 V AC 60 Hz,8903L,Electrically Held,Electrically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903LO20V04 LIGHTING CONTACTOR 600VAC 30A L,2 NO,277 V AC 60 Hz,8903L,Electrically Held,Electrically Held Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903LO20V04 Application ELECTRICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903LO20V04 Coil Power Rating 30 Coil Voltage 277 VAC at 60 Hz V Connection SCREW-CLAMP TERMINALS Contact Configuration 2NO Contact Rating 30 A Country of Origin MX Currency USD Dimensions 2.87 in W x 3.11 in D x 5 in H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 178.02 Gross Volume per Pack Metric 2917.21 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.7300 lb Gross Weight per Pack Metric 1.24 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 11.1760 in Height [Metric] 11.1760 cm Indicator No indicator Item Group 21321 Length 17.2720 in Length [Metric] 17.2720 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=549065&lang=en-us Number Of Poles 2 Operating Cycles 4000 cpm Operating Temperature 0 to 40 Returnable N Series 8903 Size 127 MM,73 MM,79 MM in Standard UL LISTED-CSA Stock Status NONSTOCK Sub Brand 8903L Terminal Type Screw/Clamp Type Electrically Held Type L UNSPSC 39121529 UPC 11 78590162608 UPC 12 785901626084 Warranty Description Contractual Warranty:18 months Wattage 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Width 15.4940 in Width [Metric] 15.4940 cm ELECTRICALLY HELD SEPARATE CONTROL CIRCUIT 30 A ballast lighting rating, 20 A tungsten lighting rating Silver-cadmium-oxide double break contacts 600 VAC system voltage Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903LO20V04 |
| Application | ELECTRICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903LO20V04 |
| Coil Power Rating | 30 |
| Coil Voltage | 277 VAC at 60 Hz V |
| Connection | SCREW-CLAMP TERMINALS |
| Contact Configuration | 2NO |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in W x 3.11 in D x 5 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 178.02 |
| Gross Volume per Pack Metric | 2917.21 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.7300 lb |
| Gross Weight per Pack Metric | 1.24 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 11.1760 in |
| Height [Metric] | 11.1760 cm |
| Indicator | No indicator |
| Item Group | 21321 |
| Length | 17.2720 in |
| Length [Metric] | 17.2720 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=549065&lang=en-us |
| Number Of Poles | 2 |
| Operating Cycles | 4000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 127 MM,73 MM,79 MM in |
| Standard | UL LISTED-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | 8903L |
| Terminal Type | Screw/Clamp |
| Type | Electrically Held Type L |
| UNSPSC | 39121529 |
| UPC 11 | 78590162608 |
| UPC 12 | 785901626084 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
| Width | 15.4940 in |
| Width [Metric] | 15.4940 cm |
| ELECTRICALLY HELD |
| SEPARATE CONTROL CIRCUIT |
| 30 A ballast lighting rating, 20 A tungsten lighting rating |
| Silver-cadmium-oxide double break contacts |
| 600 VAC system voltage |
| Without indicator |
