Square D™

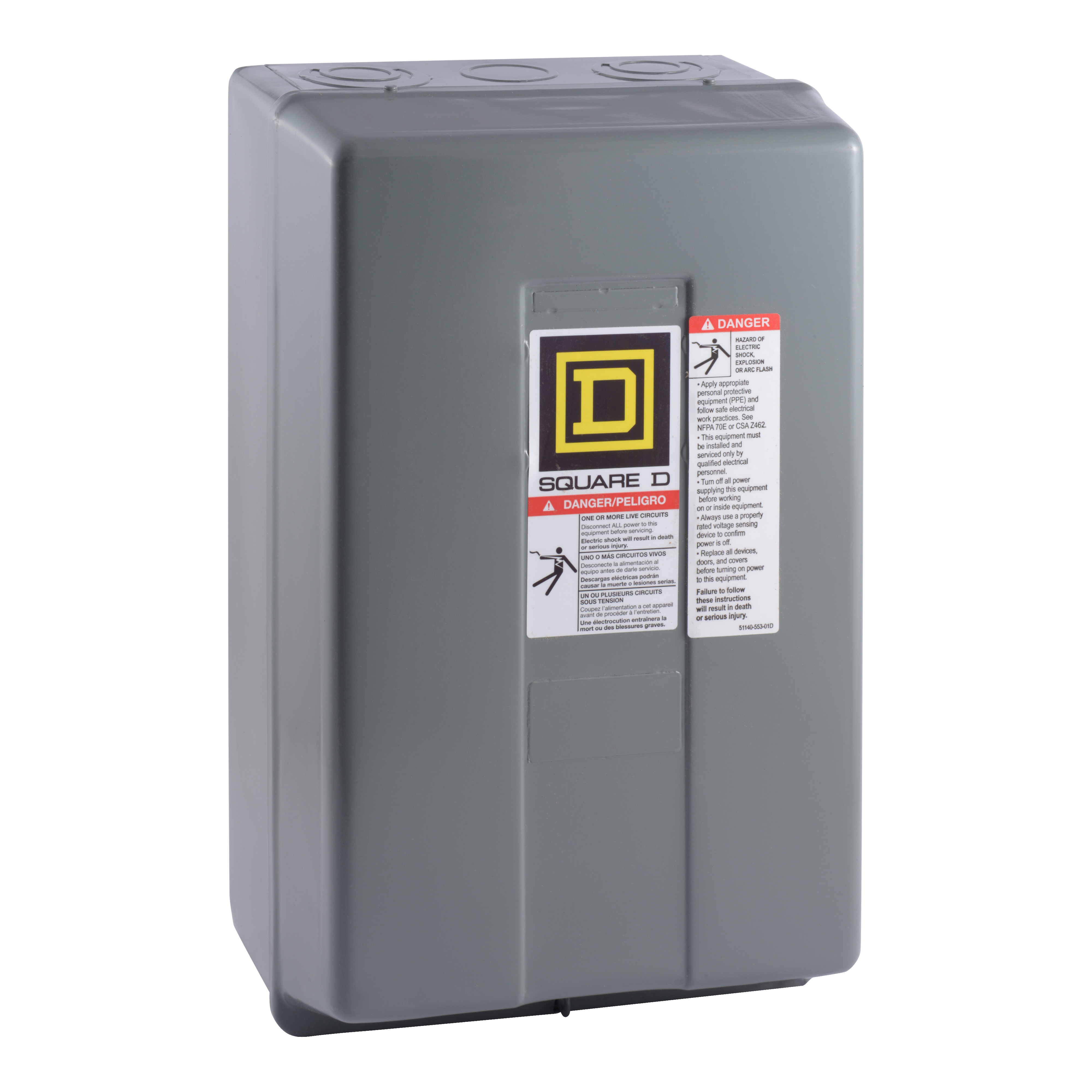

Square D™ 8903LG60V01 LIGHTING CONTACTOR
Square D™
Square D™ 8903LG60V01 LIGHTING CONTACTOR
SKU188126
MFGR #8903LG60V01
Your Cost: $834.06/ea
List: Square D 8903LG60V01 LIGHTING CONTACTOR 600VAC 30A L,24Vac60Hz,30 A,6 NO,6P,8903L,Electrically Held,Multipole Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Square D 8903LG60V01 LIGHTING CONTACTOR 600VAC 30A L,24Vac60Hz,30 A,6 NO,6P,8903L,Electrically Held,Multipole Lighting Contactor,Screw Clamp,UL Listed - CSA Certified,no indicator
Alternate Catalog Number 8903LG60V01 Application ELECTRICALLY HELD ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8903LG60V01 Coil Power Rating 30 Coil Voltage 24 VAC at 60 Hz VAC Connection Screw Clamp Connection Type Screw Clamp Contact Configuration 6NO Contact Rating 30 A Country of Origin MX Currency USD Dimensions 7.8 in W x 6.02 in D x 12.68 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Finish Painted Frequency Rating 50/60 Hz Gross Volume Per Pack 789.75 Gross Volume per Pack Metric 12941.63 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 10.0500 lb Gross Weight per Pack Metric 4.56 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 19.0500 in Height [Metric] 19.0500 cm Indicator No indicator Item Group 21321 Length 33.0200 in Length [Metric] 33.0200 cm Manufacturer Schneider Electric Material Sheet Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=548199&lang=en-us Mounting Type Surface Number Of Poles 6 Operating Cycles 4000 cpm Operating Temperature 0 to 40 Returnable N Series 8903 Size 6P in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand 8903L Terminal Type Screw/Clamp Type Electrically Held Type L UNSPSC 39121529 UPC 11 78590145920 UPC 12 785901459200 Warranty Description Contractual Warranty:18 months Wattage 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Width 20.5740 in Width [Metric] 20.5740 cm ELECTRICALLY HELD SEPARATE CONTROL CIRCUIT 30 A ballast lighting rating, 20 A tungsten lighting rating Silver-cadmium-oxide double break contacts NEMA 1 general purpose enclosure 600 VAC system voltage Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903LG60V01 |
| Application | ELECTRICALLY HELD |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8903LG60V01 |
| Coil Power Rating | 30 |
| Coil Voltage | 24 VAC at 60 Hz VAC |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Contact Configuration | 6NO |
| Contact Rating | 30 A |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.8 in W x 6.02 in D x 12.68 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 789.75 |
| Gross Volume per Pack Metric | 12941.63 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 10.0500 lb |
| Gross Weight per Pack Metric | 4.56 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 19.0500 in |
| Height [Metric] | 19.0500 cm |
| Indicator | No indicator |
| Item Group | 21321 |
| Length | 33.0200 in |
| Length [Metric] | 33.0200 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=548199&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 6 |
| Operating Cycles | 4000 cpm |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 6P in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | 8903L |
| Terminal Type | Screw/Clamp |
| Type | Electrically Held Type L |
| UNSPSC | 39121529 |
| UPC 11 | 78590145920 |
| UPC 12 | 785901459200 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
| Width | 20.5740 in |
| Width [Metric] | 20.5740 cm |
| ELECTRICALLY HELD |
| SEPARATE CONTROL CIRCUIT |
| 30 A ballast lighting rating, 20 A tungsten lighting rating |
| Silver-cadmium-oxide double break contacts |
| NEMA 1 general purpose enclosure |
| 600 VAC system voltage |
| Without indicator |
