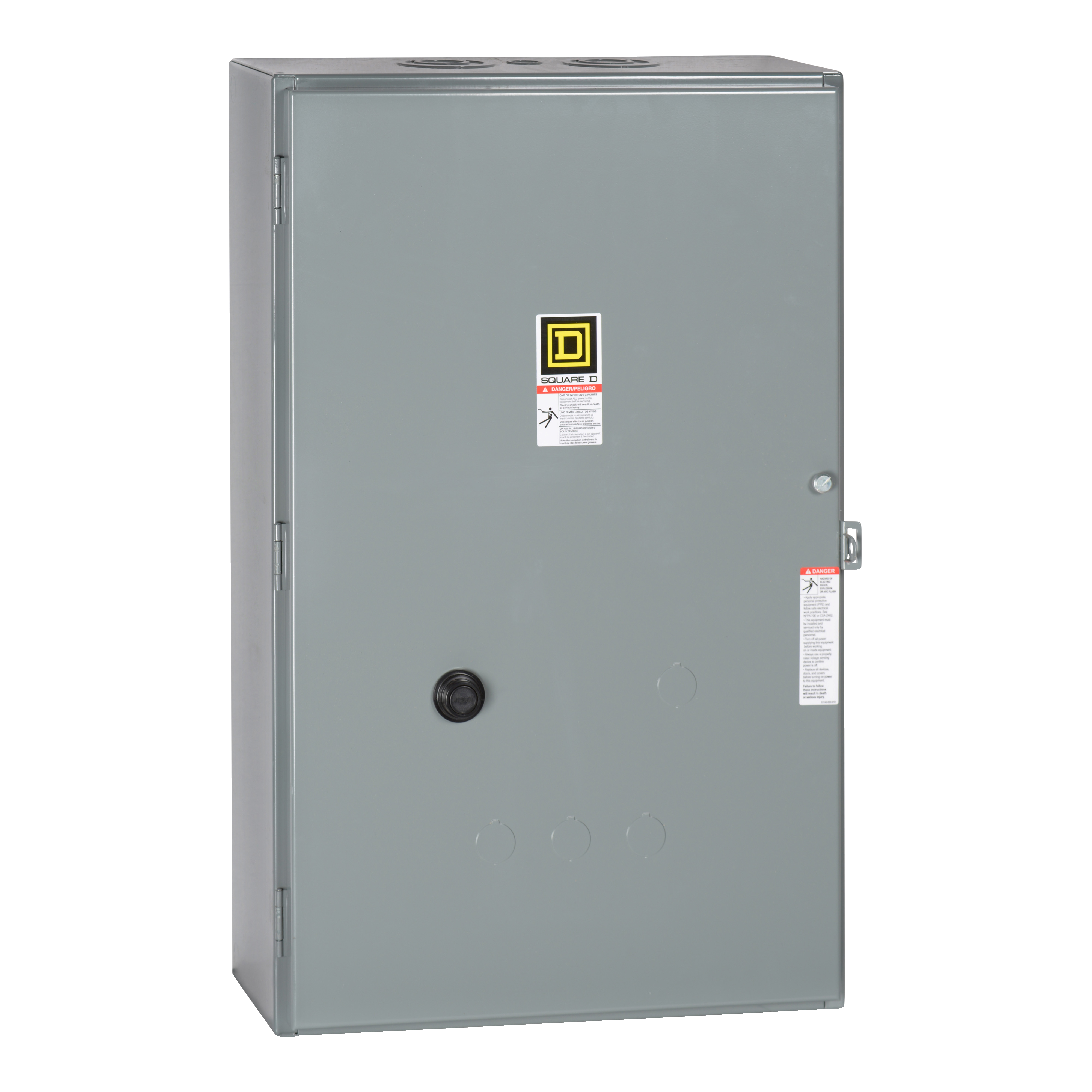

Square D™ 8736SEG2V02S STARTER MOTOR CONT
SKU222660
MFGR #8736SEG2V02S
Your Cost: $5,131.47/ea
Square D 8736SEG2V02S STARTER MOTOR CONTROL <1000VAC,120VAC60Hz - 110VAC50Hz,25HP200VAC - 30HP230VAC - 50HP460/575VAC,3,3 phases,3-Pole,600 V AC,90 A,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,melting alloy 3,starter
Square D 8736SEG2V02S STARTER MOTOR CONTROL <1000VAC,120VAC60Hz - 110VAC50Hz,25HP200VAC - 30HP230VAC - 50HP460/575VAC,3,3 phases,3-Pole,600 V AC,90 A,NEMA 1 painted sheet steel,S,Screw Clamp,UL Listed - CSA Certified,melting alloy 3,starter
Alternate Catalog Number 8736SEG2V02S Amperage Rating 90 A ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8736SEG2V02S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Dimensions 18.15 in W x 9.25 in D x 29.17 in H Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 87.8100 lb Gross Weight per Pack Metric 39.83 Gross Weight UOM Metric kg Item Group 21273 Manufacturer Schneider Electric Material Sheet Steel Motor Power 25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC NEMA Frame Size 3 Number Of Phases 3 Number Of Poles 3 Operating Cycles 5 cpm Operating Temperature 0 to 40 deg C Ambient Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type (3) Thermal Melting Alloy Returnable N Series 8736 Size 235 MM,461 MM,741 MM Standard UL LISTED-NEMA-CSA Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590153600 UPC 12 785901536000 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 18.5 kW at 200 VAC/22 kW at 230 VAC/37 kW at 460/575 VAC SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 1 general purpose enclosure NEMA 3
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 8736SEG2V02S |
| Amperage Rating | 90 A |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8736SEG2V02S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Dimensions | 18.15 in W x 9.25 in D x 29.17 in H |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 87.8100 lb |
| Gross Weight per Pack Metric | 39.83 |
| Gross Weight UOM Metric | kg |
| Item Group | 21273 |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 25 hp at 200 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC |
| NEMA Frame Size | 3 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 5 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | N |
| Series | 8736 |
| Size | 235 MM,461 MM,741 MM |
| Standard | UL LISTED-NEMA-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590153600 |
| UPC 12 | 785901536000 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 18.5 kW at 200 VAC/22 kW at 230 VAC/37 kW at 460/575 VAC |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 1 general purpose enclosure |
| NEMA 3 |
