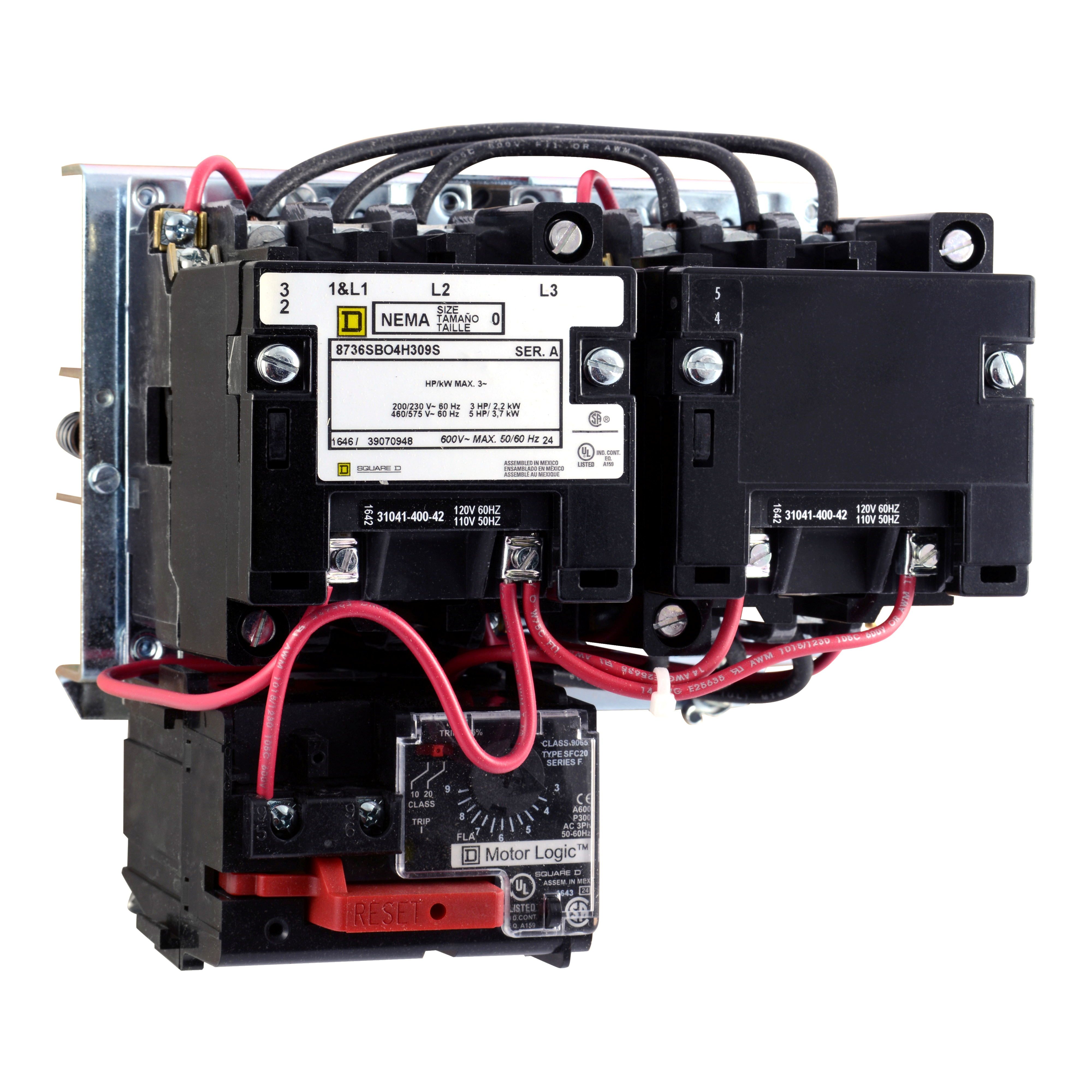

Square D™ 8736SCO8V02H319S REVERSING STAR
NEMA Starters
983345
MFG #: 8736SCO8V02H319S
Square D™
1655.48000
/ ea
Square D 8736SCO8V02H319S REVERSING STARTER 600VAC 27A NEMA,1,120VAC60Hz - 110VAC50Hz,27 A,3 phases,3-Pole,600 V AC,7.5HP200/230VAC - 10HP460/575VAC,S,Screw Clamp,UL Listed - CSA Certified,not rated (open device),solid state Motor Logic class 10/20,starter
- Brochure URL - 1b27ab4ed991044d15147558595d991bbb4abc6a.pdf(Brochure URL)
- Catalog URL - Square_D_8536SGW11V06_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0320801-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_BS1QC6EK8G4PT2J5.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_UQM1I07XCD2Y9WV6.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_L3VHZ2QBD7WMJANR.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_N647OPAQJFUCHTZ8.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/Gy1KrKzer3o(Video)
- Features
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| Ground fault detection and communication capabilities for future enhancement |
| Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection |
| H31 class 10/20 Motor Logic™ solid state |
| NEMA 1 |
