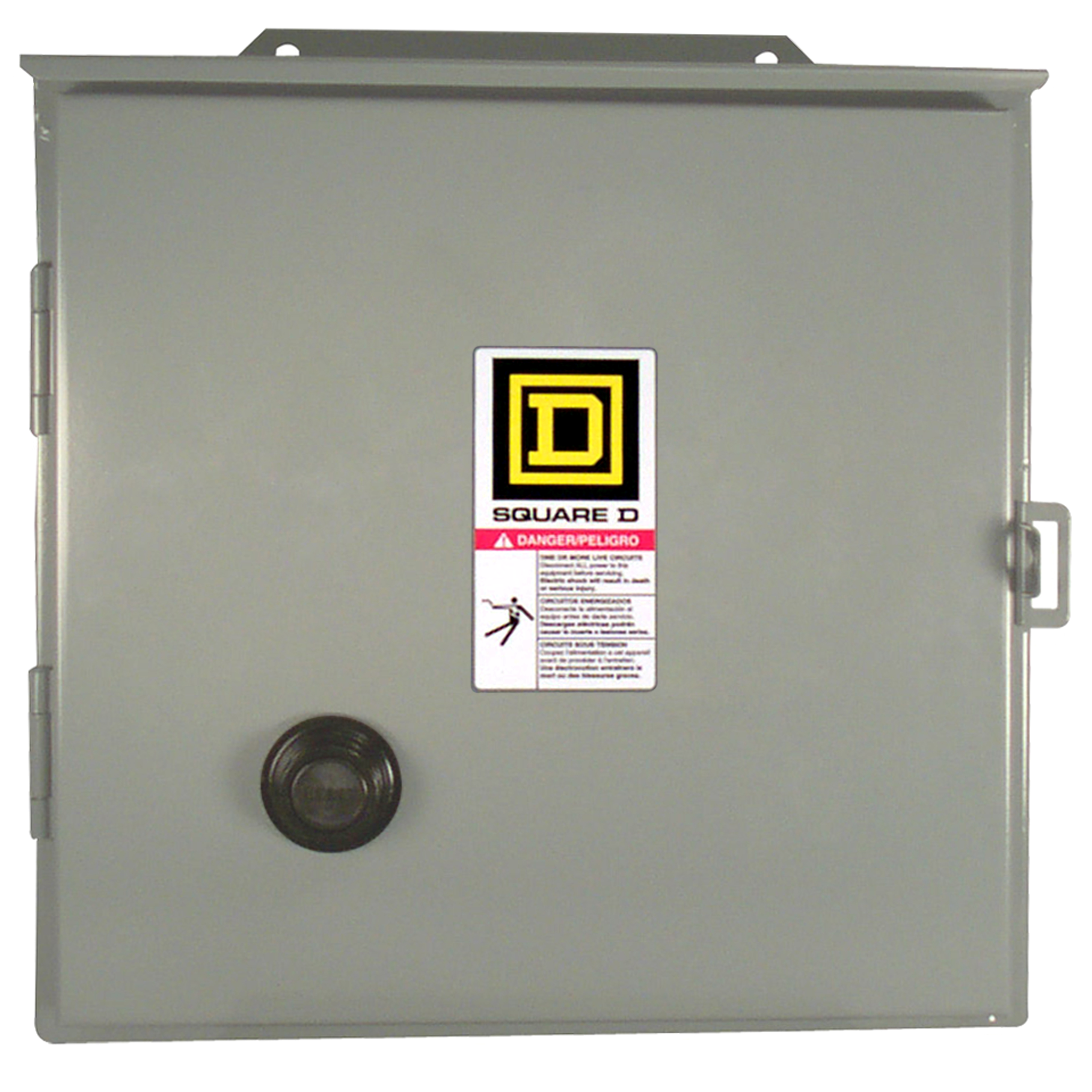

Square D™ 8736SCA4V02S REVERSING STARTER
SKU615019
MFGR #8736SCA4V02S
Your Cost: $1,890.79/ea
Square D 8736SCA4V02S REVERSING STARTER 600VAC 27A NEMA,1,120VAC60Hz - 110VAC50Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 12,Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors
Square D 8736SCA4V02S REVERSING STARTER 600VAC 27A NEMA,1,120VAC60Hz - 110VAC50Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 12,Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors
Action Reversing Alternate Catalog Number 8736SCA4V02S Amperage Rating 27 A Application USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8736SCA4V02S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw Clamp Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 11.89 in W x 7.76 in D x 13.74 in H Enclosure Type NEMA 12 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 19.6100 lb Gross Weight per Pack Metric 8.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 13.61 in Height [Metric] 34.9000 cm Item Group 21272 Length 7.68 in Length [Metric] 19.7000 cm Manufacturer Schneider Electric Material Sheet Steel Motor Power 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC NEMA Frame Size 1 Number Of Poles 3 Operating Cycles 10 cpm Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type (3) Thermal Melting Alloy Returnable N Series 8736 Size 1 Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590175565 UPC 12 785901755654 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC Width 11.78 in Width [Metric] 30.2000 cm USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors NEMA type 12 dust tight and drip tight industrial use enclosure NEMA 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Reversing |
| Alternate Catalog Number | 8736SCA4V02S |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8736SCA4V02S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.89 in W x 7.76 in D x 13.74 in H |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 19.6100 lb |
| Gross Weight per Pack Metric | 8.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 13.61 in |
| Height [Metric] | 34.9000 cm |
| Item Group | 21272 |
| Length | 7.68 in |
| Length [Metric] | 19.7000 cm |
| Manufacturer | Schneider Electric |
| Material | Sheet Steel |
| Motor Power | 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC |
| NEMA Frame Size | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 10 cpm |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | N |
| Series | 8736 |
| Size | 1 |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590175565 |
| UPC 12 | 785901755654 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC |
| Width | 11.78 in |
| Width [Metric] | 30.2000 cm |
| USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 12 dust tight and drip tight industrial use enclosure |
| NEMA 1 |
