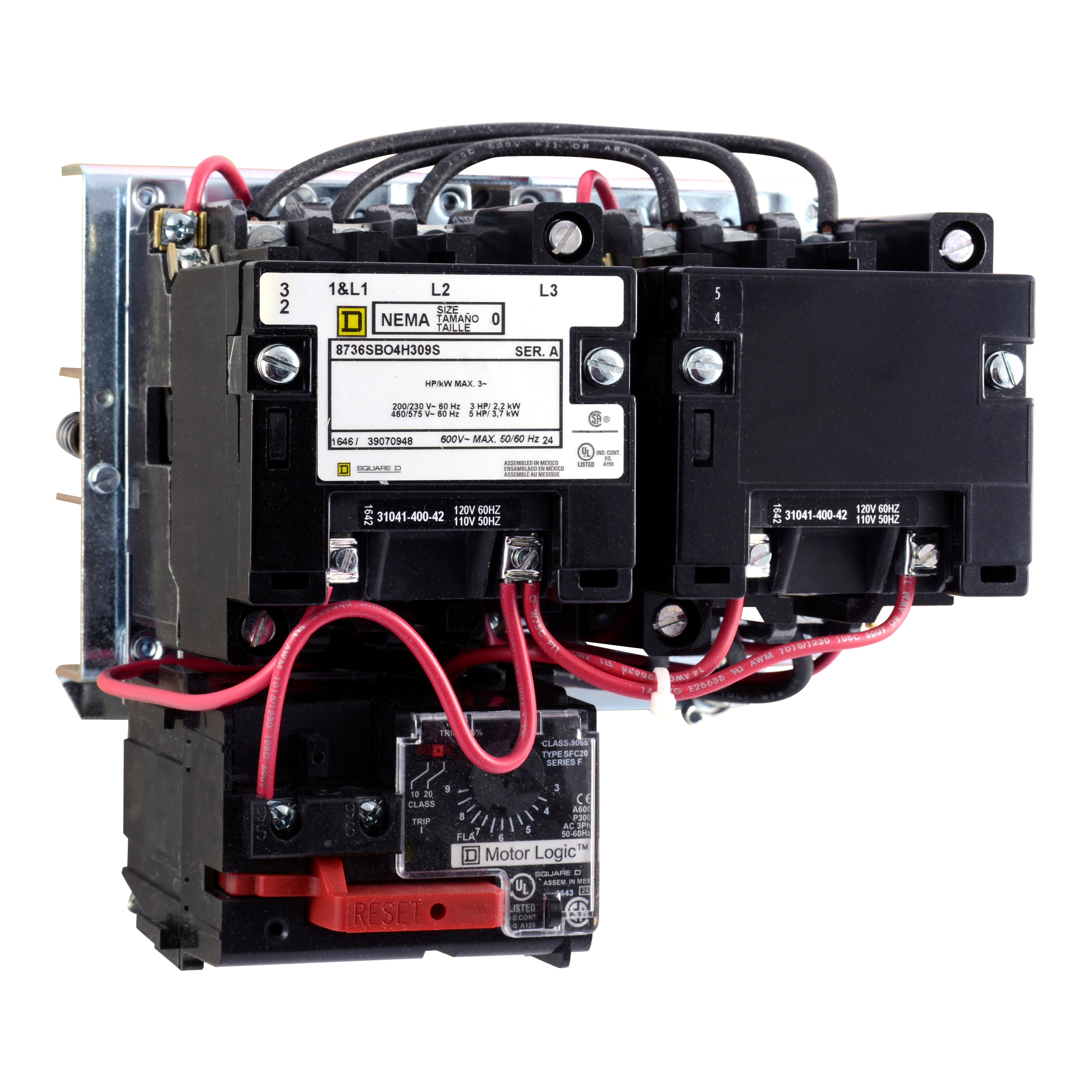

Square D™ 8736SBO4V02H30S REVERSING START
SKU327522
MFGR #8736SBO4V02H30S
Your Cost: $1,115.20/ea
List: Square D 8736SBO4V02H30S REVERSING STARTER 600VAC 18A NEMA,0,120VAC60Hz - 110VAC50Hz,18 A,3-Phase,3HP200/230VAC - 5HP460/575VAC,3P,600VAC,Open,Reversing Starter,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20
Square D 8736SBO4V02H30S REVERSING STARTER 600VAC 18A NEMA,0,120VAC60Hz - 110VAC50Hz,18 A,3-Phase,3HP200/230VAC - 5HP460/575VAC,3P,600VAC,Open,Reversing Starter,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Reversing, Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20
Alternate Catalog Number 8736SBO4V02H30S Amperage Rating 18 A Application USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Buy American Compliant N Catalog Number 8736SBO4V02H30S Connection Screw Clamp Connection Type Screw Clamp Country of Origin MX Currency USD Dimensions 6.93 in W x 5.31 in D x 7.13 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 10.1400 lb Gross Weight per Pack Metric 4.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 21.0820 in Height [Metric] 21.0820 cm Item Group 21271 Length 31.2420 in Length [Metric] 31.2420 cm Motor Power 3 hp at 200/230 VAC/5 hp at 460/575 VAC Number Of Poles 3 Operating Temperature 0 to 40 deg C Ambient Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type Motor Logic™ Solid State Returnable Y Series 8736 Size 0 Standard UL LISTED - CSA CERTIFIED Sub Brand S Substitute Product Catalog Number 9999AC04 UNSPSC 39121521 UPC 11 78590170316 UPC 12 785901703167 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 2.2 kW at 200/230 VAC/3.7 kW at 460/575 VAC Width 21.5900 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Enclosure Type Open Type Type S USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors Ground fault detection and communication capabilities for future enhancement Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection H30 class 10/20 Motor Logic™ solid state NEMA 0
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8736SBO4V02H30S |
| Amperage Rating | 18 A |
| Application | USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 8736SBO4V02H30S |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.93 in W x 5.31 in D x 7.13 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 10.1400 lb |
| Gross Weight per Pack Metric | 4.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 21.0820 in |
| Height [Metric] | 21.0820 cm |
| Item Group | 21271 |
| Length | 31.2420 in |
| Length [Metric] | 31.2420 cm |
| Motor Power | 3 hp at 200/230 VAC/5 hp at 460/575 VAC |
| Number Of Poles | 3 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | Motor Logic™ Solid State |
| Returnable | Y |
| Series | 8736 |
| Size | 0 |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999AC04 |
| UNSPSC | 39121521 |
| UPC 11 | 78590170316 |
| UPC 12 | 785901703167 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 2.2 kW at 200/230 VAC/3.7 kW at 460/575 VAC |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Enclosure Type | Open |
| Type | Type S |
| USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| Ground fault detection and communication capabilities for future enhancement |
| Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection |
| H30 class 10/20 Motor Logic™ solid state |
| NEMA 0 |
