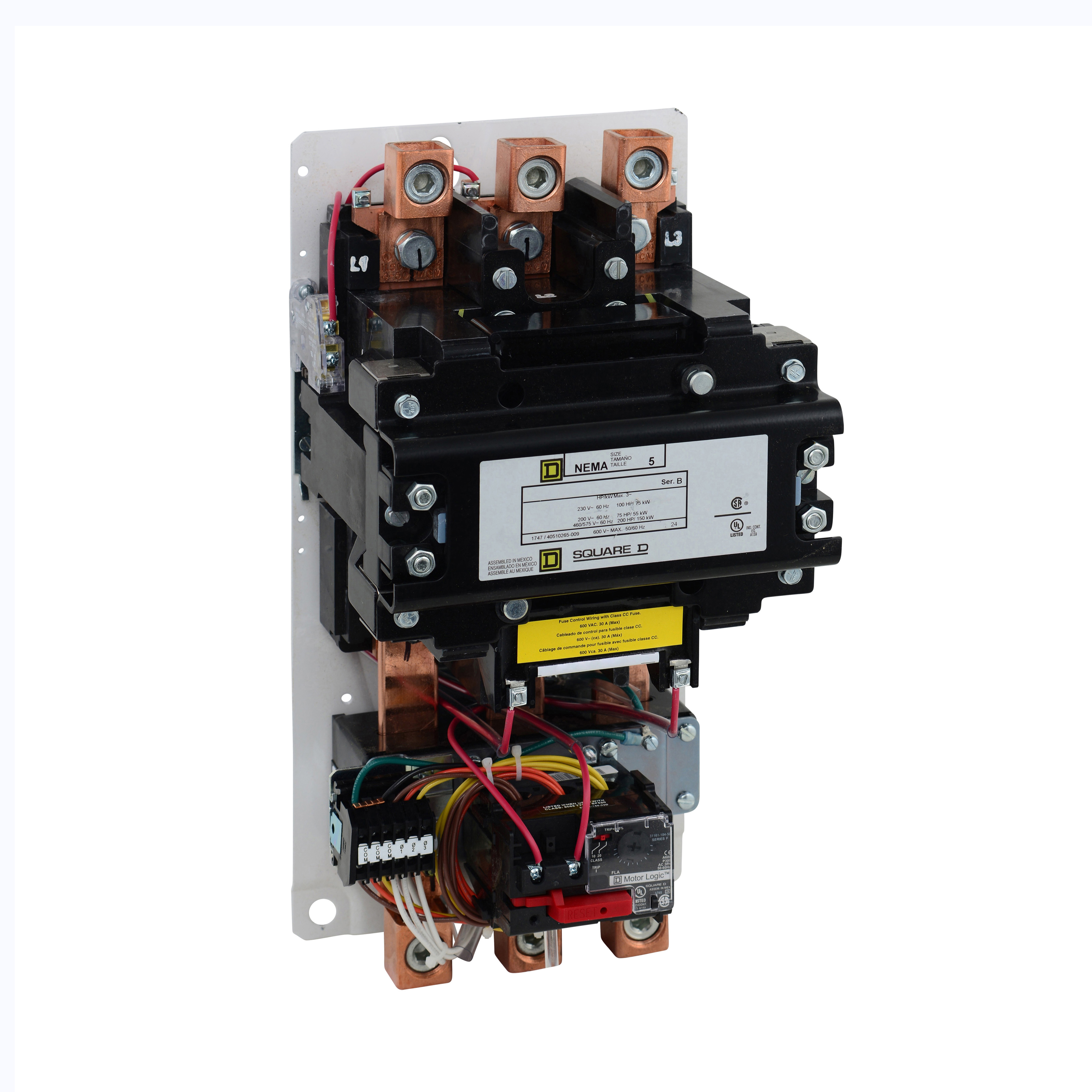

Square D™ 8536SGO1V02H31S STARTER 600VAC
SKU945999
MFGR #8536SGO1V02H31S
Your Cost: $11,225.62/ea
Square D 8536SGO1V02H31S STARTER 600VAC 270A NEMA SPECIAL,120VAC60Hz - 110VAC50Hz,270 A,3 phases,3-Pole,5,600 V AC,75HP200VAC - 100HP230VAC - 200HP460/575VAC,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Square D 8536SGO1V02H31S STARTER 600VAC 270A NEMA SPECIAL,120VAC60Hz - 110VAC50Hz,270 A,3 phases,3-Pole,5,600 V AC,75HP200VAC - 100HP230VAC - 200HP460/575VAC,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,not rated (open device),solid state Motor Logic class 10/20,starter
Alternate Catalog Number 8536SGO1V02H31S Amperage Rating 270 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SGO1V02H31S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin MX Dimensions 217 mm W x 222 mm D x 217 mm H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 53.0000 lb Gross Weight per Pack Metric 24.04 Gross Weight UOM Metric kg Item Group 21194 Manufacturer Schneider Electric Motor Power 75 hp at 200 VAC/100 hp at 230 VAC/200 hp at 460/575 VAC NEMA Frame Size 5 Number Of Phases 3 Number Of Poles 3 Operating Temperature 0 to 40 deg C Ambient Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type Motor Logic™ Solid State Returnable N Series 8536 Size 217 MM,222 MM,446 MM in Standard UL LISTED-NEMA-CSA Stock Status NONSTOCK Sub Brand S Type Type S UNSPSC 39121521 UPC 11 78590178772 UPC 12 785901787723 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 55 kW at 200 VAC/75 kW at 230 VAC/150 kW at 460/575 VAC USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors Ground fault detection and communication capabilities for future enhancement Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection H31 class 10/20 Motor Logic™ solid state NEMA 5
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SGO1V02H31S |
| Amperage Rating | 270 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SGO1V02H31S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | MX |
| Dimensions | 217 mm W x 222 mm D x 217 mm H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 53.0000 lb |
| Gross Weight per Pack Metric | 24.04 |
| Gross Weight UOM Metric | kg |
| Item Group | 21194 |
| Manufacturer | Schneider Electric |
| Motor Power | 75 hp at 200 VAC/100 hp at 230 VAC/200 hp at 460/575 VAC |
| NEMA Frame Size | 5 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | Motor Logic™ Solid State |
| Returnable | N |
| Series | 8536 |
| Size | 217 MM,222 MM,446 MM in |
| Standard | UL LISTED-NEMA-CSA |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590178772 |
| UPC 12 | 785901787723 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 55 kW at 200 VAC/75 kW at 230 VAC/150 kW at 460/575 VAC |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| Ground fault detection and communication capabilities for future enhancement |
| Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection |
| H31 class 10/20 Motor Logic™ solid state |
| NEMA 5 |
