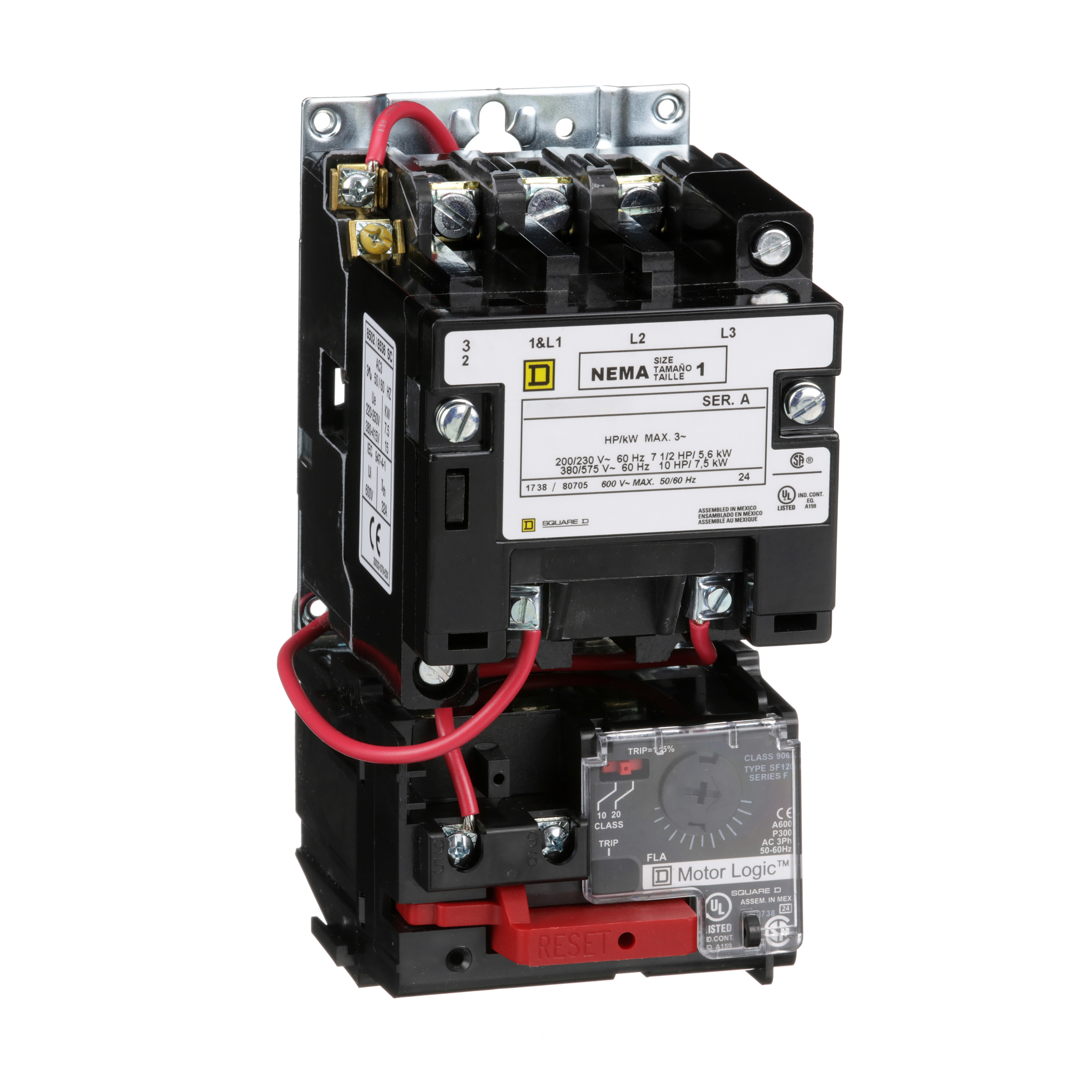

Square D™ 8536SCO3V02H31S STARTER 600VAC
SKU789637
MFGR #8536SCO3V02H31S
Your Cost: $588.79/ea
List: Square D 8536SCO3V02H31S STARTER 600VAC 27AMP NEMA +OPTIONS,1,120VAC60Hz - 110VAC50Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,Non-Reversing Starter,Open,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20
Square D 8536SCO3V02H31S STARTER 600VAC 27AMP NEMA +OPTIONS,1,120VAC60Hz - 110VAC50Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,Non-Reversing Starter,Open,S,Screw Clamp,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors,solid state Motor Logic class 10/20
Alternate Catalog Number 8536SCO3V02H31S Amperage Rating 27 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8536SCO3V02H31S Coil Voltage 110 VAC at 50 Hz/120 VAC at 60 Hz Connection Screw Clamp Connection Type Screw Clamp Country of Origin UKN Currency USD Dimensions 3.5 in W x 4.21 in D x 6.77 in H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 5.0000 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 6.75 in Height [Metric] 17.3000 cm Item Group 21192 Length 4.17 in Length [Metric] 10.7000 cm Manufacturer Schneider Electric Motor Power 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC NEMA Frame Size 1 Number Of Phases 3 Number Of Poles 3 Operating Temperature 0 to 40 deg C Ambient Overload Relay Solid State Motor Logic Phase 3 pH Power Supply 120VAC@60HZ - 110VAC@50HZ Reset Type Motor Logic™ Solid State Returnable N Series 8536 Size 1 in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand S Substitute Product Catalog Number 9999SX7 Type Type S UNSPSC 39121521 UPC 11 78590166678 UPC 12 785901666783 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Wattage 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC Width 3.47 IN Width [Metric] 8.9000 cm USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS Used for full voltage starting and stopping AC squirrel cage motors Ground fault detection and communication capabilities for future enhancement Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection H31 class 10/20 Motor Logic™ solid state NEMA 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SCO3V02H31S |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8536SCO3V02H31S |
| Coil Voltage | 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | UKN |
| Currency | USD |
| Dimensions | 3.5 in W x 4.21 in D x 6.77 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 5.0000 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 6.75 in |
| Height [Metric] | 17.3000 cm |
| Item Group | 21192 |
| Length | 4.17 in |
| Length [Metric] | 10.7000 cm |
| Manufacturer | Schneider Electric |
| Motor Power | 7.5 hp at 200/230 VAC/10 hp at 460/575 VAC |
| NEMA Frame Size | 1 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Solid State Motor Logic |
| Phase | 3 pH |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | Motor Logic™ Solid State |
| Returnable | N |
| Series | 8536 |
| Size | 1 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | S |
| Substitute Product Catalog Number | 9999SX7 |
| Type | Type S |
| UNSPSC | 39121521 |
| UPC 11 | 78590166678 |
| UPC 12 | 785901666783 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC |
| Width | 3.47 IN |
| Width [Metric] | 8.9000 cm |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| Ground fault detection and communication capabilities for future enhancement |
| Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection |
| H31 class 10/20 Motor Logic™ solid state |
| NEMA 1 |
