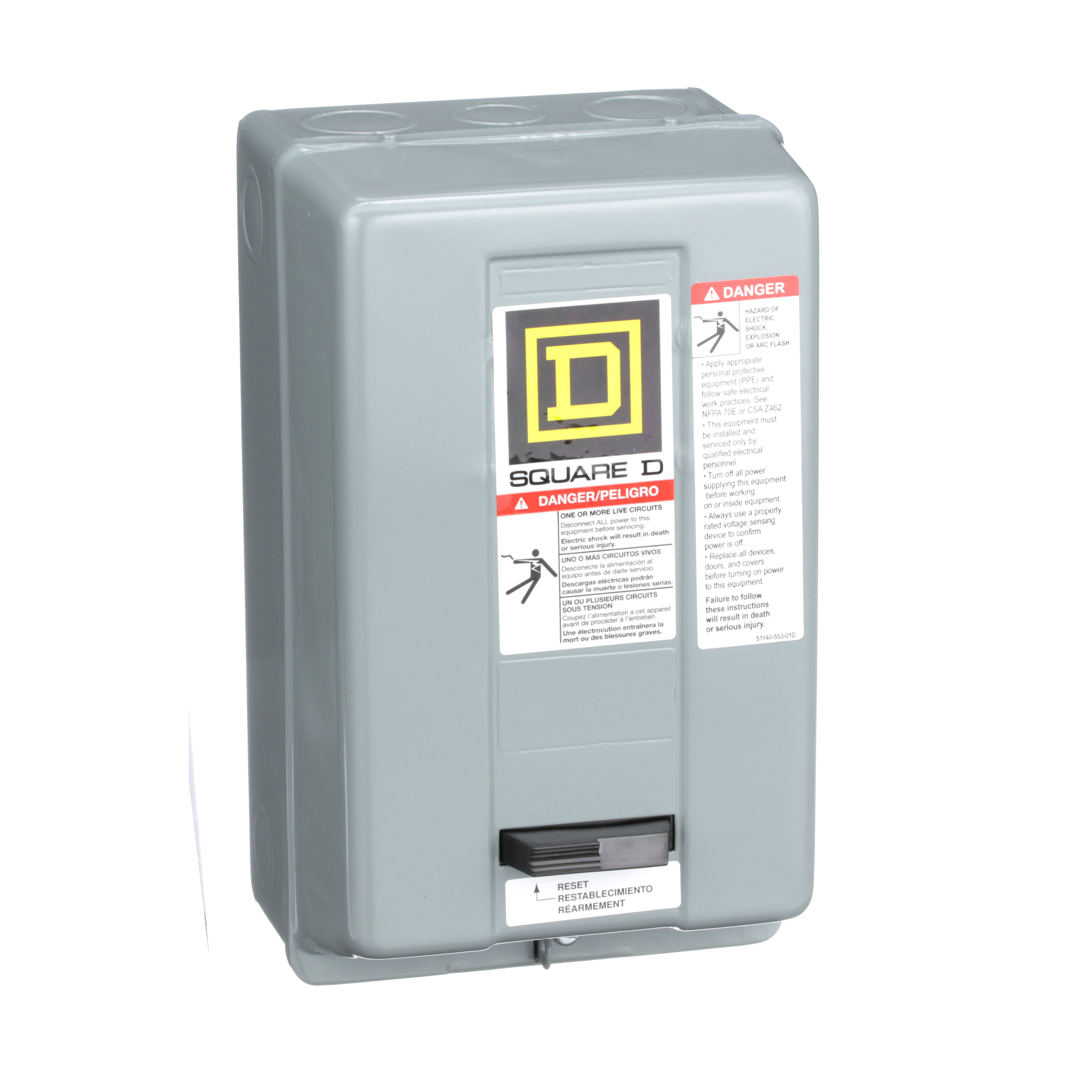

Square D™ 8536S Type S Non-Reversing Starter, 208 VAC Coil, 3-Poles, NEMA 1 Enclosure
Custom_Product_Images_Illustration
Square D™ 8536S Type S Non-Reversing Starter, 208 VAC Coil, 3-Poles, NEMA 1 Enclosure
SKU358167
MFGR #8536SCG3V08S
Your Cost: $702.94/ea
Square D 8536SCG3V08S STARTER MOTOR CONTROL <1000VAC,1,208VAC60Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 1,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Square D 8536SCG3V08S STARTER MOTOR CONTROL <1000VAC,1,208VAC60Hz,27 A,3-Phase,3P,600VAC,7.5HP200/230VAC - 10HP460/575VAC,NEMA 1,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
Alternate Catalog Number 8536SCG3V08S Amperage Rating 27 A Application USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS ARRA Compliant N Buy American Compliant N Catalog Number 8536SCG3V08S Connection Screw Clamp Connection Type Screw Clamp Country of Origin US Currency USD Dimensions 10 in H x 5.98 in W x 5.55 in D EU RoHS Indicator Y Frequency Rating 60 Hz Gross Volume Per Pack 448.50 Gross Volume per Pack Metric 7349.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.4500 lb Gross Weight per Pack Metric 3.38 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 15.2400 in Height [Metric] 15.2400 cm Item Group 21192 Length 29.2100 in Length [Metric] 29.2100 cm Material Steel Motor Power 7-1/2, 10 hp NEMA Frame Size 1 Number Of Phases 3 Number Of Poles 3 Overload Relay Melting Alloy 3 Phase 3 pH Power Supply 208VAC@60HZ Reset Type THERMAL - MELTING ALLOY Returnable Y Series 8536S Size 1 in Standard UL LISTED - CSA CERTIFIED Standards UL Listed, CSA Certified, RoHS Compliant Sub Brand S UNSPSC 39121521 UPC 11 78590134094 UPC 12 785901340942 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 16.5100 in Width [Metric] 16.5100 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 208 VAC Enclosure Type NEMA 1 Type Type S Non-Reversing USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS SCREW CLAMP TERMINALS 7.5 hp at 200/230 VAC, 10 hp at 460/575 VAC NEMA 1 painted sheet steel Melting alloy 3 overload relay
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8536SCG3V08S |
| Amperage Rating | 27 A |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 8536SCG3V08S |
| Connection | Screw Clamp |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 10 in H x 5.98 in W x 5.55 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 448.50 |
| Gross Volume per Pack Metric | 7349.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.4500 lb |
| Gross Weight per Pack Metric | 3.38 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 15.2400 in |
| Height [Metric] | 15.2400 cm |
| Item Group | 21192 |
| Length | 29.2100 in |
| Length [Metric] | 29.2100 cm |
| Material | Steel |
| Motor Power | 7-1/2, 10 hp |
| NEMA Frame Size | 1 |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Overload Relay | Melting Alloy 3 |
| Phase | 3 pH |
| Power Supply | 208VAC@60HZ |
| Reset Type | THERMAL - MELTING ALLOY |
| Returnable | Y |
| Series | 8536S |
| Size | 1 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Sub Brand | S |
| UNSPSC | 39121521 |
| UPC 11 | 78590134094 |
| UPC 12 | 785901340942 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.5100 in |
| Width [Metric] | 16.5100 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 208 VAC |
| Enclosure Type | NEMA 1 |
| Type | Type S Non-Reversing |
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| 7.5 hp at 200/230 VAC, 10 hp at 460/575 VAC |
| NEMA 1 painted sheet steel |
| Melting alloy 3 overload relay |
