Square D™ 8502SGO2V02S CONTACTOR 600VAC 2
Custom_Product_Images_Illustration
Square D™

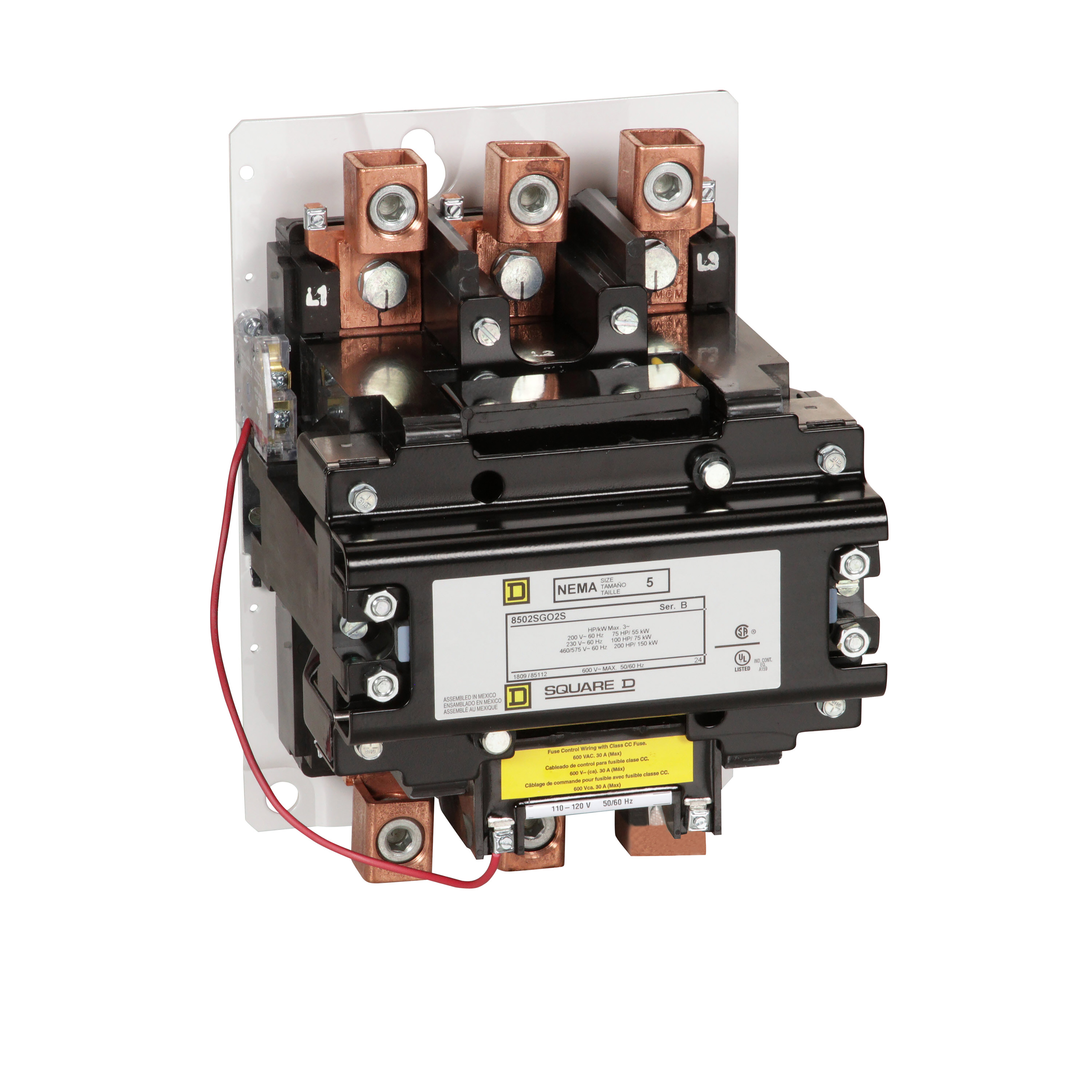

Square D™ 8502SGO2V02S CONTACTOR 600VAC 2
SKU99922
MFGR #8502SGO2V02S
Your Cost: $6,982.66/ea
List: Square D 8502SGO2V02S CONTACTOR 600VAC 270AMP NEMA +OPTIONS,120VAC60Hz - 110VAC50Hz,3-Phase,3-Pole,5,8502S,Box Lug,Non-Reversing Contactor,UL Listed - CSA Certified,Used to switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately,no indicator
Square D 8502SGO2V02S CONTACTOR 600VAC 270AMP NEMA +OPTIONS,120VAC60Hz - 110VAC50Hz,3-Phase,3-Pole,5,8502S,Box Lug,Non-Reversing Contactor,UL Listed - CSA Certified,Used to switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately,no indicator
Alternate Catalog Number 8502SGO2V02S ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 8502SGO2V02S Coil Power Rating 75 hp at 200 VAC/100 hp at 230 VAC/200 hp at 460/575 VAC Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz Connection Box lug Connection Type 5 Contact Configuration 3-POLE Contact Rating 270 A Country of Origin US Currency USD Dimensions 220 mm W x 222 mm D x 313 mm H Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 1557.36 Gross Volume per Pack Metric 25520.46 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 46.5400 lb Gross Weight per Pack Metric 21.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 26.1620 in Height [Metric] 26.2000 cm Indicator No indicator Item Group 21194 Length 35.5600 in Length [Metric] 35.3000 cm Manufacturer Schneider Electric NEMA Size 5 Number Of Poles 3 Operating Cycles 2 cpm Operating Temperature 0 to 40 Phase 3-Phase Returnable Y Series 8502 Size 5 in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand 8502S Substitute Product Catalog Number 9999SX6 Terminal Type Screw/Clamp Type Non-Reversing Type S UNSPSC 39121529 UPC 11 78590185112 UPC 12 785901851127 Warranty Description Contractual Warranty:18 months Wattage 55 kW at 200 V/75 kW at 230 V/150 kW at 460/575 V Width 27.4320 in Width [Metric] 27.9000 cm Non-reversing;Circuit-breaker 400 A maximum, SCCR: 100 kA at 480 V AC;fuse J 400 A maximum, SCCR: 100 kA at 600 V AC;fuse T 400 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 400 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 400 A maximum, SCCR: 100 kA at 600 V AC 75 HP 200 V AC-100 HP 230 V AC-200 HP 460 V AC-200 HP 575 V AC,SEPARATE CONTROL CIRCUIT A normally open holding circuit contact for three wire control is provided as standard For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations Bell crank design promotes superior electrical and mechanical life NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact Used to switch heating loads capacitors, transformers and electric motors where overload protections is provided separately 600 VAC system voltage Screw clamp terminal Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8502SGO2V02S |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 8502SGO2V02S |
| Coil Power Rating | 75 hp at 200 VAC/100 hp at 230 VAC/200 hp at 460/575 VAC |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz |
| Connection | Box lug |
| Connection Type | 5 |
| Contact Configuration | 3-POLE |
| Contact Rating | 270 A |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 220 mm W x 222 mm D x 313 mm H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1557.36 |
| Gross Volume per Pack Metric | 25520.46 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 46.5400 lb |
| Gross Weight per Pack Metric | 21.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 26.1620 in |
| Height [Metric] | 26.2000 cm |
| Indicator | No indicator |
| Item Group | 21194 |
| Length | 35.5600 in |
| Length [Metric] | 35.3000 cm |
| Manufacturer | Schneider Electric |
| NEMA Size | 5 |
| Number Of Poles | 3 |
| Operating Cycles | 2 cpm |
| Operating Temperature | 0 to 40 |
| Phase | 3-Phase |
| Returnable | Y |
| Series | 8502 |
| Size | 5 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | 8502S |
| Substitute Product Catalog Number | 9999SX6 |
| Terminal Type | Screw/Clamp |
| Type | Non-Reversing Type S |
| UNSPSC | 39121529 |
| UPC 11 | 78590185112 |
| UPC 12 | 785901851127 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 55 kW at 200 V/75 kW at 230 V/150 kW at 460/575 V |
| Width | 27.4320 in |
| Width [Metric] | 27.9000 cm |
| Non-reversing;Circuit-breaker 400 A maximum, SCCR: 100 kA at 480 V AC;fuse J 400 A maximum, SCCR: 100 kA at 600 V AC;fuse T 400 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 400 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 400 A maximum, SCCR: 100 kA at 600 V AC |
| 75 HP 200 V AC-100 HP 230 V AC-200 HP 460 V AC-200 HP 575 V AC,SEPARATE CONTROL CIRCUIT |
| A normally open holding circuit contact for three wire control is provided as standard |
| For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations |
| Bell crank design promotes superior electrical and mechanical life |
| NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage |
| NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source |
| Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact |
| Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact |
| Used to switch heating loads capacitors, transformers and electric motors where overload protections is provided separately |
| 600 VAC system voltage |
| Screw clamp terminal |
| Without indicator |
