Square D™ 8502SBO2V08 CONTACTOR 600VAC 18
NEMA & IEC Contactors
297775
MFG #: 8502SBO2V08
Square D™
414.00000
/ ea

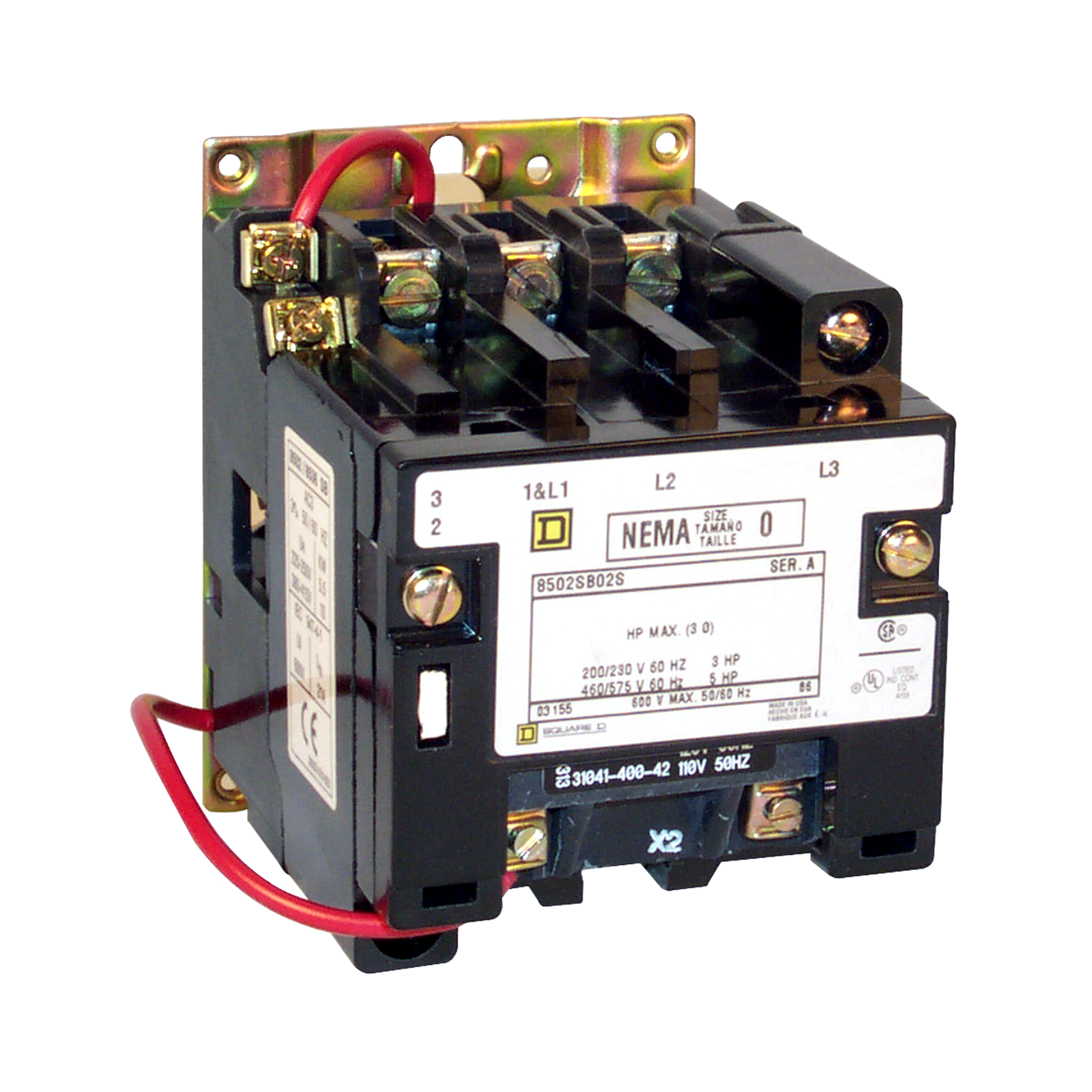

Square D 8502SBO2V08 CONTACTOR 600VAC 18AMP NEMA +OPTIONS,0,208VAC60Hz,3-Phase,3-Pole,8502S,Non-Reversing Contactor,Screw Clamp,UL Listed - CSA Certified,Used to switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately,no indicator
- Brochure URL - 1b27ab4ed991044d15147558595d991bbb4abc6a.pdf(Brochure URL)
- Catalog URL - Square_D_8502SDW12V06_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=8502SCO1V02S.dwf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0300201-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_BH9FWRCY784JTSGZ.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=30072-013-09.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_8502SBO2V08_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_XWO1MUKQRVCY8IL5.pdf(Spec Sheet URL)
- Spec Sheet URL - 53f72a9e96f145a39ae15f2bfd629c3240616180.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Bulletin URL - cf57f551292bfed3bee2fd92787f7a3f0929f473.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_8CNYU16I3J5RP0X9.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_QEAIY02HWNLBSKPG.dwg(Tech Drawing URL)
- Tech Drawing URL - bb5f3ba08fef921d2ff8415e45eca7e8f0bdc28b.pdf(Tech Drawing URL)
- Applications
- Features
Non-reversing;Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC;fuse J 60 A maximum, SCCR: 100 kA at 600 V AC;fuse T 60 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
3 HP 200 V AC-3 HP 230 V AC-5 HP 460 V AC-5 HP 575 V AC,COMMON CONTROL CIRCUIT |
A normally open holding circuit contact for three wire control is provided as standard |
For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations |
Bell crank design promotes superior electrical and mechanical life |
NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage |
NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source |
Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact |
Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact |
Used to switch heating loads capacitors, transformers and electric motors where overload protections is provided separately |
600 VAC system voltage |
Without indicator |
