Square D™

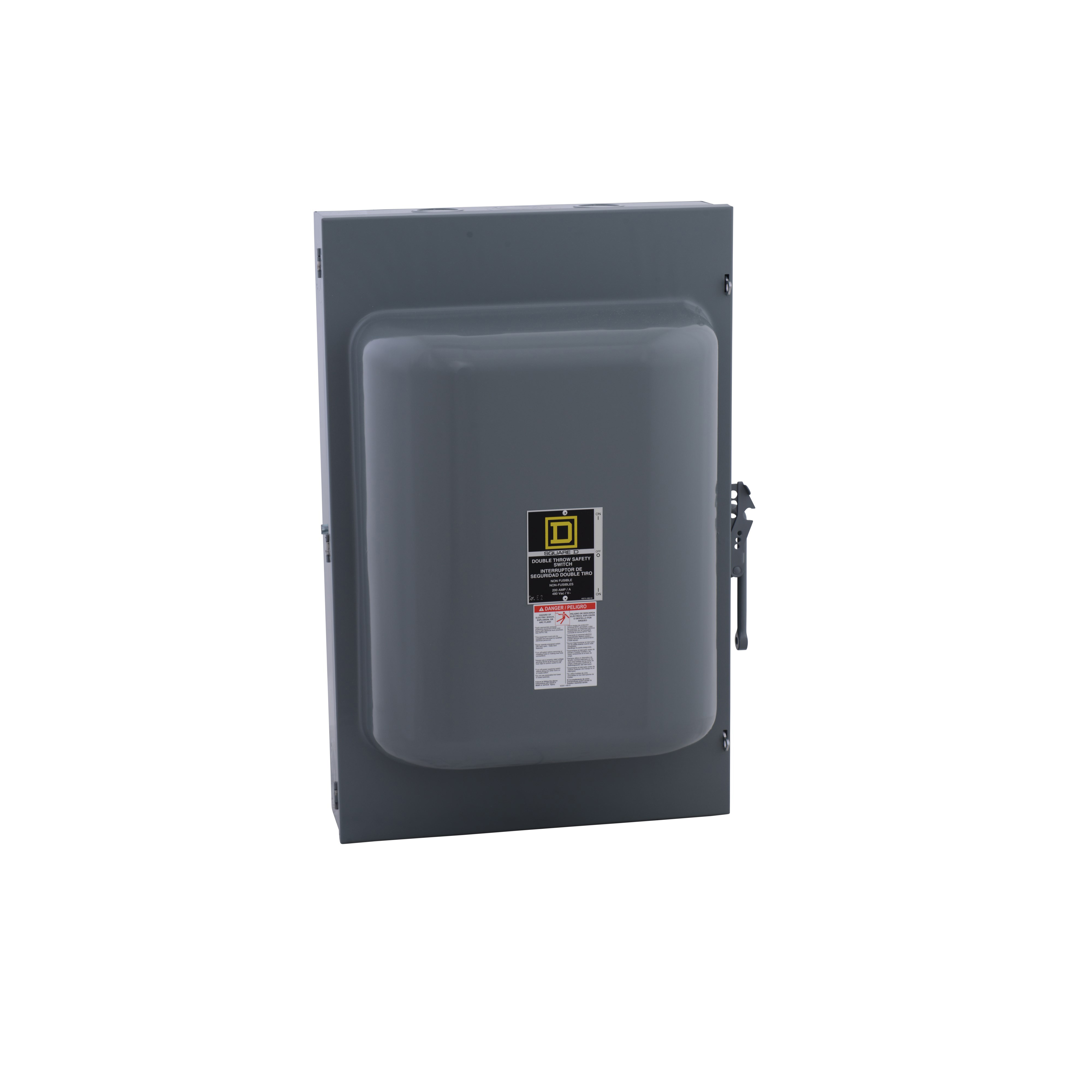

Square D™ 82344N SW NOT FUSIBLE DT 600V 2
Custom_Product_Images_Illustration
Square D™
Square D™ 82344N SW NOT FUSIBLE DT 600V 2
SKU467832
MFGR #82344N
Your Cost: $2,911.61/ea
List: Square D 82344N SW NOT FUSIBLE DT 600V 200A 3P W/NEUTRAL,200A,3-Pole,NEMA 1,UL Listed,surface,switching device
Square D 82344N SW NOT FUSIBLE DT 600V 200A 3P W/NEUTRAL,200A,3-Pole,NEMA 1,UL Listed,surface,switching device
Alternate Catalog Number 82344N ARRA Compliant N Buy American Compliant N Catalog Number 82344N Country of Origin MX Currency USD Dimensions 30.88 in H x 20 in W x 11.75 in D Enclosure NEMA 1 STEEL Enclosure Type NEMA 1 EU RoHS Indicator Y Gross Weight Per Pack 63.4900 lb Gross Weight per Pack Metric 28.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 4.0000 in Item Group 00033 Length 3.0000 in Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=362809&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Number of Wires 1 Phase 3 Returnable N Series E2 Short Circuit Current Rating 10 kA Size 11.75 IN,23.88 IN,30.88 IN Standard UL LISTED Substitute Product Catalog Number B150 Type Non-Fusible UNSPSC 39122218 UPC 11 78590111939 UPC 12 785901119395 Warranty Description Contractual Warranty:18 months Width 2.0000 in Wire Type AWG 6...300 kcmil copper or aluminium Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Contact Form TPDT Voltage Rating 600 VAC//VDC STEEL Suitable for use as service entrance equipment Quick make, quick break operating mechanism Visible blade switches for positive "OFF" indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 82344N |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 82344N |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 30.88 in H x 20 in W x 11.75 in D |
| Enclosure | NEMA 1 STEEL |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 63.4900 lb |
| Gross Weight per Pack Metric | 28.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 4.0000 in |
| Item Group | 00033 |
| Length | 3.0000 in |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=362809&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 1 |
| Phase | 3 |
| Returnable | N |
| Series | E2 |
| Short Circuit Current Rating | 10 kA |
| Size | 11.75 IN,23.88 IN,30.88 IN |
| Standard | UL LISTED |
| Substitute Product Catalog Number | B150 |
| Type | Non-Fusible |
| UNSPSC | 39122218 |
| UPC 11 | 78590111939 |
| UPC 12 | 785901119395 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.0000 in |
| Wire Type | AWG 6...300 kcmil copper or aluminium |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Contact Form | TPDT |
| Voltage Rating | 600 VAC//VDC |
| STEEL |
| Suitable for use as service entrance equipment |
| Quick make, quick break operating mechanism |
| Visible blade switches for positive "OFF" indication |
