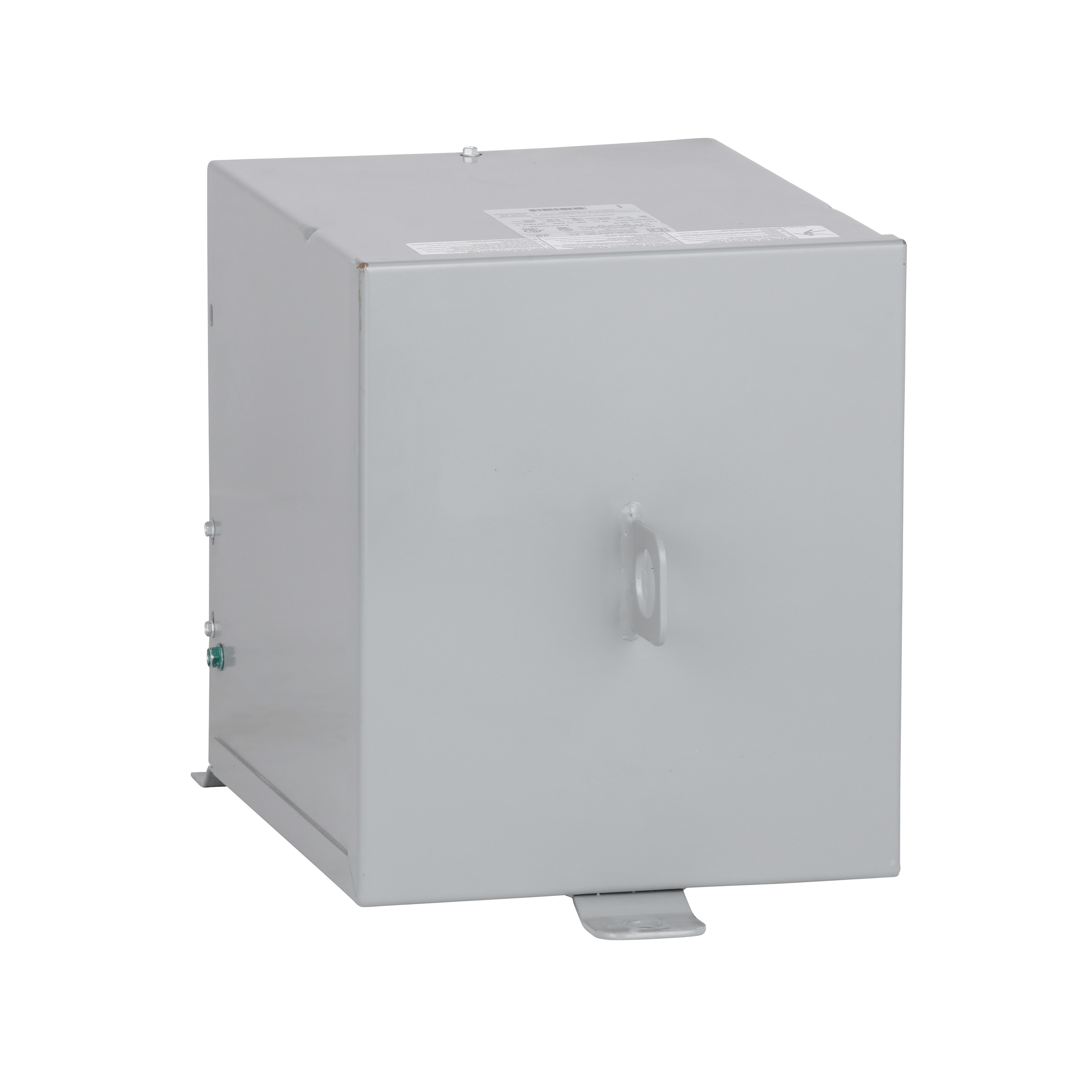

Square D™ 5S4F TRANSFORMER DRY 1PH 5KVA 6
SKU418202
MFGR #5S4F
Your Cost: $2,702.67/ea
Square D 5S4F TRANSFORMER DRY 1PH 5KVA 600V-120/240V,(2) 5 FCBN,1 phase,115 Degrees C,120/240VAC,180 deg.C,5 kVA,600VAC,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Square D 5S4F TRANSFORMER DRY 1PH 5KVA 600V-120/240V,(2) 5 FCBN,1 phase,115 Degrees C,120/240VAC,180 deg.C,5 kVA,600VAC,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Alternate Catalog Number 5S4F Application GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS ARRA Compliant N Buy American Compliant N Catalog Number 5S4F Country of Origin US Currency USD Dimensions 9-3/4 in W x 11-3/4 in D x 14-3/4 in H Enclosure Painted sheet steel;13B EU RoHS Indicator Y Gross Volume Per Pack 2072.07 Gross Volume per Pack Metric 33955.01 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 114.9900 lb Gross Weight per Pack Metric 52.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 36.3220 in Height [Metric] 36.3220 cm Housing Material Sheet Steel Insulation Class 115 Item Group 16277 KVA Rating 5 kVA Length 26.6700 in Length [Metric] 26.6700 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456075&lang=en-us Mounting Wall Mounted Mounting Type Wall Number Of Taps 2 Returnable Y Standard CSA-UL LISTED-CULUS Substitute Product Catalog Number 5S1F Temperature Rating 115 DEGREES C Type Dry Sealed UNSPSC 39121001 UPC 11 78590135963 UPC 12 785901359630 Warranty Description Contractual Warranty:18 months Width 35.0520 in Width [Metric] 35.0520 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 1 pH Power Rating 5 kVA Primary Voltage 600 VAC Secondary Voltage 120/240 VAC GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS DRY SEALED TRANSFORMER Painted finish Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories Resin-filled transformers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 5S4F |
| Application | GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 5S4F |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 9-3/4 in W x 11-3/4 in D x 14-3/4 in H |
| Enclosure | Painted sheet steel;13B |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2072.07 |
| Gross Volume per Pack Metric | 33955.01 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 114.9900 lb |
| Gross Weight per Pack Metric | 52.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 36.3220 in |
| Height [Metric] | 36.3220 cm |
| Housing Material | Sheet Steel |
| Insulation Class | 115 |
| Item Group | 16277 |
| KVA Rating | 5 kVA |
| Length | 26.6700 in |
| Length [Metric] | 26.6700 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456075&lang=en-us |
| Mounting | Wall Mounted |
| Mounting Type | Wall |
| Number Of Taps | 2 |
| Returnable | Y |
| Standard | CSA-UL LISTED-CULUS |
| Substitute Product Catalog Number | 5S1F |
| Temperature Rating | 115 DEGREES C |
| Type | Dry Sealed |
| UNSPSC | 39121001 |
| UPC 11 | 78590135963 |
| UPC 12 | 785901359630 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 35.0520 in |
| Width [Metric] | 35.0520 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 pH |
| Power Rating | 5 kVA |
| Primary Voltage | 600 VAC |
| Secondary Voltage | 120/240 VAC |
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Painted finish |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin-filled transformers |
