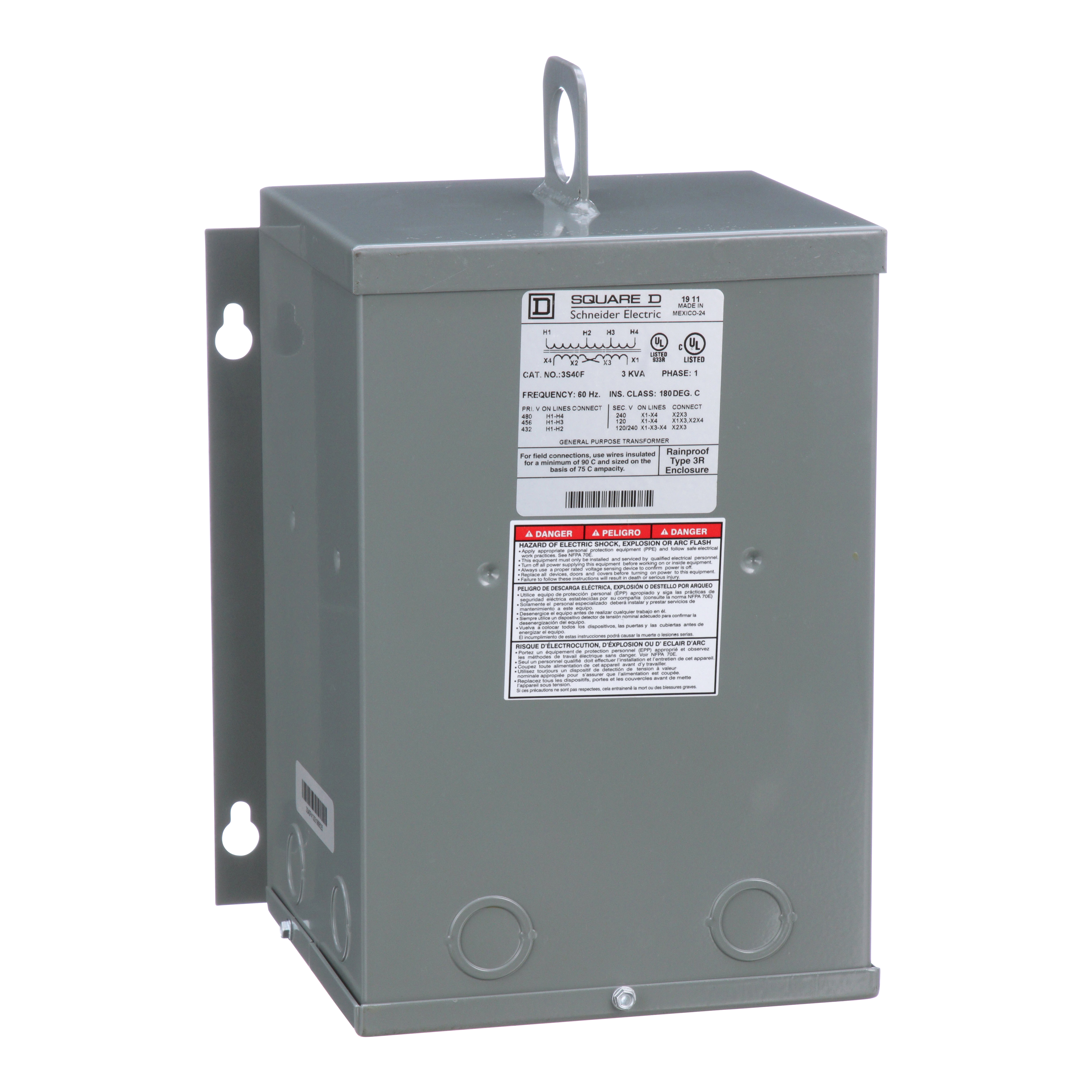

Square D™ 3S40F TRANSFORMER DRY 1PH 3KVA
General Purpose - Multi-Use Transformers
33112
MFG #: 3S40F
Square D™
1523.10000
/ ea
Square D 3S40F TRANSFORMER DRY 1PH 3KVA 480V-120/240V,1-Phase,115 Degrees C,120/240V60Hz,180 Degrees C,3kVA,480V,General Purpose - Intended for power, heating and lighting applications,Painted Steel,Sealed,Wall,cULus Listed
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8002647360Den&ext=webp(360 Degree View URL)
- Brochure URL - c5cb230133234aed14925dde8e73fa734a010f83.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_35f928f3b9c72a47fe6f7d69625b65faf2d87caff4fe70835fbbd692da225585.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3589.DWF(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3589.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_Y1GL5X6ZNJE3R9KP.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Square_D_3S40F_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_03TAH8UXLPK2YOQZ.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_DVHEKX1S046YAG57.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_5TVDF4O2ZU1GIAEM.zip(Tech Drawing URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_HVOT0S65WQ1ANF9L.zip(Tech Drawing URL)
- Applications
- Features
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| Painted finish |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin-filled transformers |
