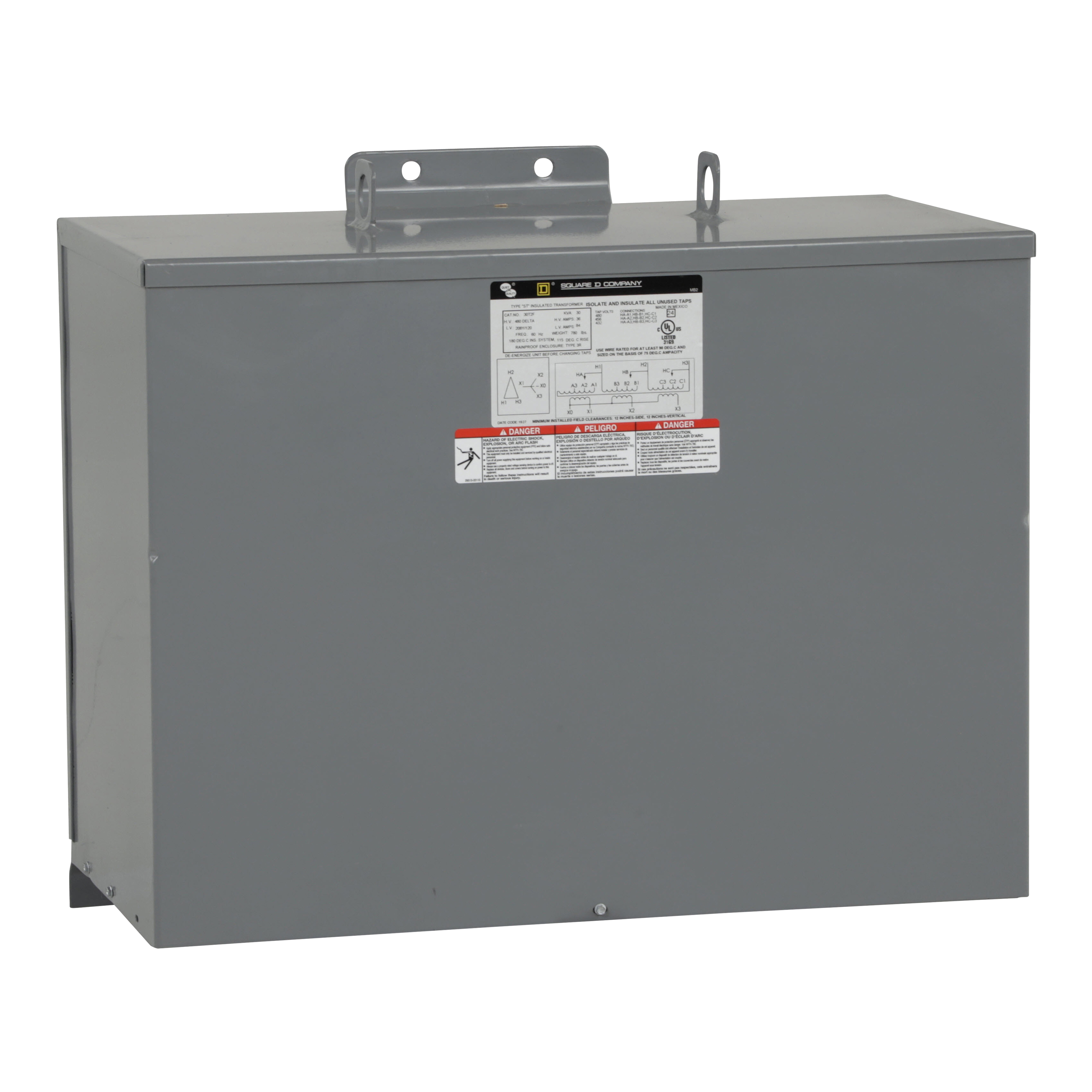

Square D™ 30T2F TRANSFORMER DRY 3PH 30KVA
SKU95917
MFGR #30T2F
Your Cost: $12,234.26/ea
Square D 30T2F TRANSFORMER DRY 3PH 30KVA 480V-208Y/120V,(2) 5 FCBN,115 Degrees C,180 deg.C,208Y/120VAC,3 phases,30 kVA,480VAC (Delta),Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Square D 30T2F TRANSFORMER DRY 3PH 30KVA 480V-208Y/120V,(2) 5 FCBN,115 Degrees C,180 deg.C,208Y/120VAC,3 phases,30 kVA,480VAC (Delta),Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Alternate Catalog Number 30T2F Application GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS ARRA Compliant N Buy American Compliant N Catalog Number 30T2F Country of Origin US Currency USD Dimensions 25 in W x 13.5 in D x 22 in H Enclosure 16C,NEMA 3R,PAINTED SHEET STEEL Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Volume Per Pack 8907.66 Gross Volume per Pack Metric 145969.82 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 779.9900 lb Gross Weight per Pack Metric 353.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 55.8800 in Height [Metric] 55.8800 cm Housing Material Sheet Steel Item Group 16277 KVA Rating 30 kVA Length 34.2900 in Length [Metric] 34.2900 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455683&lang=en-us Mounting Wall Mounted Mounting Type Wall Number Of Taps 2 Returnable Y Standard CULUS-CSA-UL LISTED Temperature Rating 115 °C Type Dry Sealed UNSPSC 39121032 UPC 11 78590103940 UPC 12 785901039402 Warranty Description Contractual Warranty:18 months Width 63.5000 in Width [Metric] 63.5000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 3 pH Power Rating 30 kVA Primary Voltage 480 V Delta Secondary Voltage 208Y/120 VAC GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS DRY SEALED TRANSFORMER Painted finish Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories Resin-filled transformers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 30T2F |
| Application | GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 30T2F |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 25 in W x 13.5 in D x 22 in H |
| Enclosure | 16C,NEMA 3R,PAINTED SHEET STEEL |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 8907.66 |
| Gross Volume per Pack Metric | 145969.82 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 779.9900 lb |
| Gross Weight per Pack Metric | 353.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 55.8800 in |
| Height [Metric] | 55.8800 cm |
| Housing Material | Sheet Steel |
| Item Group | 16277 |
| KVA Rating | 30 kVA |
| Length | 34.2900 in |
| Length [Metric] | 34.2900 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455683&lang=en-us |
| Mounting | Wall Mounted |
| Mounting Type | Wall |
| Number Of Taps | 2 |
| Returnable | Y |
| Standard | CULUS-CSA-UL LISTED |
| Temperature Rating | 115 °C |
| Type | Dry Sealed |
| UNSPSC | 39121032 |
| UPC 11 | 78590103940 |
| UPC 12 | 785901039402 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 63.5000 in |
| Width [Metric] | 63.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 pH |
| Power Rating | 30 kVA |
| Primary Voltage | 480 V Delta |
| Secondary Voltage | 208Y/120 VAC |
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Painted finish |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin-filled transformers |
