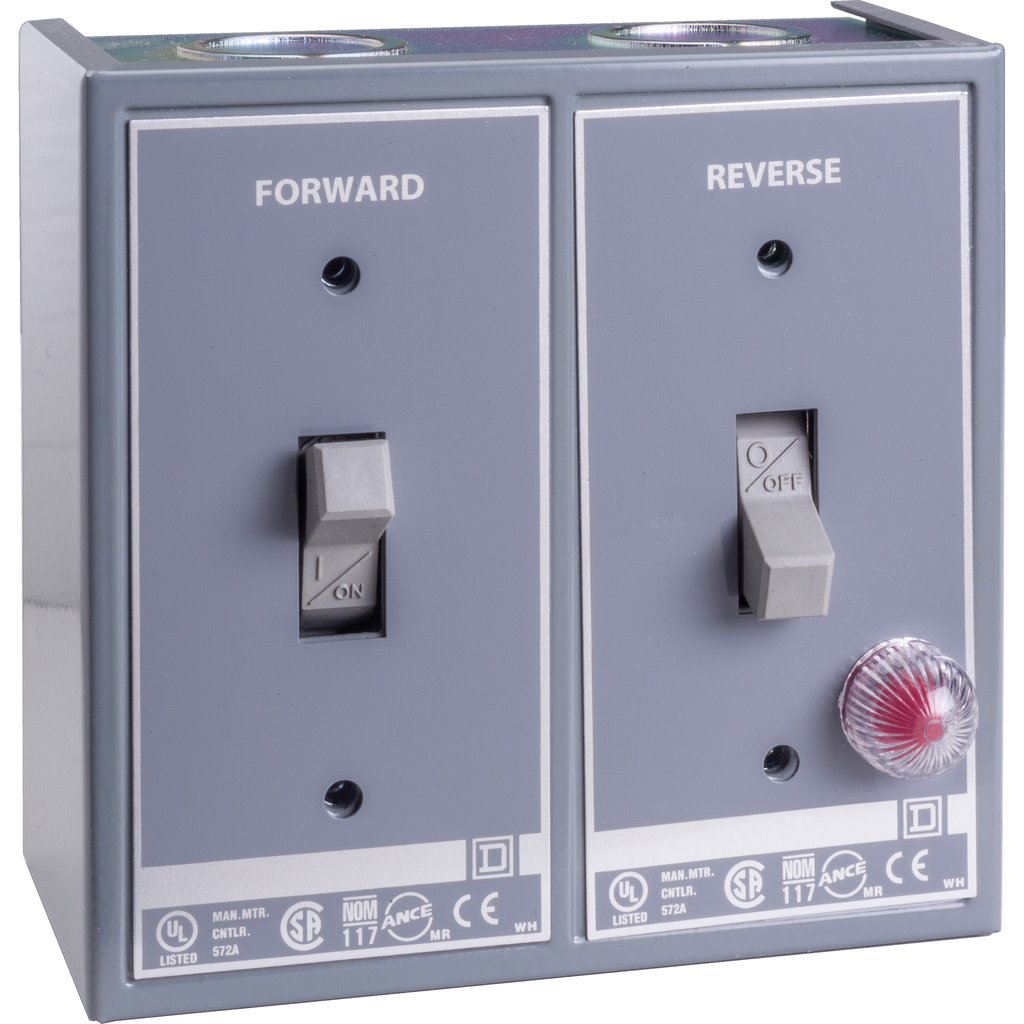

Square D™ 2511KG22B MANUAL SWITCH 600VAC
AC Motor Starting Switches
PDW~6429348
MFG #: 2511KG22B
Square D™
0.00000
/ ea
Schneider Electric,MANUAL SWITCH 600VAC K+OPTIONS,2 hp 115 V DC-2 hp 115 V AC-10 hp 575 V AC-10 hp 460 V AC-1 hp 90 V DC-1.5 hp 230 V DC-7.5 hp 230 V AC,230 V DC-600 V AC,3 phases,30 A,Duplex Unit Manual Switch,K,NEMA 1 painted sheet steel standard size
- Brochure URL - 313dbe0a6b9bfbc1b72f66d85323e5099eeafc36.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_2510FK1_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 9c7c0ef9de26376b783d19c2c6559efaf81722b8.pdf(Computer~Aided [CAD|BIM] Model URL)
- ROHS Compliance URL - Schneider_Electric_2511KG22B_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 80eeec105752512b9811534567ffcd499e5c3624.pdf(Spec Sheet URL)
- Tech Drawing URL - 79350227e32b955e707bd8085dd9b38db4726419(Tech Drawing URL)
- Features
| RED INDICATOR, 208...220 V |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give ON-OFF control in each speed |
| 2 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 460/575 VAC, 1 hp at 90 VDC, 2 hp at 115 VDC, 1-1/2 hp at 230 VDC |
| 30 A at 600 VAC, 30 A at 24 VDC |
