Square D™

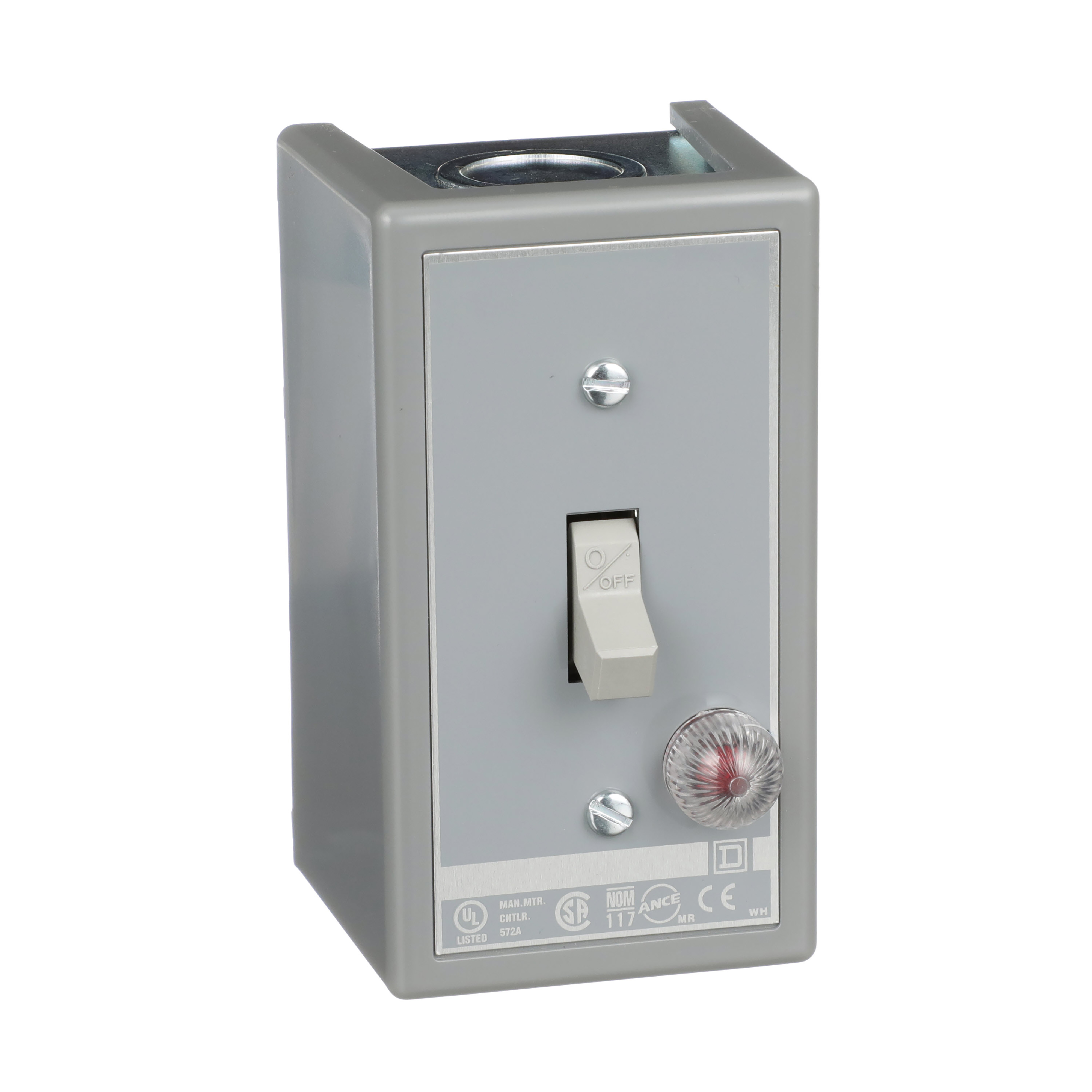

Square D™ 2510KG1B MANUAL SWITCH 600VAC K
Custom_Product_Images_Illustration
Square D™
Square D™ 2510KG1B MANUAL SWITCH 600VAC K
SKU137941
MFGR #2510KG1B
Your Cost: $135.93/ea
List: Square D 2510KG1B MANUAL SWITCH 600VAC K+OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1-Phase,2HP115/230VAC - 3HP460/575VAC,2P,30A,600VAC/230VDC,K,NEMA 1,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three p
Square D 2510KG1B MANUAL SWITCH 600VAC K+OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1-Phase,2HP115/230VAC - 3HP460/575VAC,2P,30A,600VAC/230VDC,K,NEMA 1,Non-Reversing Manual Switch,Provides manual ON/OFF control of single or three p
Action Non-Reversing Actuator Toggle Alternate Catalog Number 2510KG1B Amperage Rating 30 A Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510KG1B Connection Screw Clamp Country of Origin MX Currency USD Current Rating 30 A Depth 2.75 in Dimensions 2.44 in W x 2.75 in D x 4.25 in H Enclosure NEMA 1 Environmental Conditions General Purpose EU RoHS Indicator Y Gross Volume Per Pack 40.77 Gross Volume per Pack Metric 668.06 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8600 lb Gross Weight per Pack Metric 390.10 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536504000 Height 6.1000 in Height [Metric] 6.1000 cm Indicator Red Item Group 21102 Length 12.2000 in Length [Metric] 12.2000 cm Manufacturer Schneider Electric Number Of Phases 1 Number Of Poles 2 Power Rating 2 hp at 115/230 VAC/3 hp at 460/575 VAC Returnable Y Series 2510 Size 2.44 IN,2.75 IN,4.25 IN in Standard UL LISTED - CSA CERTIFIED - CE MARKED Stock Status NONSTOCK Sub Brand K Substitute Product Catalog Number 9999PL12G Type Type K UNSPSC 39121521 UPC 11 78590155449 UPC 12 785901554493 Voltage Rating 600 VAC/230 VDC VAC//VDC Warranty Description Contractual Warranty:18 months Width 7.9000 in Width [Metric] 7.9000 cm PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY RED INDICATOR, 230 V Suitable for use with 3-ph AC motors rated up to 20 hp Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads Two switches are used, one to connect the motor for forward rotation and one for reverse Two switches are employed to give "on-off" control in each speed Economical on/off solution Simple design Easy to install 1/2 and 3/4 in knockouts top and bottom screw clamp
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Non-Reversing |
| Actuator | Toggle |
| Alternate Catalog Number | 2510KG1B |
| Amperage Rating | 30 A |
| Application | PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510KG1B |
| Connection | Screw Clamp |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 30 A |
| Depth | 2.75 in |
| Dimensions | 2.44 in W x 2.75 in D x 4.25 in H |
| Enclosure | NEMA 1 |
| Environmental Conditions | General Purpose |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 40.77 |
| Gross Volume per Pack Metric | 668.06 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8600 lb |
| Gross Weight per Pack Metric | 390.10 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 6.1000 in |
| Height [Metric] | 6.1000 cm |
| Indicator | Red |
| Item Group | 21102 |
| Length | 12.2000 in |
| Length [Metric] | 12.2000 cm |
| Manufacturer | Schneider Electric |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Power Rating | 2 hp at 115/230 VAC/3 hp at 460/575 VAC |
| Returnable | Y |
| Series | 2510 |
| Size | 2.44 IN,2.75 IN,4.25 IN in |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Stock Status | NONSTOCK |
| Sub Brand | K |
| Substitute Product Catalog Number | 9999PL12G |
| Type | Type K |
| UNSPSC | 39121521 |
| UPC 11 | 78590155449 |
| UPC 12 | 785901554493 |
| Voltage Rating | 600 VAC/230 VDC VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.9000 in |
| Width [Metric] | 7.9000 cm |
| PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY |
| RED INDICATOR, 230 V |
| Suitable for use with 3-ph AC motors rated up to 20 hp |
| Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately |
| Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately |
| Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads |
| Two switches are used, one to connect the motor for forward rotation and one for reverse |
| Two switches are employed to give "on-off" control in each speed |
| Economical on/off solution |
| Simple design |
| Easy to install |
| 1/2 and 3/4 in knockouts top and bottom screw clamp |
