Square D™

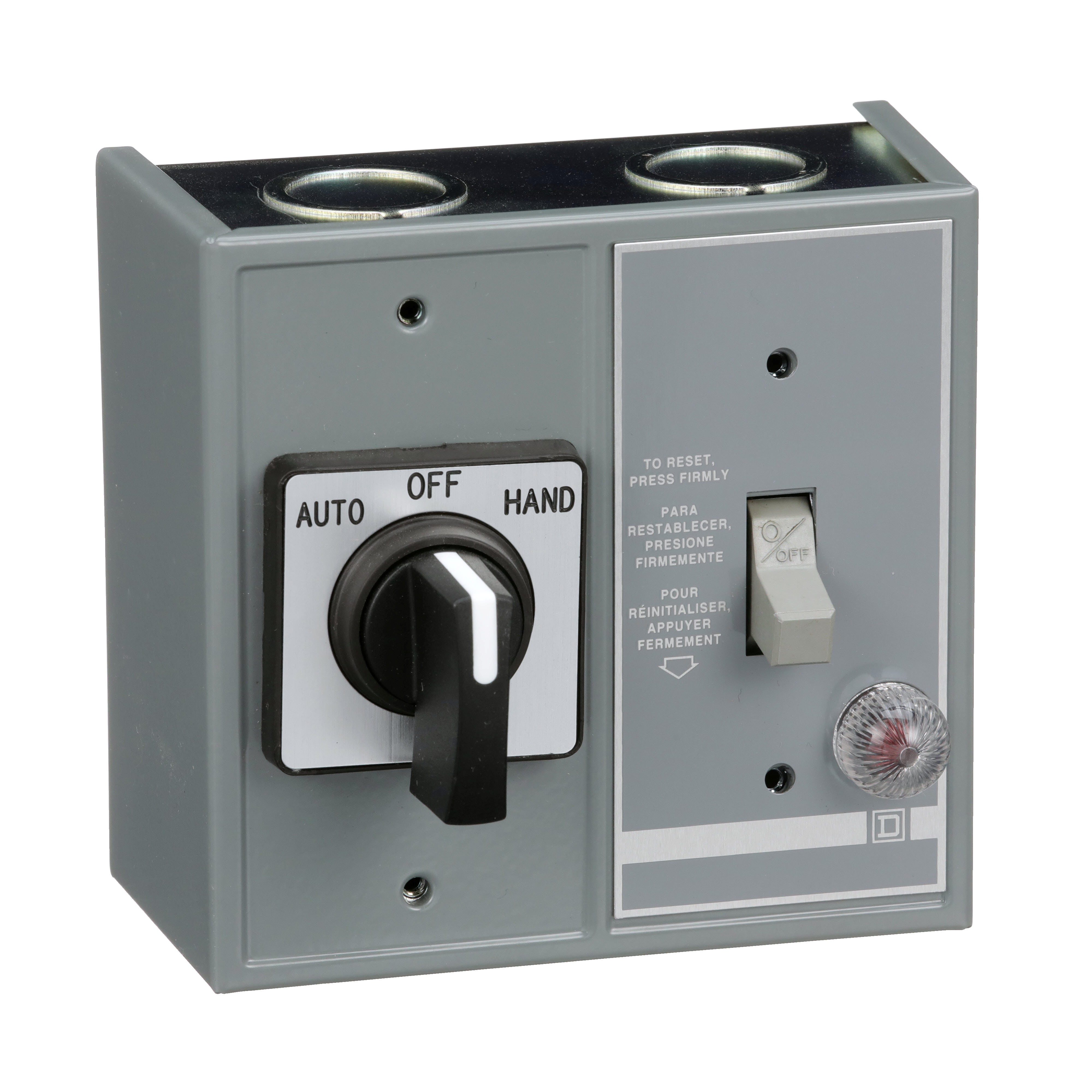

Square D™ 2510FG72P MANUAL STARTER 277VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2510FG72P MANUAL STARTER 277VAC
SKU337120
MFGR #2510FG72P
Your Cost: $348.06/ea
Square D 2510FG72P MANUAL STARTER 277VAC F +OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,Duplex Unit Metal Box - General Purpose,F,NEMA 1,Non-Reversing Manual Starte
Square D 2510FG72P MANUAL STARTER 277VAC F +OPTIONS,0.5 and 0.75 Inch Knockouts (top and bottom) Screw Clamp,1-Phase,16A,1HP115/230/277VAC - 0.75HP115/230VDC,2P,600 Vac/250 Vdc,Duplex Unit Metal Box - General Purpose,F,NEMA 1,Non-Reversing Manual Starte
Alternate Catalog Number 2510FG72P Amperage Rating 16 A Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. ARRA Compliant N Buy American Compliant N Catalog Number 2510FG72P Connection 0.5 AND 0.75 INCH KNOCKOUTS (TOP AND BOTTOM) SCREW CLAMP Connection Type Screw Clamp Control Type Toggle Switch Country of Origin MX Current Rating 16 A Depth 2.88 in Dimensions 2.44 in W x 2.88 in D x 4.25 in H EU RoHS Indicator Y Gross Volume Per Pack 180.95 Gross Volume per Pack Metric 2965.23 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.6900 lb Gross Weight per Pack Metric 766.57 Gross Weight UOM Metric g Height 5.45 in Height [Metric] 13.9700 cm Item Group 21101 Length 6.93 in Length [Metric] 17.7800 cm Material Sheet Steel Motor Power 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC Number Of Phases 1 Number Of Poles 2 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type Thermal Melting Alloy Returnable N Series 2510 Size 2.44 IN,2.88 IN,4.25 IN in Standard UL LISTED - CSA CERTIFIED - CE MARKED Sub Brand F Substitute Product Catalog Number 2510FL1 UNSPSC 39121521 UPC 11 78590155411 UPC 12 785901554110 Upsell Product Catalog Number A1.25 Voltage Rating 600 VAC/250 VDC Warranty Description Contractual Warranty:18 months Width 4.66 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Enclosure Type NEMA 1 Type Type F PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. RED INDICATOR Small size, economical Simple design Easy to install Long lasting reliability Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower Two-pole starters may also be used with DC NEMA type 1 general purpose enclosure NEMA 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 2510FG72P |
| Amperage Rating | 16 A |
| Application | PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2510FG72P |
| Connection | 0.5 AND 0.75 INCH KNOCKOUTS (TOP AND BOTTOM) SCREW CLAMP |
| Connection Type | Screw Clamp |
| Control Type | Toggle Switch |
| Country of Origin | MX |
| Current Rating | 16 A |
| Depth | 2.88 in |
| Dimensions | 2.44 in W x 2.88 in D x 4.25 in H |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 180.95 |
| Gross Volume per Pack Metric | 2965.23 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.6900 lb |
| Gross Weight per Pack Metric | 766.57 |
| Gross Weight UOM Metric | g |
| Height | 5.45 in |
| Height [Metric] | 13.9700 cm |
| Item Group | 21101 |
| Length | 6.93 in |
| Length [Metric] | 17.7800 cm |
| Material | Sheet Steel |
| Motor Power | 0.75 hp at 115/230 VDC/1 hp at 115/277 VAC/2 hp at 230 VAC |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | Thermal Melting Alloy |
| Returnable | N |
| Series | 2510 |
| Size | 2.44 IN,2.88 IN,4.25 IN in |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED |
| Sub Brand | F |
| Substitute Product Catalog Number | 2510FL1 |
| UNSPSC | 39121521 |
| UPC 11 | 78590155411 |
| UPC 12 | 785901554110 |
| Upsell Product Catalog Number | A1.25 |
| Voltage Rating | 600 VAC/250 VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.66 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Enclosure Type | NEMA 1 |
| Type | Type F |
| PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| RED INDICATOR |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| Two-pole starters may also be used with DC |
| NEMA type 1 general purpose enclosure |
| NEMA 1 |
