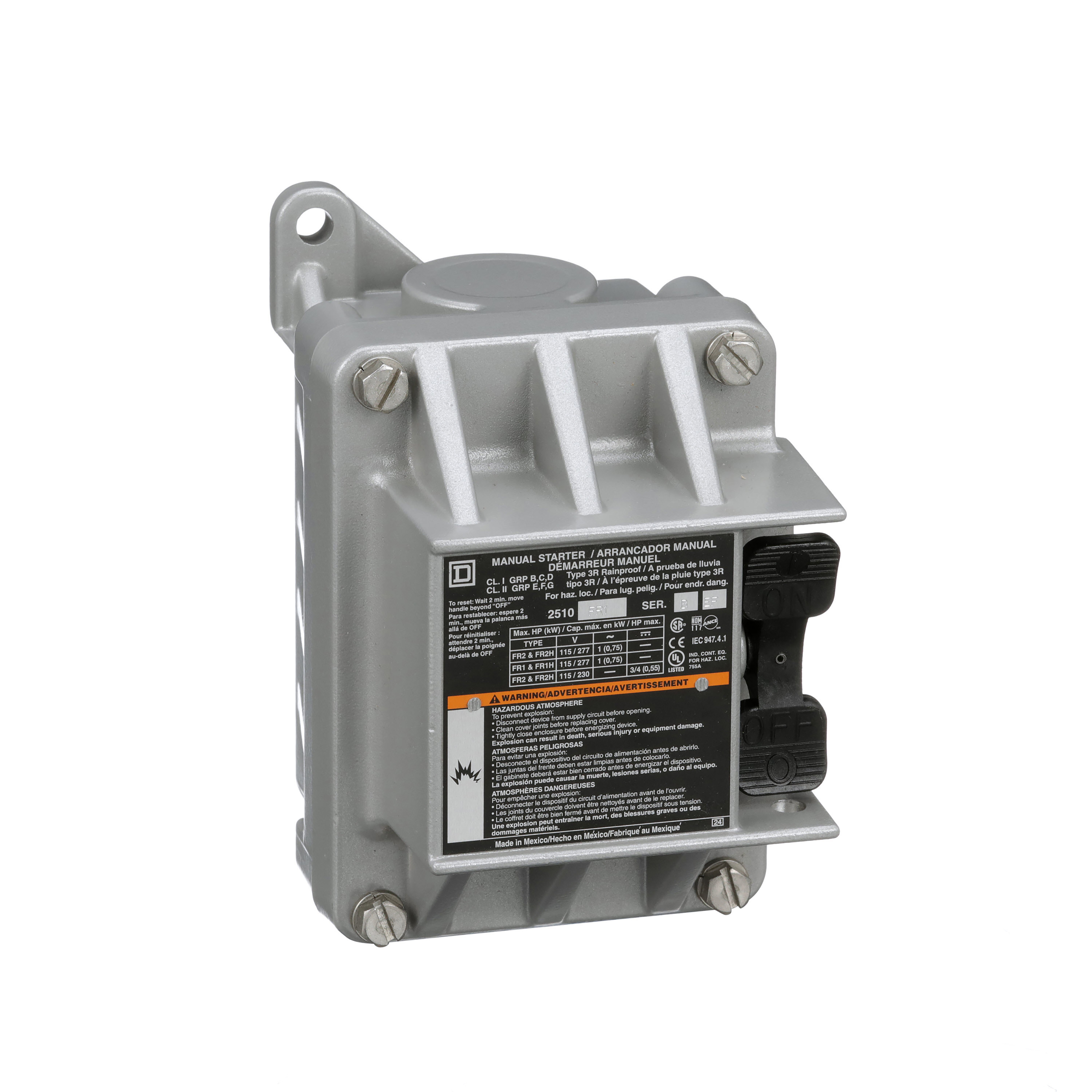

Square D™ 2510F Type F Non-Reversing Manual Starter, 1 Pole, NEMA 3R/7/9 Enclosure
Custom_Product_Images_Illustration
Square D™ 2510F Type F Non-Reversing Manual Starter, 1 Pole, NEMA 3R/7/9 Enclosure
SKU33809
MFGR #2510FR1
Your Cost: $344.69/ea
List: Square D 2510FR1 MANUAL STARTER 277VAC,0.75 NPT (bottom) Screw Clamp,1 hp 277 V AC-1 hp 230 V AC-1 hp 115 V AC,1 phase,16 A,277 V AC,F,NEMA 3R/7/9 cast aluminium standard size,Provides overload protection as well as manual ON/OFF control for small motors
Square D 2510FR1 MANUAL STARTER 277VAC,0.75 NPT (bottom) Screw Clamp,1 hp 277 V AC-1 hp 230 V AC-1 hp 115 V AC,1 phase,16 A,277 V AC,F,NEMA 3R/7/9 cast aluminium standard size,Provides overload protection as well as manual ON/OFF control for small motors
Action Toggle Alternate Catalog Number 2510FR1 Amperage Rating 16 A Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510FR1 Connection Screw clamp terminals Connection Type Screw Clamp Country of Origin US Currency USD Current Rating 16 A Depth 4.35 in Dimensions 6.36 in H x 3.95 in W x 4.35 in D Enclosure Type NEMA 3R/7/9 EU RoHS Indicator Y Gross Volume Per Pack 184.24 Gross Volume per Pack Metric 3019.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.4200 lb Gross Weight per Pack Metric 1.55 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 12.4000 in Height [Metric] 12.4000 cm Item Group 21101 Length 18.0000 in Length [Metric] 18.0000 cm Manufacturer Schneider Electric Material Aluminum Motor Power 1 hp Number Of Phases 1 Number Of Poles 1 Overload Relay Thermal Melting Alloy Phase 1 pH Reset Type THERMAL - MELTING ALLOY Returnable Y Series 2510F Size 3.95 IN,4.35 IN,6.36 IN in Standard UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 Stock Status NONSTOCK Sub Brand F Substitute Product Catalog Number A.59 Type Type F Non-Reversing Standard Single Unit UNSPSC 39121521 UPC 11 78590155419 UPC 12 785901554196 Voltage Rating 277 VAC Warranty Description Contractual Warranty:18 months Width 14.2000 in Width [Metric] 14.2000 cm PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. NO INDICATOR 0.75 in NPT (bottom) screw clamp connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Toggle |
| Alternate Catalog Number | 2510FR1 |
| Amperage Rating | 16 A |
| Application | PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510FR1 |
| Connection | Screw clamp terminals |
| Connection Type | Screw Clamp |
| Country of Origin | US |
| Currency | USD |
| Current Rating | 16 A |
| Depth | 4.35 in |
| Dimensions | 6.36 in H x 3.95 in W x 4.35 in D |
| Enclosure Type | NEMA 3R/7/9 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 184.24 |
| Gross Volume per Pack Metric | 3019.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.4200 lb |
| Gross Weight per Pack Metric | 1.55 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 12.4000 in |
| Height [Metric] | 12.4000 cm |
| Item Group | 21101 |
| Length | 18.0000 in |
| Length [Metric] | 18.0000 cm |
| Manufacturer | Schneider Electric |
| Material | Aluminum |
| Motor Power | 1 hp |
| Number Of Phases | 1 |
| Number Of Poles | 1 |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 pH |
| Reset Type | THERMAL - MELTING ALLOY |
| Returnable | Y |
| Series | 2510F |
| Size | 3.95 IN,4.35 IN,6.36 IN in |
| Standard | UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05 |
| Stock Status | NONSTOCK |
| Sub Brand | F |
| Substitute Product Catalog Number | A.59 |
| Type | Type F Non-Reversing Standard Single Unit |
| UNSPSC | 39121521 |
| UPC 11 | 78590155419 |
| UPC 12 | 785901554196 |
| Voltage Rating | 277 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.2000 in |
| Width [Metric] | 14.2000 cm |
| PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS. |
| NO INDICATOR |
| 0.75 in NPT (bottom) screw clamp connection |
