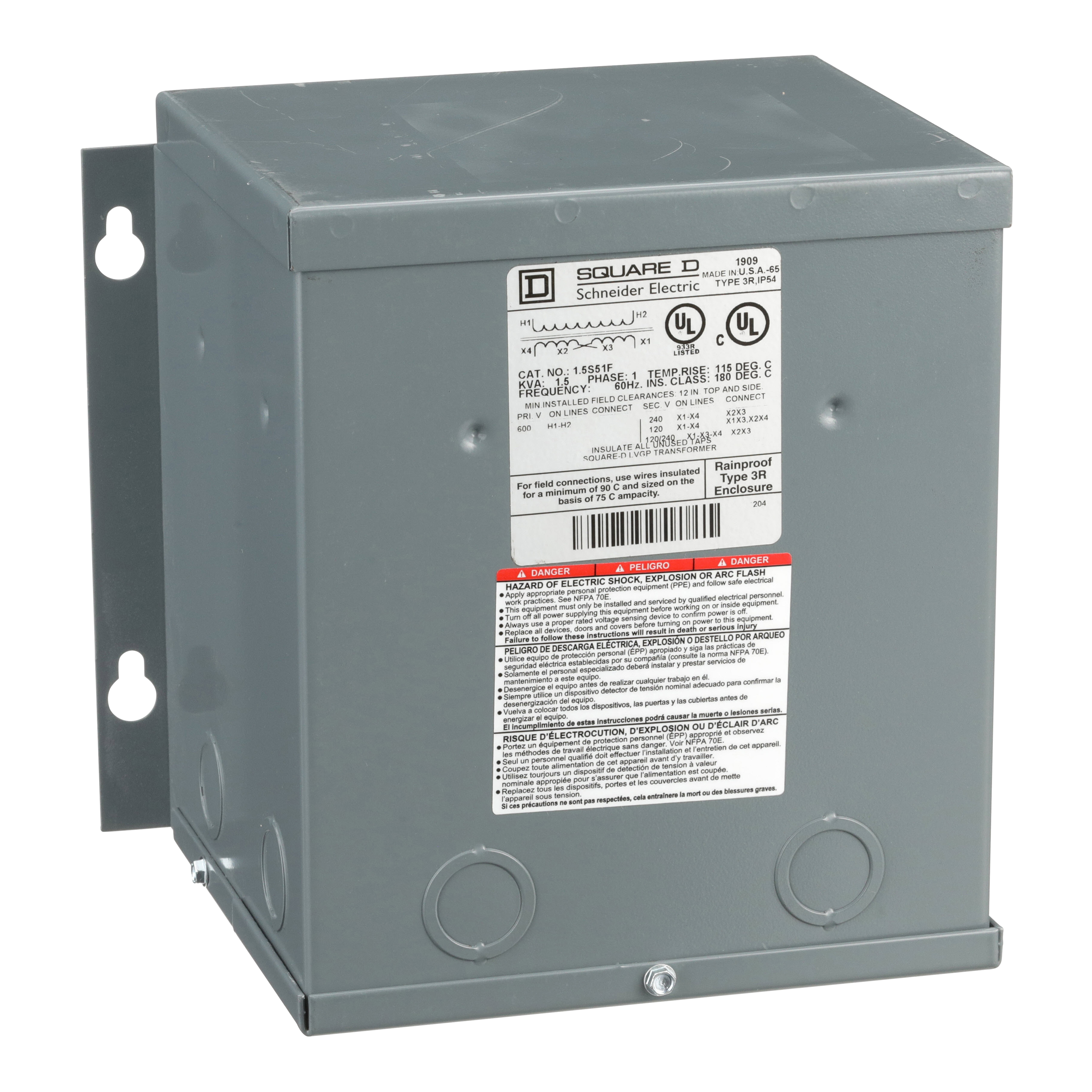

Square D™ 1.5S51F Dry Sealed Low Voltage Transformer, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA Power Rating, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
Square D™
Square D™ 1.5S51F Dry Sealed Low Voltage Transformer, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA Power Rating, 60 Hz, 1 Phase
SKU316872
MFGR #1.5S51F
Your Cost: $1,222.94/ea
Square D™ Transformer, Dry Sealed Low Voltage, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Sheet Steel Housing Material, 6.56 in L x 8.68 in W x 9.56 in H Dimensions
Square D™ Transformer, Dry Sealed Low Voltage, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Sheet Steel Housing Material, 6.56 in L x 8.68 in W x 9.56 in H Dimensions
Alternate Catalog Number 1.5S51F Application For intended power, heating, lighting applications, OEM commercial and industrial markets ARRA Compliant N Buy American Compliant N Catalog Number 1.5S51F Country of Origin US Currency USD Enclosure Painted sheet steel;8 EU RoHS Indicator Y Gross Volume Per Pack 1361.25 Gross Volume per Pack Metric 22306.80 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 30.0900 lb Gross Weight per Pack Metric 13.65 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 25.1460 in Height [Metric] 25.1460 cm Item Group 16277 KVA Rating 1.5 Length 31.7500 in Length [Metric] 31.7500 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455113&lang=en-us Mounting Wall Mounted Number Of Taps 0 Returnable Y Standard UL LISTED-CSA-CULUS Substitute Product Catalog Number 1.5S1F Temperature Rating 115 DEGREES C Type DRY SEALED TRANSFORMER UNSPSC 39121001 UPC 11 78590102036 UPC 12 785901020363 Warranty Description Contractual Warranty:18 months Width 27.9400 in Width [Metric] 27.9400 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Primary Voltage 600 V 120/240 V Secondary Voltage 120/240 V For intended power, heating, lighting applications, OEM commercial and industrial markets DRY SEALED TRANSFORMER Painted finish Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly Can be field connected for 3-phase applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories Resin filled transformers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 1.5S51F |
| Application | For intended power, heating, lighting applications, OEM commercial and industrial markets |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 1.5S51F |
| Country of Origin | US |
| Currency | USD |
| Enclosure | Painted sheet steel;8 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1361.25 |
| Gross Volume per Pack Metric | 22306.80 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 30.0900 lb |
| Gross Weight per Pack Metric | 13.65 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 25.1460 in |
| Height [Metric] | 25.1460 cm |
| Item Group | 16277 |
| KVA Rating | 1.5 |
| Length | 31.7500 in |
| Length [Metric] | 31.7500 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455113&lang=en-us |
| Mounting | Wall Mounted |
| Number Of Taps | 0 |
| Returnable | Y |
| Standard | UL LISTED-CSA-CULUS |
| Substitute Product Catalog Number | 1.5S1F |
| Temperature Rating | 115 DEGREES C |
| Type | DRY SEALED TRANSFORMER |
| UNSPSC | 39121001 |
| UPC 11 | 78590102036 |
| UPC 12 | 785901020363 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 27.9400 in |
| Width [Metric] | 27.9400 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Primary Voltage | 600 V 120/240 V |
| Secondary Voltage | 120/240 V |
| For intended power, heating, lighting applications, OEM commercial and industrial markets |
| DRY SEALED TRANSFORMER |
| Painted finish |
| Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry |
| Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly |
| Can be field connected for 3-phase applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant |
| Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer |
| General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories |
| Resin filled transformers |
