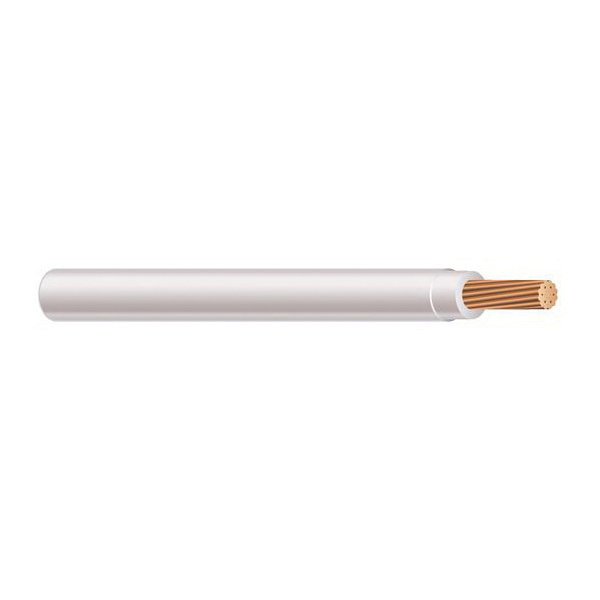

Southwire® 517910505 Type TFN Fixture Wire, 600 VAC, (1) 18 AWG Bare Solid Copper Conductor, 500 ft Reel L
TFFN / TFN
19890
MFG #: 51791-05-05
Coleman Cable
94.71000
/ ft
Southwire® Fixture Wire, Type TFN, 600 VAC, 1 Conductor, Bare Solid Copper Conductor, 18 AWG Conductor, 78 mil Outside Dia, 500 ft Reel Length, 1 Strands, Thermoplastic Insulation, Nylon, Green, 90/105 deg C. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
- Features
| Southwire type TFN conductors may be used as fixture wire and as permitted for fire protective signal circuits as specified in the National Electrical Code® at conductor temperatures not to exceed 90 deg C or 105 deg C when used as AWM |
| Voltage rating for all applications is 600 volts |
| 15 mil insulation thickness |
| 4 mil jacket thickness |
| Thermoplastic insulation/nylon sheath heat, moisture, oil, and gasoline resistant |
| Reel packaging |
| Heat, moisture, oil and gasoline resistant |
| -Number of Conductors 1 |
| -Jacket Color Green |
| -Insulation Material PVC/Nylon |
| -Stranding Solid |
| -Outer Diameter 0.082 Inch |
| -Temperature Rating -20 to 90 Deg C |
| -Length 500 Ft |
| -Package Type Reel |
| -Approval UL 66, UL, CSA C22.2 |
| -ROHS Compliant |
| -Insulation Thickness 0.016 Inch |
| -Nylon Insulation Thickness 0.005 Inch |
| -Application Fixture Wire, Light Fixture, Equipment and Lead Wire |
