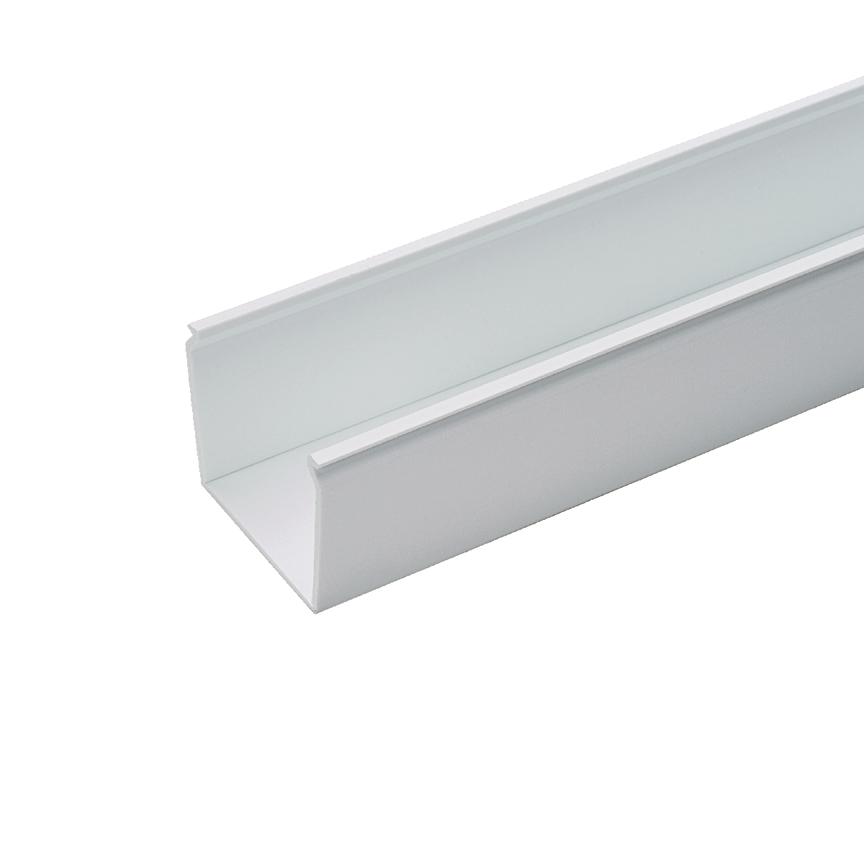

Solid Raceway,PVC,1X1X6',WHT,NM
Solid Wall Wiring Ducts
356701
MFG #: FS1X1WH6NM
Panduit®
4.86000
/ ft
The temporary protection film shall protect duct covers from damage during the installation process. The film shall be see-through, clear and peel away easily from the cover without leaving a sticky residue. The film shall provide a place for writing notes without allowing the ink to bleed through.
- Full Eng Drawing URL - 36897-896-R2(FS2X1-5)-200.dxf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10965_A4H2TZDUXQY3G6RJ.pdf(Spec Sheet URL)
- Spec Sheet URL - 10965_H82FN9PMQ0CKOUWL.pdf(Spec Sheet URL)
- Spec Sheet URL - D-WDSP28--WW-ENG-TypeCWiringDuctCover-W.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_2AP0SGERJXWY6DC3.pdf(Tech Drawing URL)
- Tech Drawing URL - C-WDFS1X1LG6NM--ENG.PDF(Tech Drawing URL)
- Applications
- Features
| Solid Wall Wiring Duct for Control Panel and Machine Builder Applications |
| Solid Wall |
| Solid wall design fully encloses cables providing maximum protection and aesthetics |
| Non-slip cover will not slide easily when installed on duct base |
| Flush cover design holds more wires than traditional duct designs |
| Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners |
| Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead |
| Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners |
| Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead |
| Base and covers sold separately |
| Lead-Free PVC |
| External dimension: 1.26 in W x 1.12 in D |
