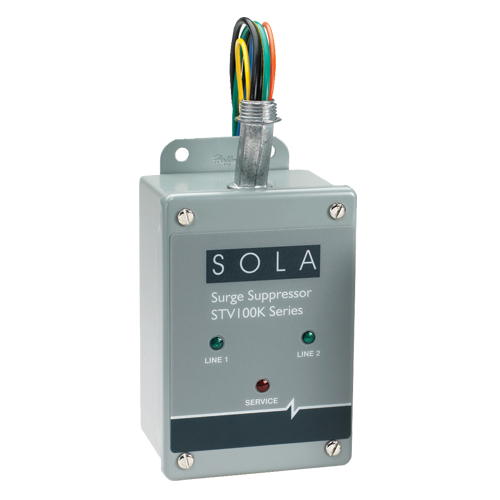

SolaHD STV100K-24L Surge Protective Device, 240 VAC, 47 to 63 Hz, 1 Phase
Custom_Product_Images_Illustration
SolaHD STV100K-24L Surge Protective Device, 240 VAC, 47 to 63 Hz, 1 Phase
SKU532649
MFGR #STV100K-24L
Your Cost: $554.00/ea
List: SolaHD?s STV 100K hardwired surge protective devices are designed for installation at the service entrance, branch panel or a dedicated sensitive electronic load. These units feature all mode protection, LED and audible alarm status indication, sinewave tracking and form "C" dry contacts. The STV 100K series also contains the highest levels of safety built into the product including thermal fusing and a fault current fusing level of 65 kAIC.
SolaHD?s STV 100K hardwired surge protective devices are designed for installation at the service entrance, branch panel or a dedicated sensitive electronic load. These units feature all mode protection, LED and audible alarm status indication, sinewave tracking and form "C" dry contacts. The STV 100K series also contains the highest levels of safety built into the product including thermal fusing and a fault current fusing level of 65 kAIC.
Application Used to provide ingress protection on SolaHD International Series Industrial Control Transformers ARRA Compliant N Buy American Compliant N Catalog Number STV100K-24L Connection Parallel Country of Origin MX Currency USD Environmental Conditions 0 to 95% non condensing pct EU RoHS Indicator Y Gross Weight Per Pack 5.7000 lb Gross Weight per Pack Metric 2.59 Gross Weight UOM Metric kg Height 8.10 in Height [Metric] 20.5740 cm Length 12.90 in Length [Metric] 32.7660 cm Material Plastic Mounting Flange Operating Temperature -40 to 60 Response Time <0.5 ns Size 6.0 W x 4.0 D x 3.2 H V Standard Not Listed Standards UL 1449, cULus E324279, CSA C22.2 No. 8, CSA TI I-IIB, TI A-24, RoHS Compliant Type Touchproof Cover Kit Type Of Indicators Red & Green LED, Audible Alarm UNSPSC 39121610 UPC 11 78347201981 UPC 12 783472019663 Voltage Rating 240 V Width 7.90 in Width [Metric] 20.0660 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 47 - 63 Hz Phase 1 Used to provide ingress protection on SolaHD International Series Industrial Control Transformers Terminal Covers, 2 Covers Per Kit Low clamping levels for more effective protection 65 kAIC fault current fusing level provides safety and NEC conformance Compact, rugged metal Single phase, 2-wire with ground Red/green LED indicator Parallel connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Used to provide ingress protection on SolaHD International Series Industrial Control Transformers |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | STV100K-24L |
| Connection | Parallel |
| Country of Origin | MX |
| Currency | USD |
| Environmental Conditions | 0 to 95% non condensing pct |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 5.7000 lb |
| Gross Weight per Pack Metric | 2.59 |
| Gross Weight UOM Metric | kg |
| Height | 8.10 in |
| Height [Metric] | 20.5740 cm |
| Length | 12.90 in |
| Length [Metric] | 32.7660 cm |
| Material | Plastic |
| Mounting | Flange |
| Operating Temperature | -40 to 60 |
| Response Time | <0.5 ns |
| Size | 6.0 W x 4.0 D x 3.2 H V |
| Standard | Not Listed |
| Standards | UL 1449, cULus E324279, CSA C22.2 No. 8, CSA TI I-IIB, TI A-24, RoHS Compliant |
| Type | Touchproof Cover Kit |
| Type Of Indicators | Red & Green LED, Audible Alarm |
| UNSPSC | 39121610 |
| UPC 11 | 78347201981 |
| UPC 12 | 783472019663 |
| Voltage Rating | 240 V |
| Width | 7.90 in |
| Width [Metric] | 20.0660 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 47 - 63 Hz |
| Phase | 1 |
| Used to provide ingress protection on SolaHD International Series Industrial Control Transformers |
| Terminal Covers, 2 Covers Per Kit |
| Low clamping levels for more effective protection |
| 65 kAIC fault current fusing level provides safety and NEC conformance |
| Compact, rugged metal |
| Single phase, 2-wire with ground |
| Red/green LED indicator |
| Parallel connection |
