SolaHD™

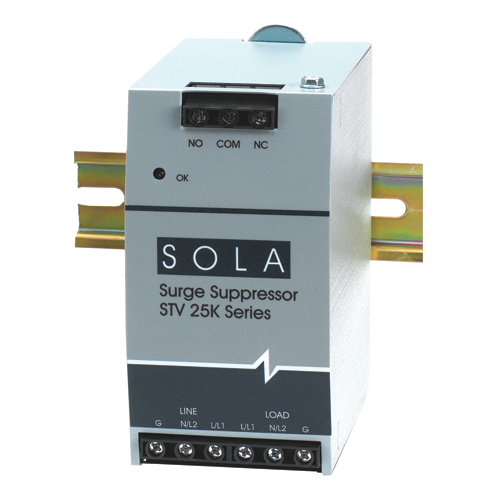

SolaHD STV 25K Surge Protective Device, 240 VAC, 47 to 63 Hz, 1 Phase
Custom_Product_Images_Illustration
SolaHD™
SolaHD STV 25K Surge Protective Device, 240 VAC, 47 to 63 Hz, 1 Phase
SKU47501
MFGR #STV25K-24S
Your Cost: $319.21/ea
List: This series provides point-of-use protection, at the dedicated equipment level, against damaging transients. Ideal for installation in electronic control cabinets found in harsh industrial environments such as the factory floor or at remote locations. These devices provide 25,000 A of surge protection, sinewave tracking, LED status indication and form "C" dry contacts. This DIN-rail series also provides protection on all electrical paths and comes with a standard ten year product warranty.
This series provides point-of-use protection, at the dedicated equipment level, against damaging transients. Ideal for installation in electronic control cabinets found in harsh industrial environments such as the factory floor or at remote locations. These devices provide 25,000 A of surge protection, sinewave tracking, LED status indication and form "C" dry contacts. This DIN-rail series also provides protection on all electrical paths and comes with a standard ten year product warranty.
Amperage Rating 20 A Application Control Cabinets for Industrial Automation, Point-of-Use Industrial/Service Equipment, Remote Commercial or Industrial Equipment, Instrumentation and Large Test Equipment, Commercial and Building Automation Systems ARRA Compliant N Buy American Compliant N Catalog Number STV25K-24S Country of Origin MX Currency USD Dimensions 4.87 in H x 2.56 in W x 4.75 in D Enclosure Type IP20 Environmental Conditions -40 to 60 deg C Temperature/0 to 95% Non-Condensing Humidity EU RoHS Indicator Y Gross Weight Per Pack 0.8500 lb Gross Weight per Pack Metric 0.39 Gross Weight UOM Metric kg Height 2.90 in Height [Metric] 7.3660 cm Indicator Type LED Length 8.20 in Length [Metric] 20.8280 cm Material Metal Modes of Protection L-N/L-L/L-G/N-G Mounting DIN rail Mounting Type DIN Rail Nominal Discharge Current 3 kA Number of Wires 2 Operating Temperature -40 to 60 DEG C °C Peak Surge Current 25 kA Response Time <0.5 ns Series STV 25K Size 4.87 H x 2.56 W x 4.75 D IN in Standard UL Recognized Component: UL 1449, 3rd Edition, type 4 locations, UL 1283, RoHS Compliant Standards UL 1449, 3rd Edition, Type 4 Locations, UL 1283, RoHS Compliant Terminal Type Screw Type STV 25K DIN Rail Series - Surge Protection Devices Type Of Indicators Green LED, Form C Contacts UNSPSC 39121610 UPC 11 78347201988 UPC 12 783472019885 Voltage Rating 120 V Width 6.50 in Width [Metric] 16.5100 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 47-63 Hz Phase 1 pH Short Circuit Current Rating 5 kA Control Cabinets for Industrial Automation, Point-of-Use Industrial/Service Equipment, Remote Commercial or Industrial Equipment, Instrumentation and Large Test Equipment, Commercial and Building Automation Systems Compact and narrow design maximizes panel space. Low clamping levels for more effective protection. Easy access terminal screws for quick mounting and installation. 25,000 amps of surge protection. Sine wave tracking and all mode protection provide consistent and reliable protection on all electrical paths. Thermal fusing prevents MOV caused by excessive current levels. Compact and narrow design maximizes panel space Low clamping levels for more effective protection Easy access terminal screws for quick mounting and installation Sine wave tracking and all mode protection provide consistent and reliable protection on all electrical paths Thermal fusing prevents MOV overheating caused by excessive current levels 0 to 95% non-condensing environmental conditions Parallel connection Red/green LED indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 20 A |
| Application | Control Cabinets for Industrial Automation, Point-of-Use Industrial/Service Equipment, Remote Commercial or Industrial Equipment, Instrumentation and Large Test Equipment, Commercial and Building Automation Systems |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | STV25K-24S |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.87 in H x 2.56 in W x 4.75 in D |
| Enclosure Type | IP20 |
| Environmental Conditions | -40 to 60 deg C Temperature/0 to 95% Non-Condensing Humidity |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.8500 lb |
| Gross Weight per Pack Metric | 0.39 |
| Gross Weight UOM Metric | kg |
| Height | 2.90 in |
| Height [Metric] | 7.3660 cm |
| Indicator Type | LED |
| Length | 8.20 in |
| Length [Metric] | 20.8280 cm |
| Material | Metal |
| Modes of Protection | L-N/L-L/L-G/N-G |
| Mounting | DIN rail |
| Mounting Type | DIN Rail |
| Nominal Discharge Current | 3 kA |
| Number of Wires | 2 |
| Operating Temperature | -40 to 60 DEG C °C |
| Peak Surge Current | 25 kA |
| Response Time | <0.5 ns |
| Series | STV 25K |
| Size | 4.87 H x 2.56 W x 4.75 D IN in |
| Standard | UL Recognized Component: UL 1449, 3rd Edition, type 4 locations, UL 1283, RoHS Compliant |
| Standards | UL 1449, 3rd Edition, Type 4 Locations, UL 1283, RoHS Compliant |
| Terminal Type | Screw |
| Type | STV 25K DIN Rail Series - Surge Protection Devices |
| Type Of Indicators | Green LED, Form C Contacts |
| UNSPSC | 39121610 |
| UPC 11 | 78347201988 |
| UPC 12 | 783472019885 |
| Voltage Rating | 120 V |
| Width | 6.50 in |
| Width [Metric] | 16.5100 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 47-63 Hz |
| Phase | 1 pH |
| Short Circuit Current Rating | 5 kA |
| Control Cabinets for Industrial Automation, Point-of-Use Industrial/Service Equipment, Remote Commercial or Industrial Equipment, Instrumentation and Large Test Equipment, Commercial and Building Automation Systems |
| Compact and narrow design maximizes panel space. Low clamping levels for more effective protection. Easy access terminal screws for quick mounting and installation. 25,000 amps of surge protection. Sine wave tracking and all mode protection provide consistent and reliable protection on all electrical paths. Thermal fusing prevents MOV caused by excessive current levels. |
| Compact and narrow design maximizes panel space |
| Low clamping levels for more effective protection |
| Easy access terminal screws for quick mounting and installation |
| Sine wave tracking and all mode protection provide consistent and reliable protection on all electrical paths |
| Thermal fusing prevents MOV overheating caused by excessive current levels |
| 0 to 95% non-condensing environmental conditions |
| Parallel connection |
| Red/green LED indicator |
