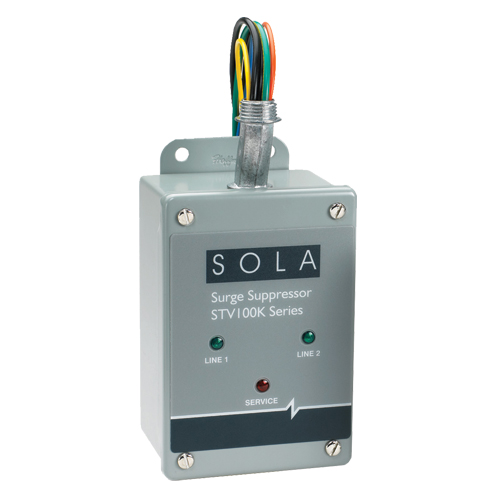

SolaHD STV 100K Surge Protective Device, 120/240 VAC, 47 to 63 Hz, 1 Phase
AC Surge Protective Devices
47502
MFG #: STV100K10S
SolaHD™
782.78000
/ ea
SolaHDs STV 100K hardwired surge protective devices are designed for installation at the service entrance, branch panel or a dedicated sensitive electronic load. These units feature all mode protection, LED and audible alarm status indication, sinewave tracking and form "C" dry contacts. The STV 100K series also contains the highest levels of safety built into the product including thermal fusing and a fault current fusing level of 65 kAIC.
- Owners Manual URL - SolaHD_STV100K_24L_Manual.pdf(Owners Manual URL)
- Seller Home Page URL - solahd.aspx(Seller Home Page URL)
- Spec Sheet 1 URL - SolaHD_STV100K_24L_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11375_CV1PQ0T4WZFGLISH.pdf(Spec Sheet URL)
- Spec Sheet URL - catalog-solahd-stv-100k-series-surge-protective-devices-en-us-163766.pdf(Spec Sheet URL)
- Tech Bulletin URL - SolaHD_STV100K_24L_Technical_Bulletin.pdf(Tech Bulletin URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| Distribution Panels (<1200 A), Branch, Lighting and Control Panels, Factory Automation Installations, Dedicated Industrial Equipment |
| 100,000 amp peak current rating provides all mode protection against severe transients, Low clamping levels for more effective protection, 65 kAIC fault current fusing level provides safety and NEC conformance, LED status and audible alarms, Compact, rugged metal. |
| Low clamping levels for more effective protection |
| 65 kAIC fault current fusing level provides safety and NEC conformance |
| Compact, rugged metal |
| Single phase, 3-wire with ground |
| Red/green LED indicator |
| Parallel connection |
