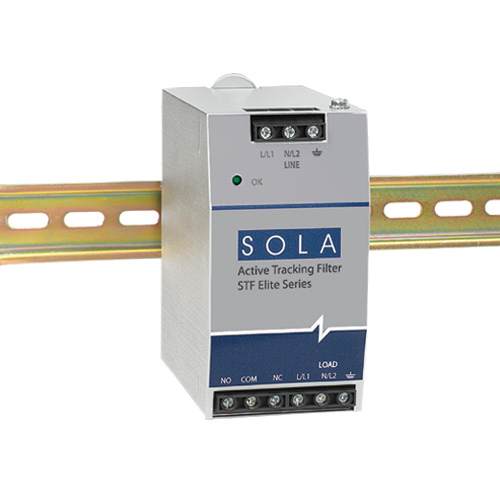

SolaHD STFE Elite Active Tracking Filter, 5 A at 120 VAC, 2 Wires

Surge Filters
430159 MFG #: STFE05010N
SolaHD™
259.76000 / ea
STFE Elite Series combines Active Tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These DIN rail mounted devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation.
QTY
  • Applications
  • Features
Control Panels, Factory Automation Installations, Point of Use Industrial Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools Equipment
Series connected DIN Rail mounted filter, Durable metal mount clip, UL Listed surge current capacity -45,000 Amps, Transient protection in all modes (L-N, L-G, and N-G), Single phase applications up to 20 Amp, Operating temperature from -40 DEG C to +50 DEG C, Screw terminal connections, Reliable and convenient screw clamp connections accept 10-16 AWG wire and meet IP20 specifications for ingress protection, LED status indication, Form C contact for remote monitoring
