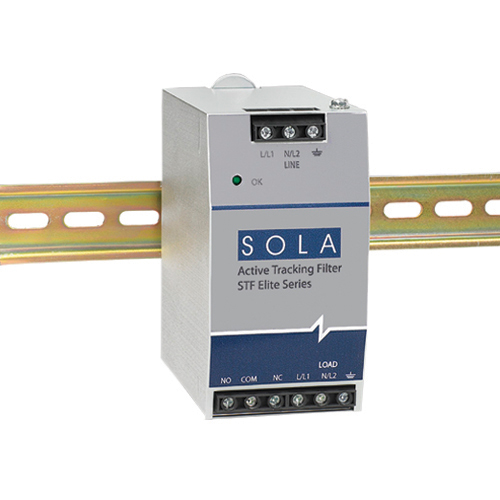

SolaHD STFE Elite Active Tracking Filter, 3 A at 120 VAC, 2 Wires
Custom_Product_Images_Illustration
SolaHD STFE Elite Active Tracking Filter, 3 A at 120 VAC, 2 Wires
SKU484946
MFGR #STFE03010N
Your Cost: $236.95/ea
List: STFE Elite Series combines Active Tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These DIN rail mounted devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation.
STFE Elite Series combines Active Tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These DIN rail mounted devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation.
Application Industrial/Machine Control, Automation Process Control, Material Handling, Packaging Equipment ARRA Compliant N Buy American Compliant N Catalog Number STFE03010N Class Category A Ringwave (6 kV, 200 A, 100 kHz)/Category B Ringwave (6 kV, 500 A, 100 kHz) Connector Screw Terminal Connections, 10-16 AWG, IP20 Country of Origin MX Currency USD Dimensions 4.56 in L x 2.56 in W x 4.88 in H Enclosure Metal Enclosure Type IP20 Environmental Conditions -40 to 50 deg C Operating, 0 to 95% Non-Condensing Relative Humidity EU RoHS Indicator Y Frequency Rating 47-63 Gross Weight Per Pack 1.3500 lb Gross Weight per Pack Metric 0.61 Gross Weight UOM Metric kg Height 2.90 in Height [Metric] 7.3660 cm Indicator Type LED Input 120, Single Phase Length 8.20 in Length [Metric] 20.8280 cm Modes of Protection L-N/L-G/N-G Mounting DIN Rail Mounting Type DIN Rail Peak Surge Current 45000 A Phase 1 Response Time <0.5 ns Normal Mode/< 5 ns Common Mode Series STFE Elite Standard UL (CANADA AND US), UL 508, UL 60950-1, CUL, CSA-C22.2, CE Style DIN Rail Mount Terminal Type Hard Wired Type SDU Series, Direct Current Uninterruptible Power Supply System UNSPSC 43222901 UPC 11 78347202910 UPC 12 783472029105 Width 6.40 in Width [Metric] 16.2560 cm Wire Size 24 AWG Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Bandwidth 100 kHz to 50 MHz Electrical Ratings 3 A at 120 VAC Material Metal Number of Wires 2 Industrial/Machine Control, Automation Process Control, Material Handling, Packaging Equipment Optional interface kit to convert relay contacts signals to DB9 signals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Machine Control, Automation Process Control, Material Handling, Packaging Equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | STFE03010N |
| Class | Category A Ringwave (6 kV, 200 A, 100 kHz)/Category B Ringwave (6 kV, 500 A, 100 kHz) |
| Connector | Screw Terminal Connections, 10-16 AWG, IP20 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.56 in L x 2.56 in W x 4.88 in H |
| Enclosure | Metal |
| Enclosure Type | IP20 |
| Environmental Conditions | -40 to 50 deg C Operating, 0 to 95% Non-Condensing Relative Humidity |
| EU RoHS Indicator | Y |
| Frequency Rating | 47-63 |
| Gross Weight Per Pack | 1.3500 lb |
| Gross Weight per Pack Metric | 0.61 |
| Gross Weight UOM Metric | kg |
| Height | 2.90 in |
| Height [Metric] | 7.3660 cm |
| Indicator Type | LED |
| Input | 120, Single Phase |
| Length | 8.20 in |
| Length [Metric] | 20.8280 cm |
| Modes of Protection | L-N/L-G/N-G |
| Mounting | DIN Rail |
| Mounting Type | DIN Rail |
| Peak Surge Current | 45000 A |
| Phase | 1 |
| Response Time | <0.5 ns Normal Mode/< 5 ns Common Mode |
| Series | STFE Elite |
| Standard | UL (CANADA AND US), UL 508, UL 60950-1, CUL, CSA-C22.2, CE |
| Style | DIN Rail Mount |
| Terminal Type | Hard Wired |
| Type | SDU Series, Direct Current Uninterruptible Power Supply System |
| UNSPSC | 43222901 |
| UPC 11 | 78347202910 |
| UPC 12 | 783472029105 |
| Width | 6.40 in |
| Width [Metric] | 16.2560 cm |
| Wire Size | 24 AWG |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Bandwidth | 100 kHz to 50 MHz |
| Electrical Ratings | 3 A at 120 VAC |
| Material | Metal |
| Number of Wires | 2 |
| Industrial/Machine Control, Automation Process Control, Material Handling, Packaging Equipment |
| Optional interface kit to convert relay contacts signals to DB9 signals |
