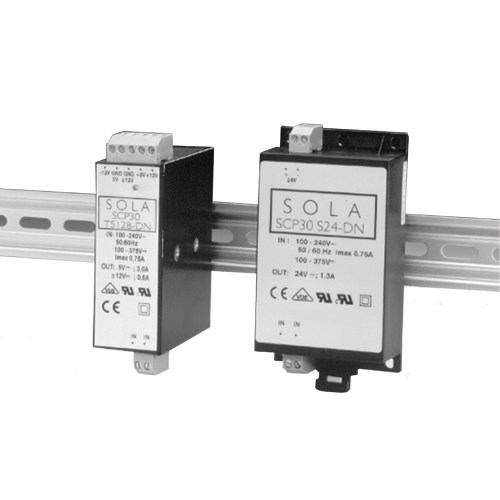

SolaHD SCP Single Output Power Supply, 85 to 264 VAC/100 to 375 VDC Input, 24 VDC Output, 100 W, 2.5 A, DIN Rail Mount
Custom_Product_Images_Illustration
SolaHD SCP Single Output Power Supply, 85 to 264 VAC/100 to 375 VDC Input, 24 VDC Output, 100 W, 2.5 A, DIN Rail Mount
SKU89970
MFGR #SCP30S24BDN
Your Cost: $352.61/ea
These switchers are compact, rugged power supplies designed to power many of your industrial control and instrumentation devices and equipment, with high reliability and tight regulation through the most difficult factory-floor conditions around the globe. "User friendly" applies to these unique power supplies that feature easy-to-install DIN Rail and chassis mounting. Terminations are also easy to access (AC and DC terminations are well separated) and simple to wire. Safety is another aspect where the SCP distinguishes itself. The encapsulated design meets IP20 specifications, and the wide range of voltages will reliably support almost any low-power device in your cabinet or system for years to come.
These switchers are compact, rugged power supplies designed to power many of your industrial control and instrumentation devices and equipment, with high reliability and tight regulation through the most difficult factory-floor conditions around the globe. "User friendly" applies to these unique power supplies that feature easy-to-install DIN Rail and chassis mounting. Terminations are also easy to access (AC and DC terminations are well separated) and simple to wire. Safety is another aspect where the SCP distinguishes itself. The encapsulated design meets IP20 specifications, and the wide range of voltages will reliably support almost any low-power device in your cabinet or system for years to come.
Application Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation ARRA Compliant N Buy American Compliant N Catalog Number SCP30S24BDN Country of Origin DE Currency USD Depth 4.43 in Efficiency 75.00 PCT Enclosure IP20 Environmental Conditions -25 to +65 DEG C Operating Temp EU RoHS Indicator Y Frequency Rating 50/60 Hz Fuse Rating 2.0 A Slow Fuse Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Height 1.50 in Height [Metric] 3.8100 cm Length 5.00 in Length [Metric] 12.7000 cm Material Case Material/Potting: UL94-VO Mounting DIN Rail/Chassis Series SCP Standard UL Recognized Component, ITE, E137632, CE: IEC/EN 60950-1, 2nd Edition Standards RoHS CompliantCE CertifiedITE CertifiedE137632IEC/EN 60950-1IEC/EN 2nd Edition CertifiedUL Listed Type Single Output UNSPSC 39121004 UPC 11 78347215230 UPC 12 783472152308 Voltage Rating 12 V Wattage 30 to 100 W Width 3.30 in Width [Metric] 8.3820 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Amperage Rating 2.5 A Input Voltage 85 to 264 VAC/100 to 375 VDC Mounting Type DIN Rail Output Voltage 24 VDC Power Rating 30 W Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation International approvals for global use, DIN Rail or Chassis Mount, Rugged, encapsulated design to resist environment, IP20 protection. International approvals for global use Rugged, encapsulated design to resist environment IP20 protection M3 screw clamp terminations +/-0.5% regulation on main output 77% efficiency -25 to 65 deg C operating Green LED indicates DC OK 24 V at 1.3 A output 30 - 100 W UL94-VO
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation |
ARRA Compliant | N |
Buy American Compliant | N |
Catalog Number | SCP30S24BDN |
Country of Origin | DE |
Currency | USD |
Depth | 4.43 in |
Efficiency | 75.00 PCT |
Enclosure | IP20 |
Environmental Conditions | -25 to +65 DEG C Operating Temp |
EU RoHS Indicator | Y |
Frequency Rating | 50/60 Hz |
Fuse Rating | 2.0 A Slow Fuse |
Gross Weight Per Pack | 0.2000 lb |
Gross Weight per Pack Metric | 0.09 |
Gross Weight UOM Metric | kg |
Height | 1.50 in |
Height [Metric] | 3.8100 cm |
Length | 5.00 in |
Length [Metric] | 12.7000 cm |
Material | Case Material/Potting: UL94-VO |
Mounting | DIN Rail/Chassis |
Series | SCP |
Standard | UL Recognized Component, ITE, E137632, CE: IEC/EN 60950-1, 2nd Edition |
Standards | RoHS CompliantCE CertifiedITE CertifiedE137632IEC/EN 60950-1IEC/EN 2nd Edition CertifiedUL Listed |
Type | Single Output |
UNSPSC | 39121004 |
UPC 11 | 78347215230 |
UPC 12 | 783472152308 |
Voltage Rating | 12 V |
Wattage | 30 to 100 W |
Width | 3.30 in |
Width [Metric] | 8.3820 cm |
Stock Status | NONSTOCK |
Brand | SolaHD™ |
Manufacturer | Emerson |
Amperage Rating | 2.5 A |
Input Voltage | 85 to 264 VAC/100 to 375 VDC |
Mounting Type | DIN Rail |
Output Voltage | 24 VDC |
Power Rating | 30 W |
Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation |
International approvals for global use, DIN Rail or Chassis Mount, Rugged, encapsulated design to resist environment, IP20 protection. |
International approvals for global use |
Rugged, encapsulated design to resist environment |
IP20 protection |
M3 screw clamp terminations |
+/-0.5% regulation on main output |
77% efficiency |
-25 to 65 deg C operating |
Green LED indicates DC OK |
24 V at 1.3 A output |
30 - 100 W |
UL94-VO |
