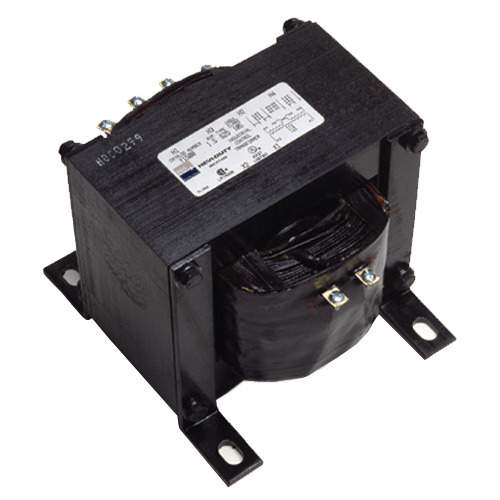

SolaHD SBE Open Style Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 3 kVA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD SBE Open Style Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 3 kVA, 50/60 Hz
SKU90008
MFGR #Y3000
Your Cost: $990.86/ea
List: The open style SBE Series provides voltage regulation in excess of NEMA recommendations without exceeding 55o crise. These higher power capacity transformers are the best choice when 80% or more of the load components are electromagnetic devices.
The open style SBE Series provides voltage regulation in excess of NEMA recommendations without exceeding 55o crise. These higher power capacity transformers are the best choice when 80% or more of the load components are electromagnetic devices.
Application Best choice when 80% or more of the load components are electromagnetic ARRA Compliant Y Buy American Compliant Y Catalog Number Y3000 Country of Origin US Currency USD EU RoHS Indicator Y Gross Weight Per Pack 72.5500 lb Gross Weight per Pack Metric 32.91 Gross Weight UOM Metric kg Height 8.70 in Height [Metric] 22.0980 cm KVA Rating 3 Length 13.90 in Length [Metric] 35.3060 cm Mounting Mtg Width 5.75, Mtg Depth 7.75, Slot Size .44 x .69 Number Of Phases 1 Standard UL Listed: E77014, UL 506; CSA Certified: LR-14328-4, CSA C22.2 No. 66. RoHS Compliant Standards ANSI Standard, CSA C22.2 No 66 Certified, UL 506 Listed, RoHS Compliant Temperature Rating 55 DEG C Temperature Rise Under Full Load in Type SBE Open Style, Copper Wound UNSPSC 39121026 UPC 11 78347256128 UPC 12 783472561285 Wattage 2,000 W Width 9.90 in Width [Metric] 25.1460 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Primary Voltage 240 x 480 Volt Primary Secondary Voltage 120 Volt Secondary 60 Hz in Best choice when 80% or more of the load components are electromagnetic High Quality Silicon Steel Core, Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC. Interleaved copper windings reduce I2R losses and maximize efficiency Copper wound Isolation minimizes load disturbances caused by the SCR drive Taps on all units for adjustments to incoming source voltage Full capacity secondary neutral as required by the NEC High quality silicon steel core 0.44 x 0.69 in slot 240x480, 230x460, 220x440 VAC primary volt 120/115/110 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Best choice when 80% or more of the load components are electromagnetic |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | Y3000 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 72.5500 lb |
| Gross Weight per Pack Metric | 32.91 |
| Gross Weight UOM Metric | kg |
| Height | 8.70 in |
| Height [Metric] | 22.0980 cm |
| KVA Rating | 3 |
| Length | 13.90 in |
| Length [Metric] | 35.3060 cm |
| Mounting | Mtg Width 5.75, Mtg Depth 7.75, Slot Size .44 x .69 |
| Number Of Phases | 1 |
| Standard | UL Listed: E77014, UL 506; CSA Certified: LR-14328-4, CSA C22.2 No. 66. RoHS Compliant |
| Standards | ANSI Standard, CSA C22.2 No 66 Certified, UL 506 Listed, RoHS Compliant |
| Temperature Rating | 55 DEG C Temperature Rise Under Full Load in |
| Type | SBE Open Style, Copper Wound |
| UNSPSC | 39121026 |
| UPC 11 | 78347256128 |
| UPC 12 | 783472561285 |
| Wattage | 2,000 W |
| Width | 9.90 in |
| Width [Metric] | 25.1460 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Primary Voltage | 240 x 480 Volt Primary |
| Secondary Voltage | 120 Volt Secondary 60 Hz in |
| Best choice when 80% or more of the load components are electromagnetic |
| High Quality Silicon Steel Core, Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC. |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| Copper wound |
| Isolation minimizes load disturbances caused by the SCR drive |
| Taps on all units for adjustments to incoming source voltage |
| Full capacity secondary neutral as required by the NEC |
| High quality silicon steel core |
| 0.44 x 0.69 in slot |
| 240x480, 230x460, 220x440 VAC primary volt |
| 120/115/110 VAC secondary volt |
