SolaHD™

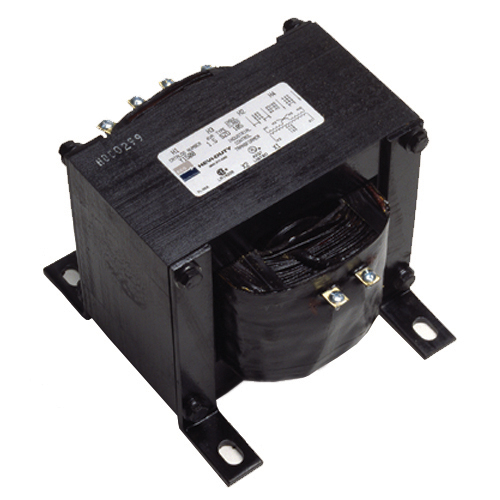

SolaHD SBE Open Style Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 2 kVA, 50/60 Hz, 1 Phase
Custom_Product_Images_Illustration
SolaHD™
SolaHD SBE Open Style Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 2 kVA, 50/60 Hz, 1 Phase
SKU59150
MFGR #Y2000
$/ea
The open style SBE Series provides voltage regulation in excess of NEMA recommendations without exceeding 55o crise. These higher power capacity transformers are the best choice when 80% or more of the load componets are electromagnetic devices.
The open style SBE Series provides voltage regulation in excess of NEMA recommendations without exceeding 55o crise. These higher power capacity transformers are the best choice when 80% or more of the load componets are electromagnetic devices.
Application Best choice when 80% or more of the load components are electromagnetic ARRA Compliant Y Buy American Compliant Y Catalog Number Y2000 Connection Type Screw Country of Origin US Currency USD Dimensions 8-3/4 in L x 6-3/4 in W x 6-1/4 in H Enclosure Type Open EU RoHS Indicator Y Gross Weight Per Pack 56.3000 lb Gross Weight per Pack Metric 25.54 Gross Weight UOM Metric kg Height 6.25 in Height [Metric] 18.2880 cm KVA Rating 2 KVA Length 8.75 in Length [Metric] 19.3040 cm Mounting Mtg Width 5.75, Mtg Depth 6.38, Slot Size .44 x .69 IN Number Of Phases 1 Series SBE Standard CSA Certified: LR-14328-4, CSA C22.2 No. 66. RoHS Compliant;UL Listed: E77014, UL 506 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E77014CSA C22.2 No. 66 File No. LR14328-4IEC 61558-1IEC 61558-2-2NEMA ApprovedANSI SpecifiedNMTBA/JIC Standard Temperature Rating 55 °C Type SBE Open Style, Copper Wound UNSPSC 39121026 UPC 11 78347256127 UPC 12 783472561278 Wattage 1,500 W Width 12.00 in Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Phase 1 pH Power Rating 2 kVA Primary Voltage 240 480 V Secondary Voltage 120 VAC Best choice when 80% or more of the load components are electromagnetic High Quality Silicon Steel Core, Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC. Interleaved copper windings reduce I2R losses and maximize efficiency Copper wound Isolation minimizes load disturbances caused by the SCR drive Taps on all units for adjustments to incoming source voltage Full capacity secondary neutral as required by the NEC High quality silicon steel core 0.44 x 0.69 in slot 240x480, 230x460, 220x440 VAC primary volt 120/115/110 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Best choice when 80% or more of the load components are electromagnetic |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | Y2000 |
| Connection Type | Screw |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8-3/4 in L x 6-3/4 in W x 6-1/4 in H |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 56.3000 lb |
| Gross Weight per Pack Metric | 25.54 |
| Gross Weight UOM Metric | kg |
| Height | 6.25 in |
| Height [Metric] | 18.2880 cm |
| KVA Rating | 2 KVA |
| Length | 8.75 in |
| Length [Metric] | 19.3040 cm |
| Mounting | Mtg Width 5.75, Mtg Depth 6.38, Slot Size .44 x .69 IN |
| Number Of Phases | 1 |
| Series | SBE |
| Standard | CSA Certified: LR-14328-4, CSA C22.2 No. 66. RoHS Compliant;UL Listed: E77014, UL 506 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E77014CSA C22.2 No. 66 File No. LR14328-4IEC 61558-1IEC 61558-2-2NEMA ApprovedANSI SpecifiedNMTBA/JIC Standard |
| Temperature Rating | 55 °C |
| Type | SBE Open Style, Copper Wound |
| UNSPSC | 39121026 |
| UPC 11 | 78347256127 |
| UPC 12 | 783472561278 |
| Wattage | 1,500 W |
| Width | 12.00 in |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 2 kVA |
| Primary Voltage | 240 480 V |
| Secondary Voltage | 120 VAC |
| Best choice when 80% or more of the load components are electromagnetic |
| High Quality Silicon Steel Core, Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC. |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| Copper wound |
| Isolation minimizes load disturbances caused by the SCR drive |
| Taps on all units for adjustments to incoming source voltage |
| Full capacity secondary neutral as required by the NEC |
| High quality silicon steel core |
| 0.44 x 0.69 in slot |
| 240x480, 230x460, 220x440 VAC primary volt |
| 120/115/110 VAC secondary volt |
