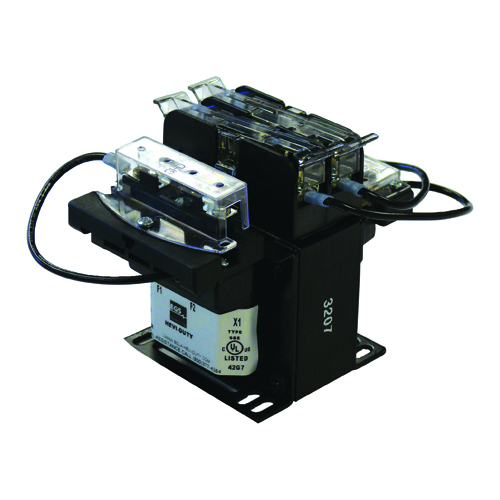

SolaHD SBE Encapsulated Open Style Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1000 VA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD SBE Encapsulated Open Style Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1000 VA, 50/60 Hz
SKU385320
MFGR #E1000WA
Your Cost: $330.78/ea
List: The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
Application Industrial ARRA Compliant Y Buy American Compliant Y Catalog Number E1000WA Connection Type Lead Wire Country of Origin US Currency USD Dimensions 6.93 in H x 6.38 in W x 7.01 in D Enclosure Type IP20 EU RoHS Indicator Y Gross Weight Per Pack 34.8000 lb Gross Weight per Pack Metric 15.78 Gross Weight UOM Metric kg Height 13.00 in Height [Metric] 33.0200 cm KVA Rating 1 Length 15.40 in Length [Metric] 39.1160 cm Mounting Heavy Gauge Steel Mounting Plate Mounting Type Panel Number Of Phases 1 Series SBE Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant Standards ARRA, Buy American Act, RoHS Compliant, cULus File No. E77014, UL 506, CSA C22.2 No. 66 Temperature Rating 131 °F Type Type 3AG Encapsulated UNSPSC 39121026 UPC 11 78347200232 UPC 12 783472002320 Wattage 750 W Width 9.20 in Width [Metric] 23.3680 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Phase 1 Power Rating 1 kVA Primary Voltage 240/480 VAC Secondary Voltage 120 VAC Industrial 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Factory installed primary fuse holder class CC and secondary fuse holder (glass or ceramic (Type 3AG, 1/4"x1-1/4" fuse type) Interleaved copper windings reduce I2R losses and maximize efficiency Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants Heavy gauge steel mounting plate Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included) Factory installed primary fuse holder class CC and secondary fuse holder 0.31 x 0.85 S1/0.31 x 0.85 S2 in slot 55 deg C rise, 105 deg C insulation system to minimize heat Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity 220 x 440, 230 x 460, 240 x 480 VAC primary volt 110/115/120 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | E1000WA |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.93 in H x 6.38 in W x 7.01 in D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 34.8000 lb |
| Gross Weight per Pack Metric | 15.78 |
| Gross Weight UOM Metric | kg |
| Height | 13.00 in |
| Height [Metric] | 33.0200 cm |
| KVA Rating | 1 |
| Length | 15.40 in |
| Length [Metric] | 39.1160 cm |
| Mounting | Heavy Gauge Steel Mounting Plate |
| Mounting Type | Panel |
| Number Of Phases | 1 |
| Series | SBE |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Standards | ARRA, Buy American Act, RoHS Compliant, cULus File No. E77014, UL 506, CSA C22.2 No. 66 |
| Temperature Rating | 131 °F |
| Type | Type 3AG Encapsulated |
| UNSPSC | 39121026 |
| UPC 11 | 78347200232 |
| UPC 12 | 783472002320 |
| Wattage | 750 W |
| Width | 9.20 in |
| Width [Metric] | 23.3680 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 1 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120 VAC |
| Industrial |
| 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Factory installed primary fuse holder class CC and secondary fuse holder (glass or ceramic (Type 3AG, 1/4"x1-1/4" fuse type) |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants |
| Heavy gauge steel mounting plate |
| Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included) |
| Factory installed primary fuse holder class CC and secondary fuse holder |
| 0.31 x 0.85 S1/0.31 x 0.85 S2 in slot |
| 55 deg C rise, 105 deg C insulation system to minimize heat |
| Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| 220 x 440, 230 x 460, 240 x 480 VAC primary volt |
| 110/115/120 VAC secondary volt |
