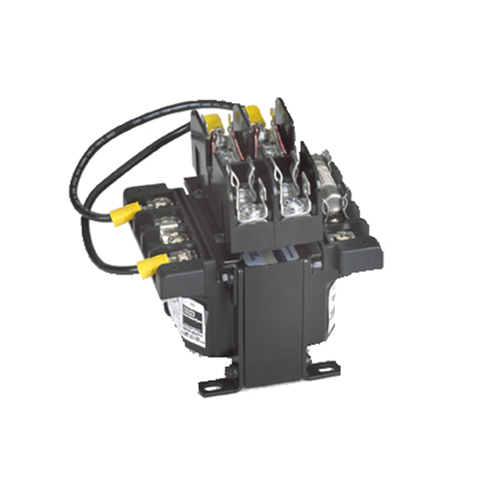

SolaHD SBE Encapsulated Open Style Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 0.35 kVA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD SBE Encapsulated Open Style Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 0.35 kVA, 50/60 Hz
SKU48968
MFGR #E350E
Your Cost: $187.36/ea
List: The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
Application Industrial ARRA Compliant N Buy American Compliant Y Catalog Number E350E Connection Type Lead Wire Country of Origin US Currency USD Dimensions 4.66 in L x 5.25 in W x 4.53 in H Enclosure Type IP20 EU RoHS Indicator Y Gross Weight Per Pack 14.5000 lb Gross Weight per Pack Metric 6.58 Gross Weight UOM Metric kg Height 7.50 in Height [Metric] 19.0500 cm KVA Rating 0.35 Length 9.60 in Length [Metric] 24.3840 cm Mounting Heavy Gauge Steel Mounting Plate Mounting Type Surface Number Of Phases 1 Series SBE Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant Standards Buy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66ANSI C89.1 Temperature Rating 131 °F Type SBE Encapsulated Series Transformers UNSPSC 39121026 UPC 11 78347253143 UPC 12 783472531431 Wattage 300 W Width 6.70 in Width [Metric] 17.0180 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 pH Power Rating 0.35 kVA Primary Voltage 120 x 240 Volt Primary VAC Secondary Voltage 24 Volt Secondary VAC Industrial 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32" x 1-1/2" cartridges (fuses not included). Interleaved copper windings reduce I2R losses and maximize efficiency Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity Heavy gauge steel mounting plate Mounting dimensions are compatible with similar control transformers 131 deg F rise, 105 deg C insulation system to minimize heat Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity 120 x 240 VAC primary volt 24 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | N |
| Buy American Compliant | Y |
| Catalog Number | E350E |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.66 in L x 5.25 in W x 4.53 in H |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 14.5000 lb |
| Gross Weight per Pack Metric | 6.58 |
| Gross Weight UOM Metric | kg |
| Height | 7.50 in |
| Height [Metric] | 19.0500 cm |
| KVA Rating | 0.35 |
| Length | 9.60 in |
| Length [Metric] | 24.3840 cm |
| Mounting | Heavy Gauge Steel Mounting Plate |
| Mounting Type | Surface |
| Number Of Phases | 1 |
| Series | SBE |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Standards | Buy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66ANSI C89.1 |
| Temperature Rating | 131 °F |
| Type | SBE Encapsulated Series Transformers |
| UNSPSC | 39121026 |
| UPC 11 | 78347253143 |
| UPC 12 | 783472531431 |
| Wattage | 300 W |
| Width | 6.70 in |
| Width [Metric] | 17.0180 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 pH |
| Power Rating | 0.35 kVA |
| Primary Voltage | 120 x 240 Volt Primary VAC |
| Secondary Voltage | 24 Volt Secondary VAC |
| Industrial |
| 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32" x 1-1/2" cartridges (fuses not included). |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants |
| Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability |
| Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| Heavy gauge steel mounting plate |
| Mounting dimensions are compatible with similar control transformers |
| 131 deg F rise, 105 deg C insulation system to minimize heat |
| Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges |
| Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| 120 x 240 VAC primary volt |
| 24 VAC secondary volt |
