SolaHD™

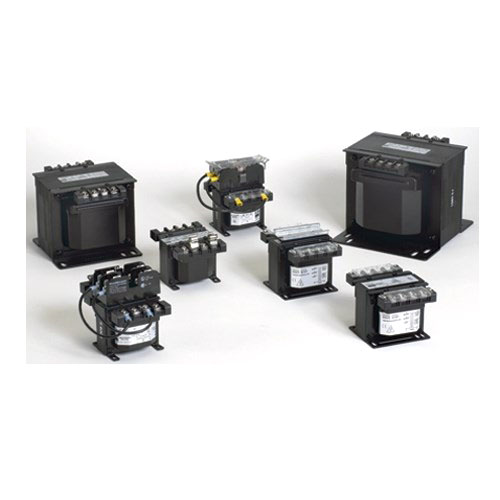

SolaHD SBE Encapsulated Industrial Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 0.5 kVA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD SBE Encapsulated Industrial Control Transformer, 120/240 VAC Primary, 24 VAC Secondary, 0.5 kVA, 50/60 Hz
SKU978098
MFGR #E500EWB
Your Cost: $285.83/ea
List: The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
ARRA Compliant Y Buy American Compliant Y Catalog Number E500EWB Connection Type Lead Wire Country of Origin US Currency USD Dimensions 5.99 in H x 5.25 in W x 5.75 in D Enclosure Type IP20 EU RoHS Indicator Y Gross Weight Per Pack 873.0000 lb Gross Weight per Pack Metric 395.99 Gross Weight UOM Metric kg Mounting Type Panel Series SBE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66 Temperature Rating 131 °F Type Encapsulated Midget UNSPSC 39121026 UPC 11 78347200260 UPC 12 783472002603 Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Phase 1 pH Power Rating 0.5 kVA Primary Voltage 120/240 VAC Secondary Voltage 24 VAC Interleaved copper windings reduce I2R losses and maximize efficiency Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants Heavy gauge steel mounting plate Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity Heavy gauge steel mounting plate Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included) Factory installed primary fuse holder class CC, secondary fuse holder (midget cartridge, 13/32 x 1-1/2 in fuse)
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | E500EWB |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.99 in H x 5.25 in W x 5.75 in D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 873.0000 lb |
| Gross Weight per Pack Metric | 395.99 |
| Gross Weight UOM Metric | kg |
| Mounting Type | Panel |
| Series | SBE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66 |
| Temperature Rating | 131 °F |
| Type | Encapsulated Midget |
| UNSPSC | 39121026 |
| UPC 11 | 78347200260 |
| UPC 12 | 783472002603 |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 0.5 kVA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 24 VAC |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants |
| Heavy gauge steel mounting plate |
| Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| Heavy gauge steel mounting plate |
| Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included) |
| Factory installed primary fuse holder class CC, secondary fuse holder (midget cartridge, 13/32 x 1-1/2 in fuse) |
